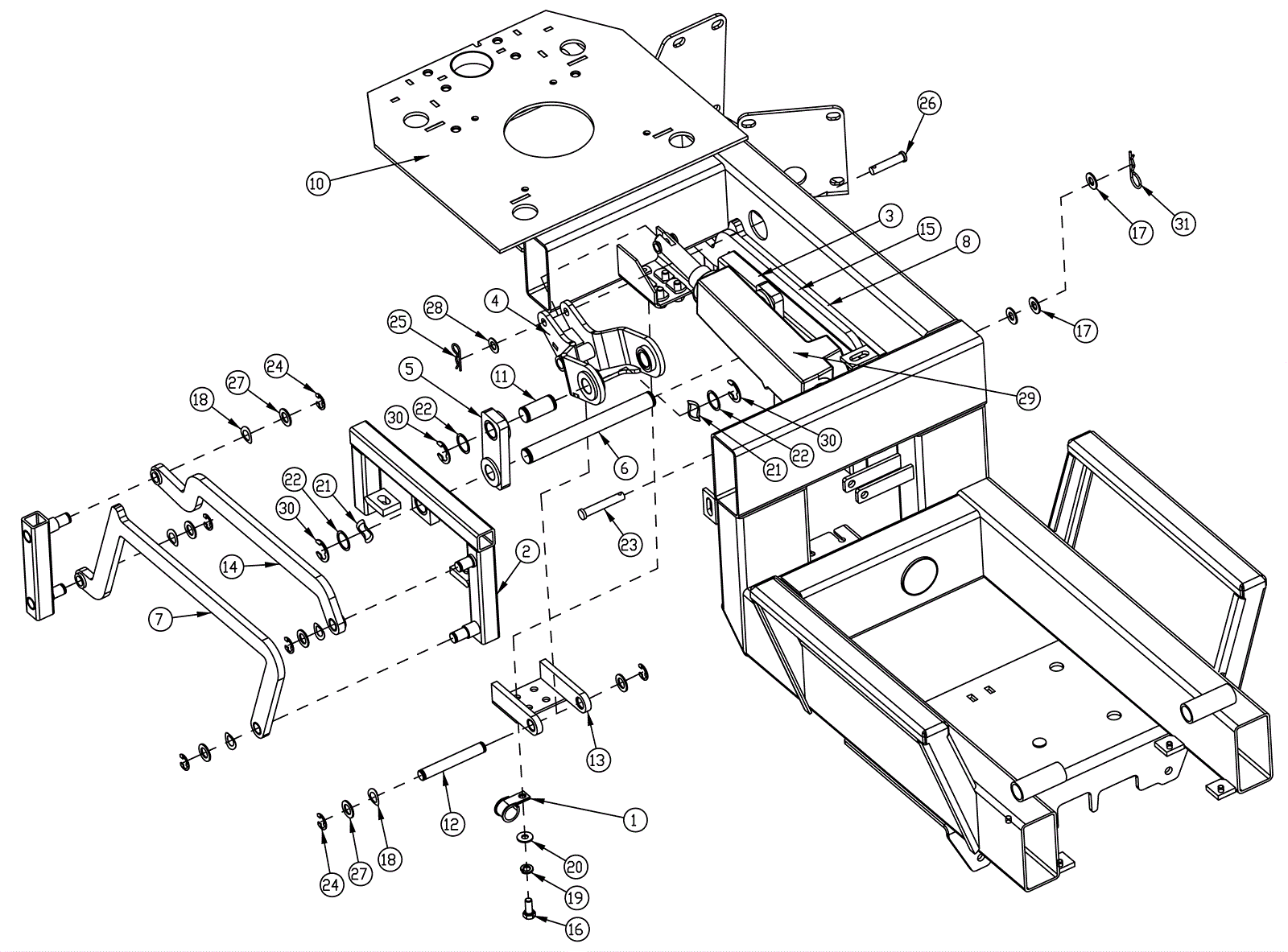

ERIDE 32PLUS Deck Link Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-1531 Clamp $4.64 1 (located at front left hole of actuator attachment weldment) usually ships 1-5 days
2 274-7623 WELD-LIFT W/BUSHING LEFT SCV 24/26 $165.73 1 usually ships 1-5 days
3 274-7744 WELD-LIFT W/BUSHING RIGHT SCV 24/26 $156.05 1 usually ships 1-5 days
4 174-3731 Actuator crank assembly $221.85 1 usually ships 4-14 days
5 274-3537 ACTUATOR LIFT LINK ASSY $28.05 2 usually ships 1-5 days
6 274-2601 SHAFT - LINK ATTACHMENT $13.82 1 usually ships 1-5 days
7 274-5947 LOWER LINK ASSY., LEFT $112.50 1 usually ships 1-5 days
8 274-5948 LOWER LINK ASSY., RIGHT $65.45 1 usually ships 1-5 days
10 174-3730 Main frame $1,201.42 1 (some sections of main frame are hidden to provide better clarity) usually ships 4-14 days
11 174-8711 Link attachment shaft $6.00 2 usually ships 1-5 days
12 174-8712 Crank pivot shaft $14.03 1 usually ships 1-5 days
13 174-8873 Actuator weldment assembly $55.31 1 usually ships 1-5 days
14 174-8717 Left upper link assembly $82.40 1 usually ships 1-5 days
15 174-8718 Right upper link assembly $56.28 1 usually ships 1-5 days
16 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 4 usually ships 1-5 days
17 999-0120 Washer 3/8 SAE flat $0.99 3 one washer located on each side of actuator rear mounting post) ships same day
18 174-5159 Washer 33/64 x 1/64 wave $0.99 9 usually ships 4-14 days
19 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
20 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
21 174-8577 Wave washer $2.63 4 usually ships 1-5 days
22 999-9114 Washer 3/4 flat stainless steel $1.58 7 ships same day
23 174-8345 Clevis pin 3/8 x 2 1/4 $1.04 1 usually ships 4-14 days
24 174-0178 1/2 inch external retaining ring $0.99 10 usually ships 4-14 days
25 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
26 174-3732 Clevis pin 3/8 x 1 3/4 inch $1.99 1 usually ships 4-14 days
27 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 10 usually ships 4-14 days
28 174-3203 Washer 13/32 x 1/32 flat stainless steel $0.86 1 ships same day
29 274-9368 ACTUATOR ASY 50mm 4000N 24/36VDC $593.05 1 usually ships 4-14 days
30 174-5728 Retaining ring $1.06 6 usually ships 4-14 days
31 174-0200 Cotter pin $1.20 1 usually ships 4-14 days
N/S 174-8695 Snubbing washer $6.37 2 usually ships 1-5 days
