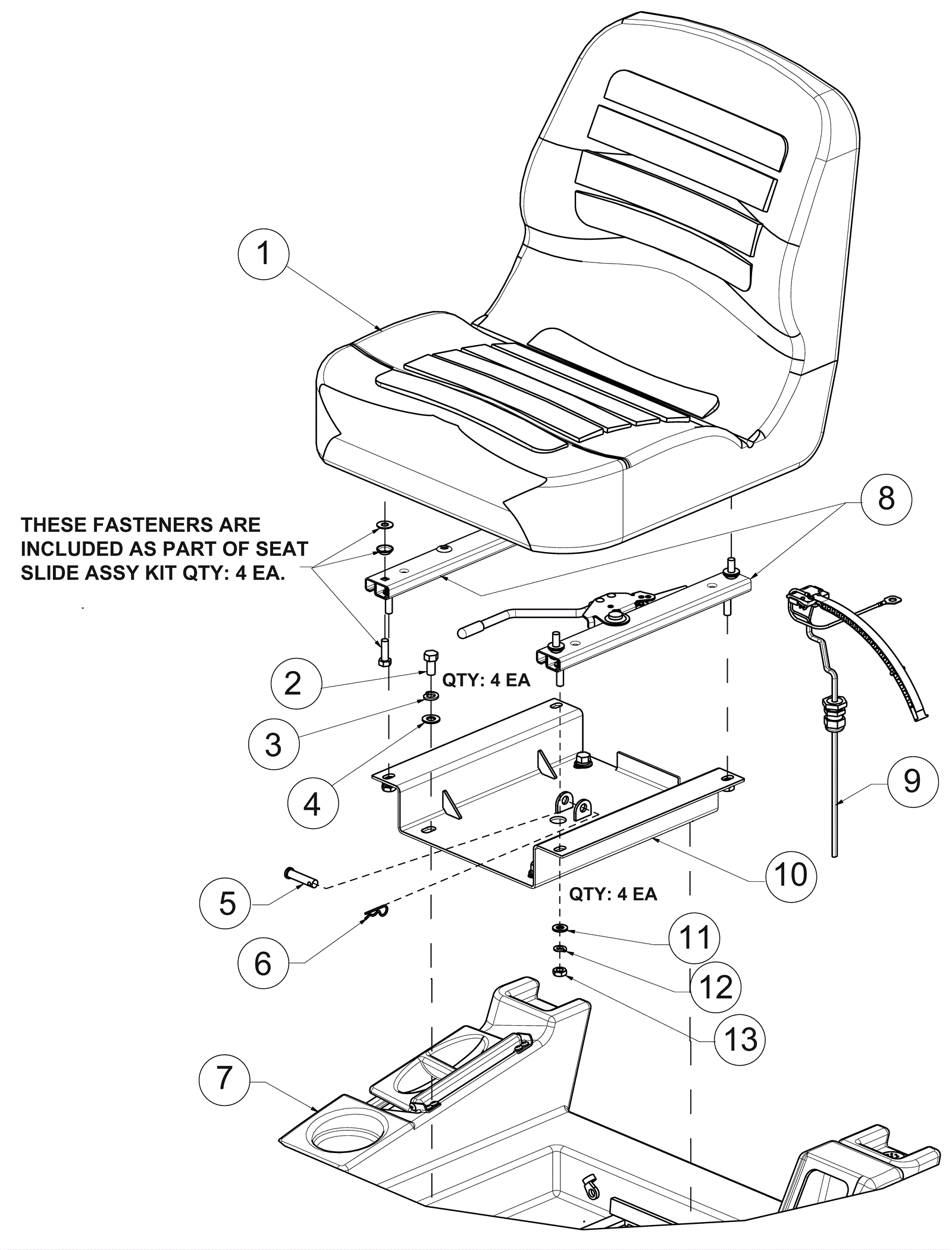

ERIDE 32PLUS Seat Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8750 Seat assembly $256.81 1 usually ships 1-5 days
2 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 4 ships same day
3 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
4 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
5 174-1264 Clevis pin $3.04 1 usually ships 1-5 days
6 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
7 374-0235 SOLUTION TANK ASSY. - E RIDE 2832 $3,149.33 1 usually ships 1-5 days
8 174-8751 Slide kit assembly $109.15 1 usually ships 1-5 days
9 174-8752 Seat switch $79.23 1 usually ships 1-5 days
10 174-8756 Seat bracket weldment $112.76 1 usually ships 1-5 days
11 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
12 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
13 999-0069 Nut 5/16-18 hex $0.99 4 ships same day
