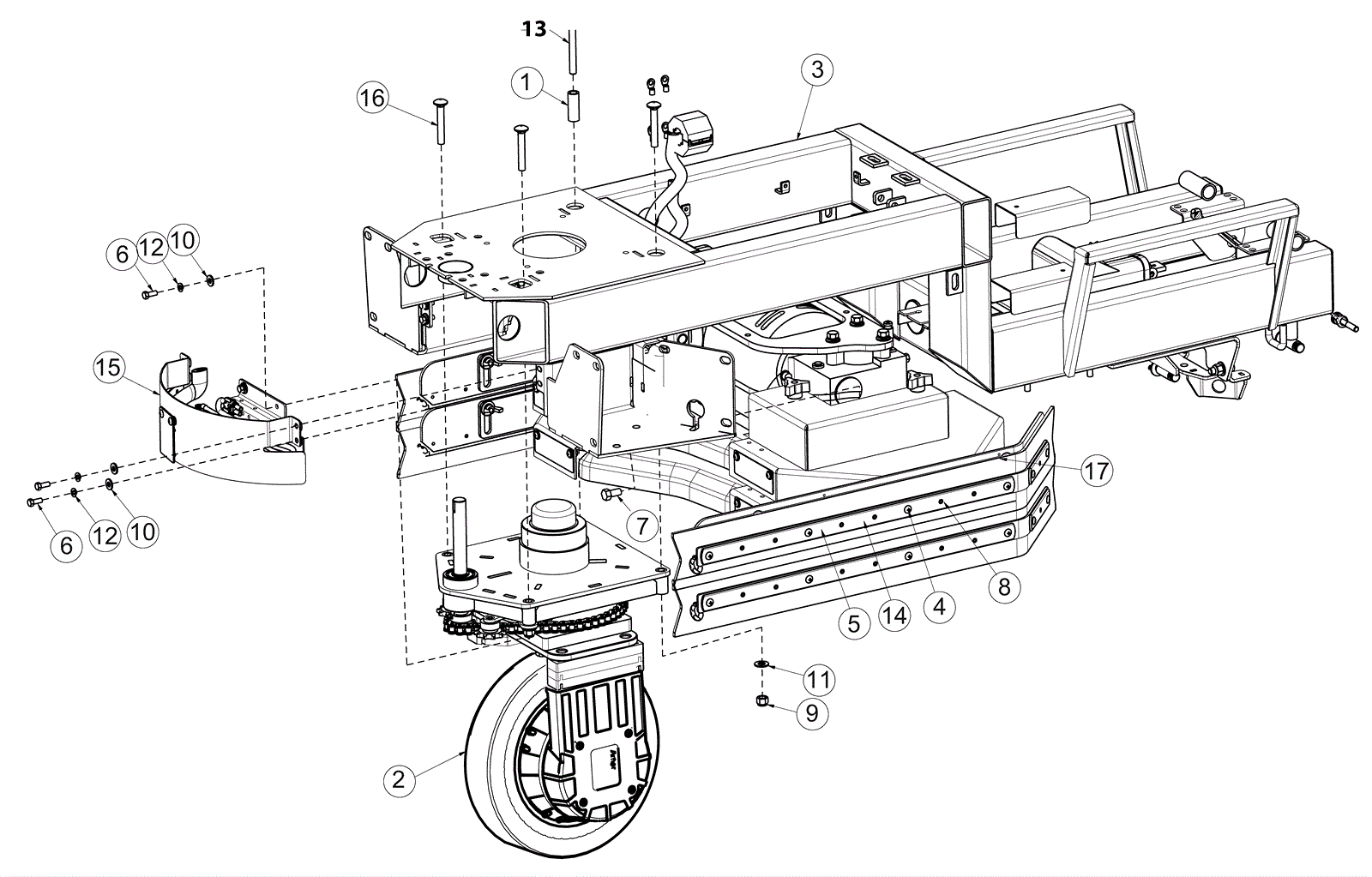

ERIDE 28PLUS Mainframe Assembly-4

#PartDescriptionPriceReqNotesAvailability
1 274-0611 BUSHING-.375 X .625 X .750 ZINC $4.88 1 usually ships 1-5 days
2 374-0310 FRONT DRIVE ASSY - E RIDE 2832 $4,658.96 1 usually ships 1-5 days
3 174-3730 Main frame $1,201.42 1 usually ships 4-14 days
4 174-8681 Horn bracket $9.57 1 usually ships 1-5 days
5 999-0382 Screw 6-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
6 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 6 usually ships 1-5 days
7 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 1 ships same day
8 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 2 ships same day
9 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 7 ships same day
10 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
11 999-0120 Washer 3/8 SAE flat $0.99 8 ships same day
12 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
13 999-0796 Bolt 3/8-16 x 3 3/4 hex head stainless steel $2.32 1 ships same day
14 174-8682 Back up alarm $56.91 1 usually ships 4-14 days
15 274-8939 FRONT MOTOR CABLE ASSY- ER2832 $399.17 1 usually ships 1-5 days
16 999-0894 Screw 3/8-16 x 2 1/2 carriage head stainless steel $3.61 3 ships same day
17a 174-8525 Left side squeegee wiper assembly $236.93 1 (cylindrical) usually ships 4-14 days
17b 174-8159 Side squeegee wipe assembly $172.80 1 (disk) usually ships 4-14 days
