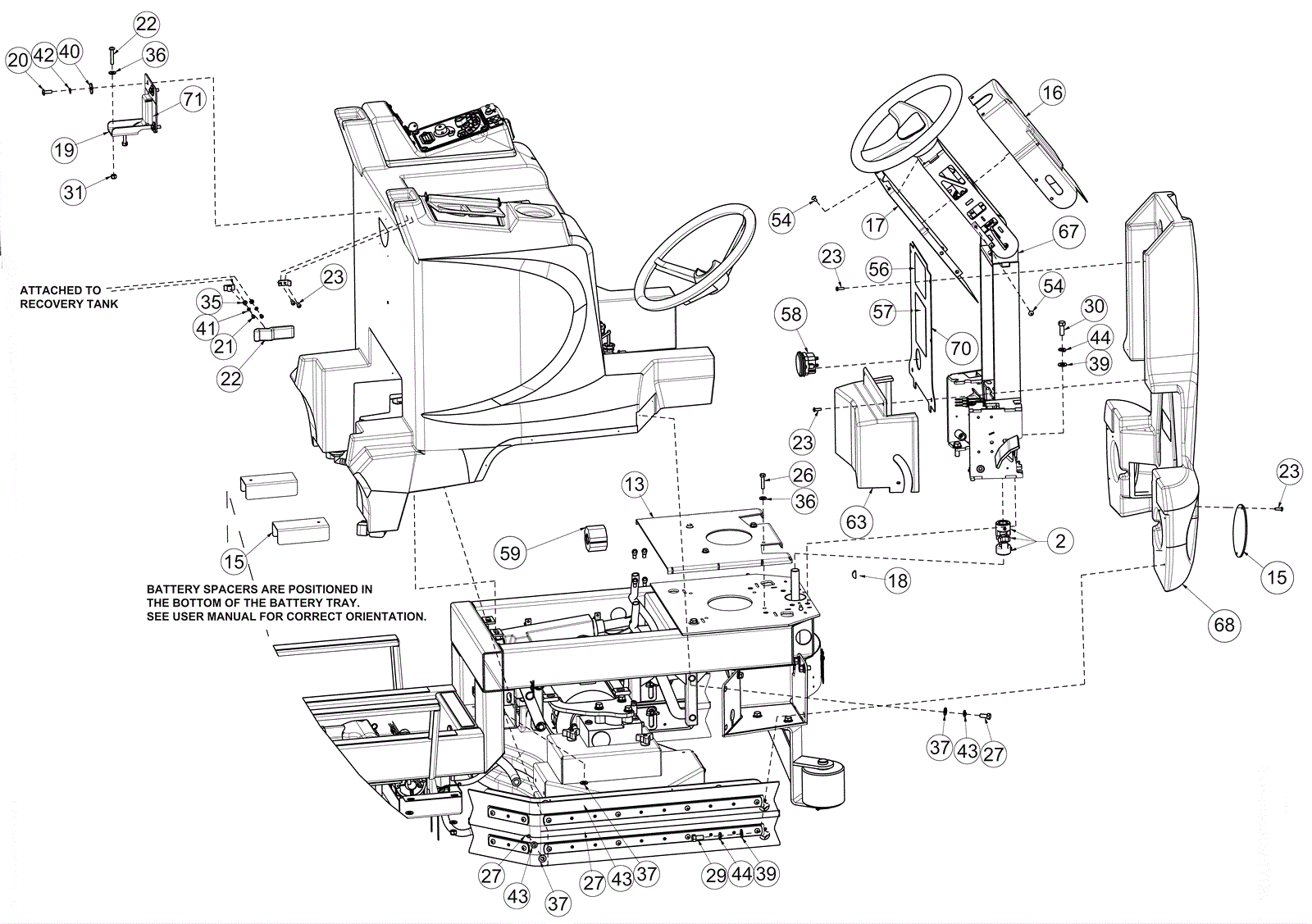

ERIDE 28PLUS Mainframe Assembly-3

#PartDescriptionPriceReqNotesAvailability
2 174-8090 Coupling $50.99 1 usually ships 1-5 days
13 274-4872 FLOOR PANEL $4.33 1 usually ships 1-5 days
15 174-8800 U channel spacer bracket $6.92 2 usually ships 1-5 days
16 174-8680 Top steering cover $48.98 1 usually ships 1-5 days
17 174-6548 Bottom steering cover $48.80 2 usually ships 1-5 days
18 174-2748 Woodruff key 3/16 x 3/4 $1.38 2 ships same day
19 174-3728 Battery cable mount bracket Call for price 2 usually ships 4-14 days
20 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
21 999-0093 Screw 8-32 x 3/8 flat head slotted zinc plated $0.99 4 ships same day
22 174-3200 Latch $38.72 2 usually ships 4-14 days
23 174-2289 Screw 10 x 5/8 hi/lo $1.90 10 usually ships 4-14 days
26 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
27 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 12 usually ships 1-5 days
29 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 7 ships same day
30 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 6 ships same day
31 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
35 999-0412 Washer #8 SAE flat $0.99 4 ships same day
36 999-0016 Washer 1/4 flat plain finish $0.99 13 ships same day
37 999-0024 Washer 5/16 flat stainless steel $1.34 20 ships same day
39 999-0120 Washer 3/8 SAE flat $0.99 27 ships same day
40 174-0536 Washer 1/4 $0.97 4 usually ships 4-14 days
41 174-5406 Washer 8 helical $0.97 4 usually ships 4-14 days
42 999-0060 Washer 1/4 split lock plain finish $0.99 14 ships same day
43 999-0028 Washer 5/16 split lock plain finish $0.99 16 ships same day
44 999-0034 Washer 3/8 split lock plain finish $1.82 16 ships same day
54 174-6202 Screw 10-24 x .37 $0.97 6 usually ships 1-5 days
56 174-8699 Tank latch warning label $5.78 1 usually ships 1-5 days
57 174-8700 Diagnostics codes label $5.46 1 usually ships 1-5 days
58 174-6297 Hour meter $45.05 1 usually ships 4-14 days
59 274-6025 FERRITE-BEAD CLAMP ON $35.10 1 usually ships 1-5 days
63 174-8702 Bottom steering column cover $66.67 1 usually ships 1-5 days
67 174-8686 Steering assembly $1,772.20 1 usually ships 1-5 days
68 174-3729 Front bumper $113.63 1 usually ships 4-14 days
70 174-8704 Top steering column rear cover $36.20 1 usually ships 1-5 days
71 174-3726 Battery cable mount cover $1.03 1 usually ships 4-14 days
