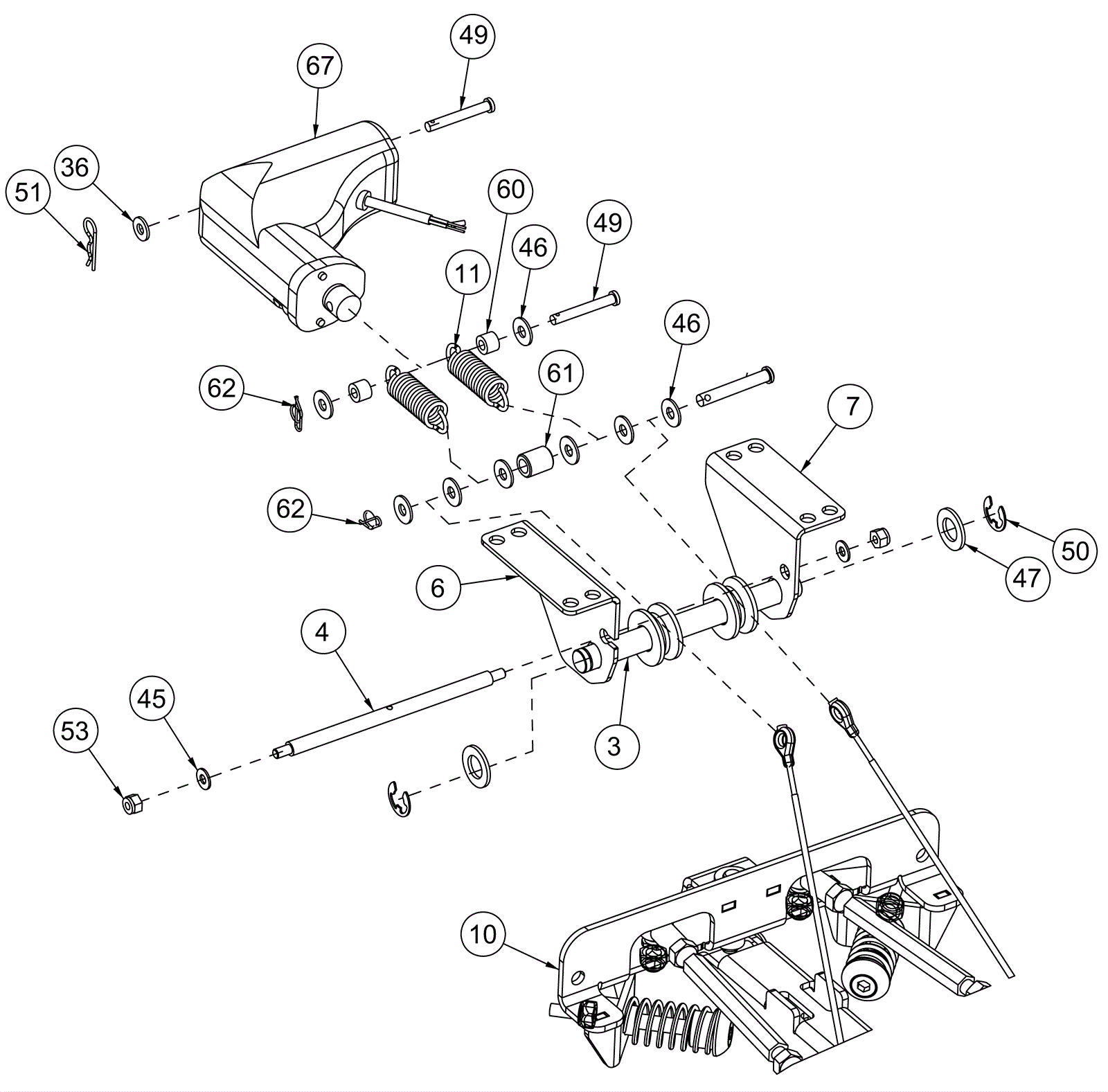

ERIDE 32PLUS Mainframe Assembly-2

#PartDescriptionPriceReqNotesAvailability
3 274-3537 ACTUATOR LIFT LINK ASSY $28.05 2 usually ships 1-5 days
4 274-2601 SHAFT - LINK ATTACHMENT $13.82 1 usually ships 1-5 days
6 174-3721 Left hand bracket $16.89 1 usually ships 4-14 days
7 174-3722 Right hand bracket $16.89 1 usually ships 4-14 days
10 174-3724 Rear squeegee mechanism $768.45 1 usually ships 4-14 days
11a 174-8883 28 inch disk scrubdeck assembly $3,286.17 1 usually ships 1-5 days
11b 174-3727 32 inch disk scrubdeck assembly $3,658.17 1 usually ships 4-14 days
36 999-0016 Washer 1/4 flat plain finish $0.99 13 ships same day
45 174-6341 Washer #8 external lock $0.97 2 usually ships 1-5 days
46 999-0024 Washer 5/16 flat stainless steel $1.34 5 ships same day
47 174-8577 Wave washer $2.63 4 usually ships 1-5 days
49 174-8151 Clevis pin $1.96 1 usually ships 1-5 days
50 174-0178 1/2 inch external retaining ring $0.99 10 usually ships 4-14 days
51 174-0201 Cotter pin $1.20 2 usually ships 4-14 days
53 174-3203 Washer 13/32 x 1/32 flat stainless steel $0.86 1 ships same day
60 174-5728 Retaining ring $1.06 6 usually ships 4-14 days
61 174-0200 Cotter pin $1.20 1 usually ships 4-14 days
62 274-7096 Solution extension $33.26 2 usually ships 1-5 days
67 174-8686 Steering assembly $1,772.20 1 usually ships 1-5 days
N/S 999-9114 Washer 3/4 flat stainless steel $1.58 7 ships same day
