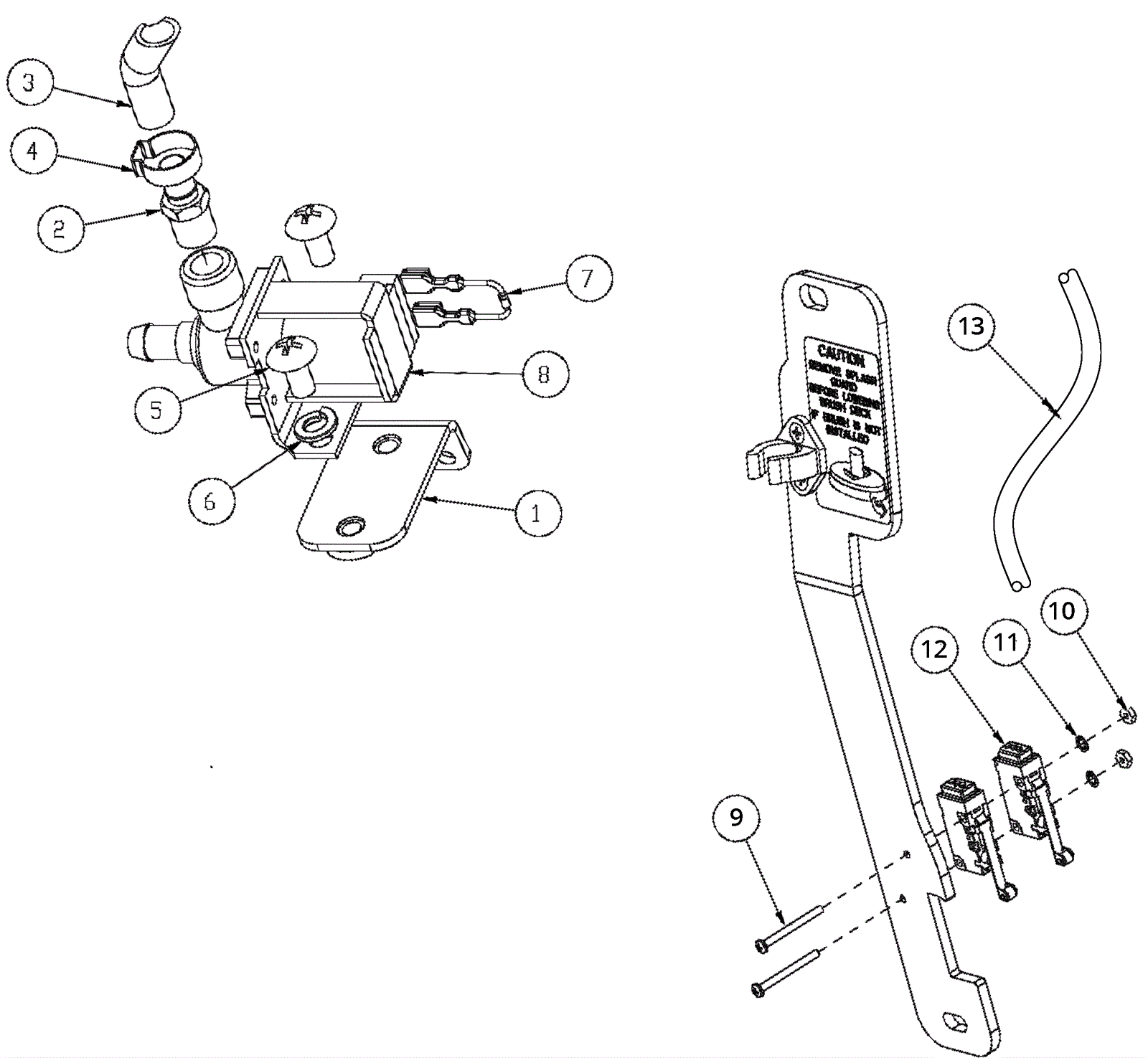

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
274-9822
|
Solenoid mount bracket |
1 |
|
|
2 |
174-0368
|
Double barb 3/8 x 1/4 MPF |
1 |
|
|
3 |
174-0096
|
Wire reinforced hose |
1 |
|
|
4 |
997-2001
|
Hose clamp |
1 |
|
|
5 |
999-0601
|
Screw 5/16-18 x 5/8 pan head phillips zinc plated |
2 |
|
|
6 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
7 |
174-0230
|
Diode assembly |
1 |
|
|
8 |
174-0025
|
24V solution solenoid valve |
1 |
|
|
9 |
374-1056
|
SCR-MC 4-40 X 1.25 STL Z |
2 |
|
|
10 |
999-0408
|
Nut 4-40 plain machine screw |
2 |
|
|
11 |
999-0479
|
Washer #4 internal star lock zinc plated |
2 |
|
|
12 |
174-8264
|
Switch assembly (with pack conduit) |
2 |
|
|
13 |
274-9823
|
Solenoid harness kit |
1 |
|
|
