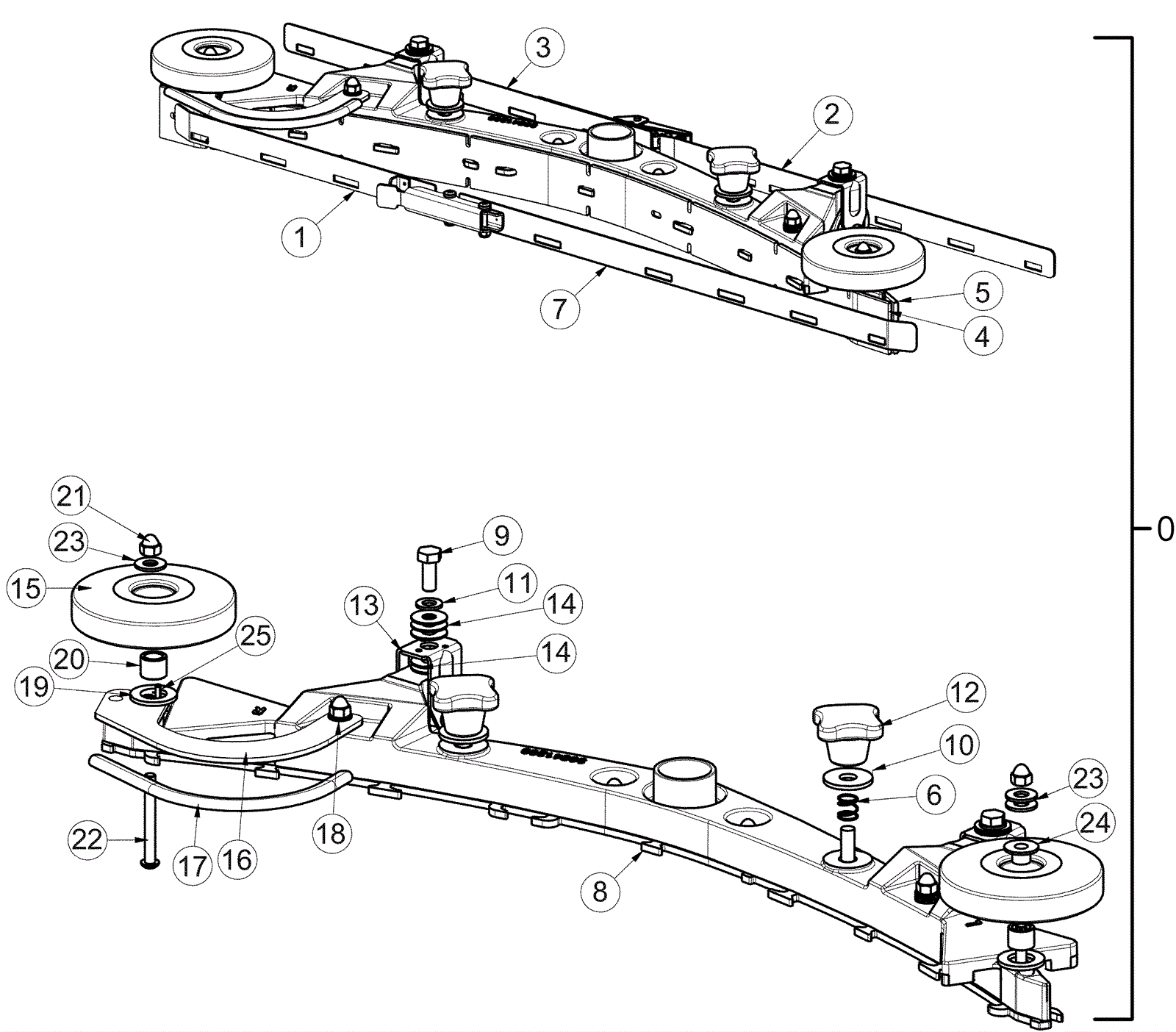

E17 Rear Squeegee Assembly - Curved - Brush Drive

#PartDescriptionPriceReqNotesAvailability
0 274-9437 SQUEEGEE ASSY FOR BD, 30 inch (760mm) CURVED $735.47 1 (includes 1-25) usually ships 4-14 days
1 274-3217 STRAP WMT, FRT RT - 30 inch (760) $35.24 1 usually ships 4-14 days
2 274-3182 STRAP WMT, REAR LEFT - 30 inch (760) $38.04 1 usually ships 1-5 days
3 274-3949 STRAP WMT, REAR RT - 30 inch (760) $69.02 1 usually ships 1-5 days
4 274-5533 SQUEEGEE-FRONT BLADE 30 inch, 1/8 PU $46.90 1 usually ships 4-14 days
5 274-5616 SQUEEGEE-REAR BLADE 30 inch, 1/8 PU $48.90 1 usually ships 4-14 days
6 374-1935 SPRING, COMP .4 ID X .5FL SS $1.42 2 usually ships 4-14 days
7 274-6157 STRAP ASM W/ LATCH, FRONT, 30 inch SQG $95.80 1 usually ships 4-14 days
8 274-8648 30 inch SQUEEGEE BASE ASM $305.31 1 usually ships 1-5 days
9 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 ships same day
10 174-7186 Washer 10 1/2 x 30 x 2 1/2 flat stainless steel $0.75 2 ships same day
11 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
12 174-8339 Star knob $2.98 2 ships same day
13 174-8933 Fixed caster $12.43 2 ships same day
14 374-1931 Washer flat 8.3 x 22 x 1.00mm stainless steel $1.54 10 usually ships 4-14 days
15 174-8932 4 inch plastic roller $3.86 2 usually ships 4-14 days
16 274-7797 BUMPER, 30 inch SQG $157.01 1 usually ships 1-5 days
17 274-1686 EDGE TRIM, 5/16 X 8 inch BLACK $9.91 1 usually ships 4-14 days
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
19 999-0349 Washer 5/8 SAE flat $0.99 2 ships same day
20 174-8328 Bushing $5.51 2 usually ships 4-14 days
21 999-1344 Nut 1/4-20 acorn stainless steel $1.38 6 ships same day
22 999-0621 Screw 1/4-20 x 3 truss head slotted stainless steel $5.79 2 ships same day
23 174-8251 Washer flat stainless steel $1.08 3 ships same day
24 374-1803 BUSHING-FLG .31 X .435 X .325 NYL $0.97 1 usually ships 4-14 days
25 274-9820 Pin-roll $0.97 1 usually ships 1-5 days
