| # | Part | Description |
Req | Notes | Availability |
|---|

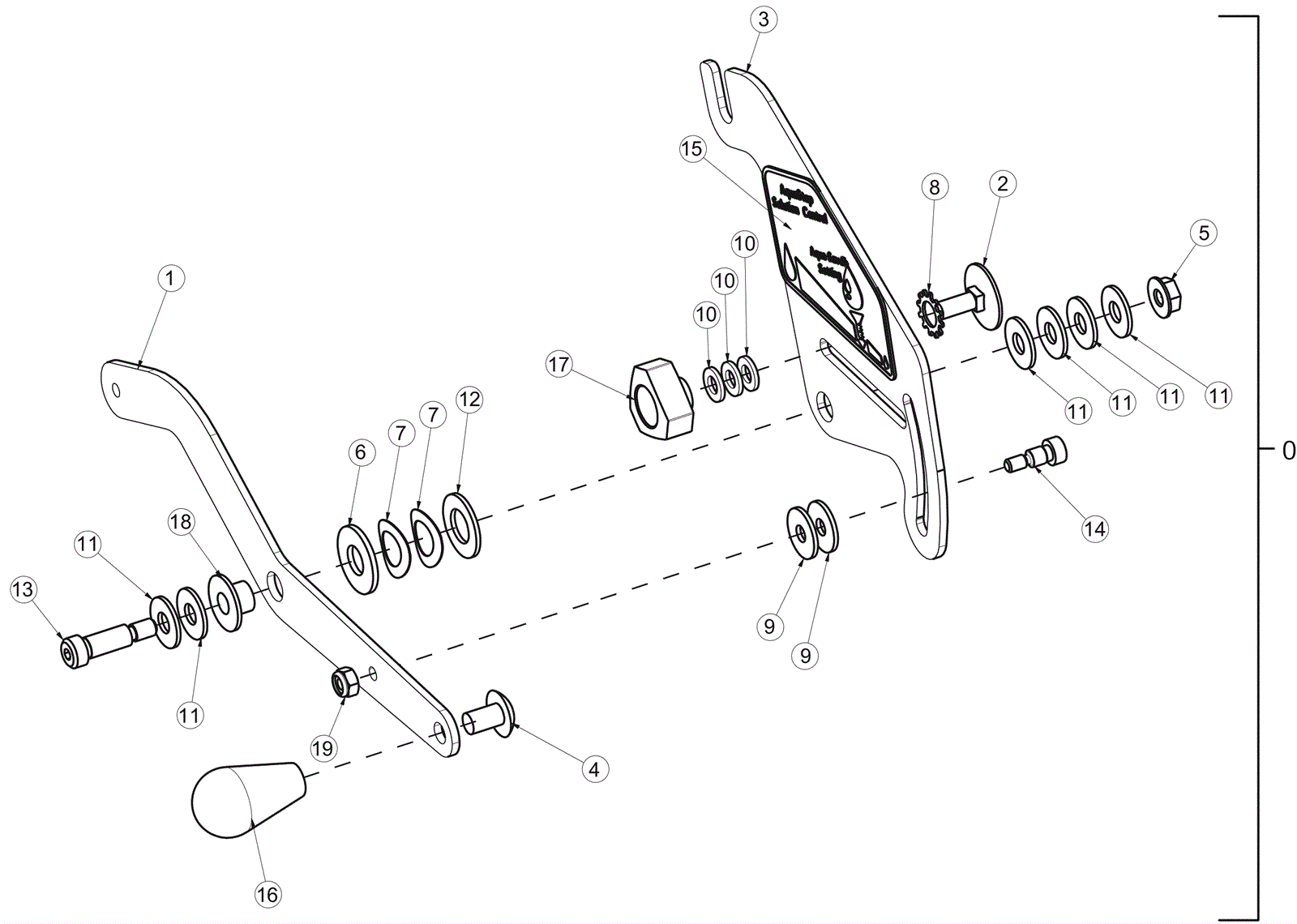

0 |
174-3887
|
Solution control handle assembly |
1 |
(includes 1-19) |
|
1 |
274-2016
|
LEVER, SOLUTION CONTROL BRK'T |
1 |
|
|
2 |
174-7148
|
Belt |
1 |
|
|
3 |
174-7147
|
Aquastop solution control bracket |
1 |
|
|
4 |
174-1391
|
Screw 5/16-18 x 1/2 mc |
1 |
|
|
5 |
999-0595
|
Nut 1/4-20 flange lock serrated zinc plated |
1 |
|
|
6 |
999-0328
|
Washer 7/16 USS flat |
1 |
|
|
7 |
174-5159
|
Washer 33/64 x 1/64 wave |
2 |
|
|
8 |
999-0318
|
Washer 3/8 external star lock zinc plated |
1 |
|
|
9 |
174-8260
|
Washer .25 ID x .75 OD nylon |
2 |
|
|
10 |
174-8599
|
Washer flat |
3 |
|
|
11 |
999-0024
|
Washer 5/16 flat stainless steel |
6 |
|
|
12 |
999-0566
|
Washer 1/2 flat nylon |
1 |
|
|
13 |
174-5804
|
Bolt 5/16 x 3/4 shoulder |
1 |
|
|
14 |
274-9815
|
Shoulder bolt |
1 |
|
|
15 |
174-7149
|
Aquastop solution control decal |
1 |
|
|
16 |
174-0387
|
Knob |
1 |
|
|
17 |
174-3084
|
Knob 1/4-20 |
1 |
|
|
18 |
374-1803
|
BUSHING-FLG .31 X .435 X .325 NYL |
1 |
|
|
19 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
1 |
|
|
