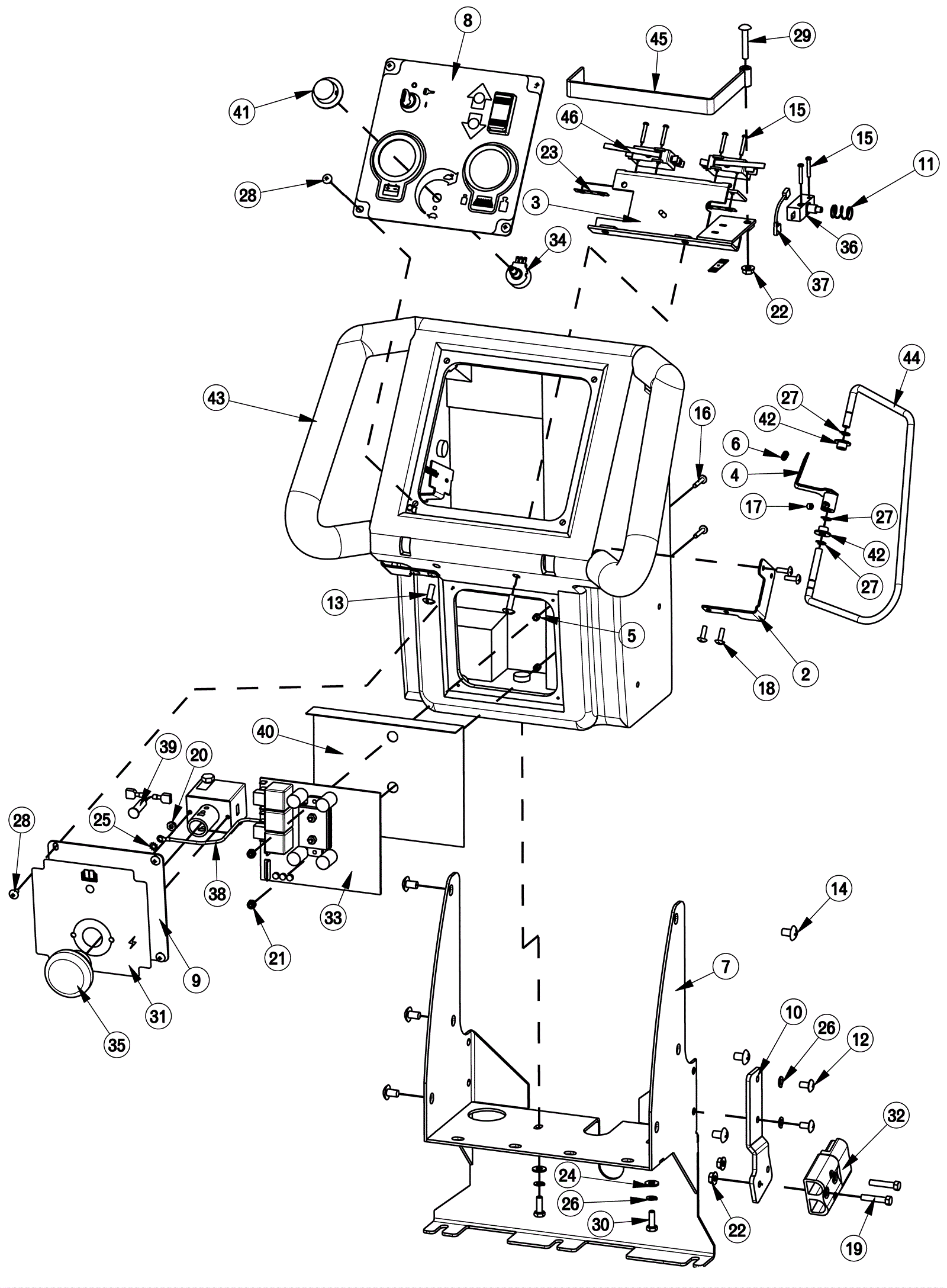

LUMINA 20TD Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5935 Right bail stop $28.65 1 usually ships 1-5 days
2 174-5936 Left bail stop $3.15 1 usually ships 1-5 days
3 174-5929 Switch bracket weldment $48.60 1 usually ships 1-5 days
4 174-5928 Cam weldment $82.56 2 usually ships 1-5 days
5 174-5938 S-C board spacer $4.91 2 usually ships 1-5 days
6 174-5934 Spring $6.27 2 usually ships 4-14 days
7 174-6484 Front handle bracket weldment $145.89 1 usually ships 1-5 days
8 274-8652 DASHBOARD ASY, SPE BATTERY GAUGE $246.65 1 usually ships 1-5 days
9 174-9296 E-Stop Panel $19.51 1 usually ships 4-14 days
10 174-9297 20 inch Anderson plug bracket $14.43 1 N/A usually ships 4-14 days
11 174-5749 Compression spring $3.17 1 usually ships 4-14 days
12 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 2 ships same day
13 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
14 174-1391 Screw 5/16-18 x 1/2 mc $0.97 6 usually ships 4-14 days
15 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 6 ships same day
16 174-5933 Screw #8-32 x 1 $0.97 2 usually ships 4-14 days
17 174-5737 Screw 1/4-20 x 1/4 set $0.97 2 usually ships 1-5 days
18 174-5991 Screw #10 x 5/8 plated hi/low $0.99 8 usually ships 4-14 days
19 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
20 999-0460 Nut 10-32 hex $0.99 1 ships same day
21 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
22 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 3 ships same day
23 174-0413 Tinnerman nut $0.97 3 usually ships 1-5 days
24 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
25 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
26 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
27 174-2104 Retaining ring $0.97 6 usually ships 4-14 days
28 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 8 ships same day
29 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 1 ships same day
30 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
31 174-9298 Panel cover decal $15.04 1 usually ships 4-14 days
32 162-5031 175amp charger plug (gray) SB175 $6.17 1 ships same day
33 274-9577 CONTROLLER-SPD 36V 1203A-304 $1,022.32 1 usually ships 4-14 days
34 274-4253 POTENTIOMETER 5K $31.96 1 usually ships 1-5 days
35 174-5750 Disconnect switch $204.67 1 usually ships 1-5 days
36 174-4024 Switch $24.53 1 usually ships 4-14 days
37 174-9299 Wire assembly $1.89 1 usually ships 4-14 days
38 174-9300 Wire assembly (green/yellow) $3.47 1 usually ships 4-14 days
39 174-6300 LED red assembly $14.78 1 usually ships 1-5 days
40 174-0264 Insulator $5.83 1 usually ships 1-5 days
41 174-0259 Knob $7.99 1 usually ships 4-14 days
42 174-3040 Nylon flanged bushing $4.23 4 usually ships 4-14 days
43 174-5920 Handle console 200 $106.70 1 usually ships 1-5 days
44 174-5923 Coated handle wire $35.33 2 usually ships 1-5 days
45 174-5930 Lever switch $52.04 1 usually ships 1-5 days
46 174-0388 Micro switch $25.43 2 usually ships 4-14 days
