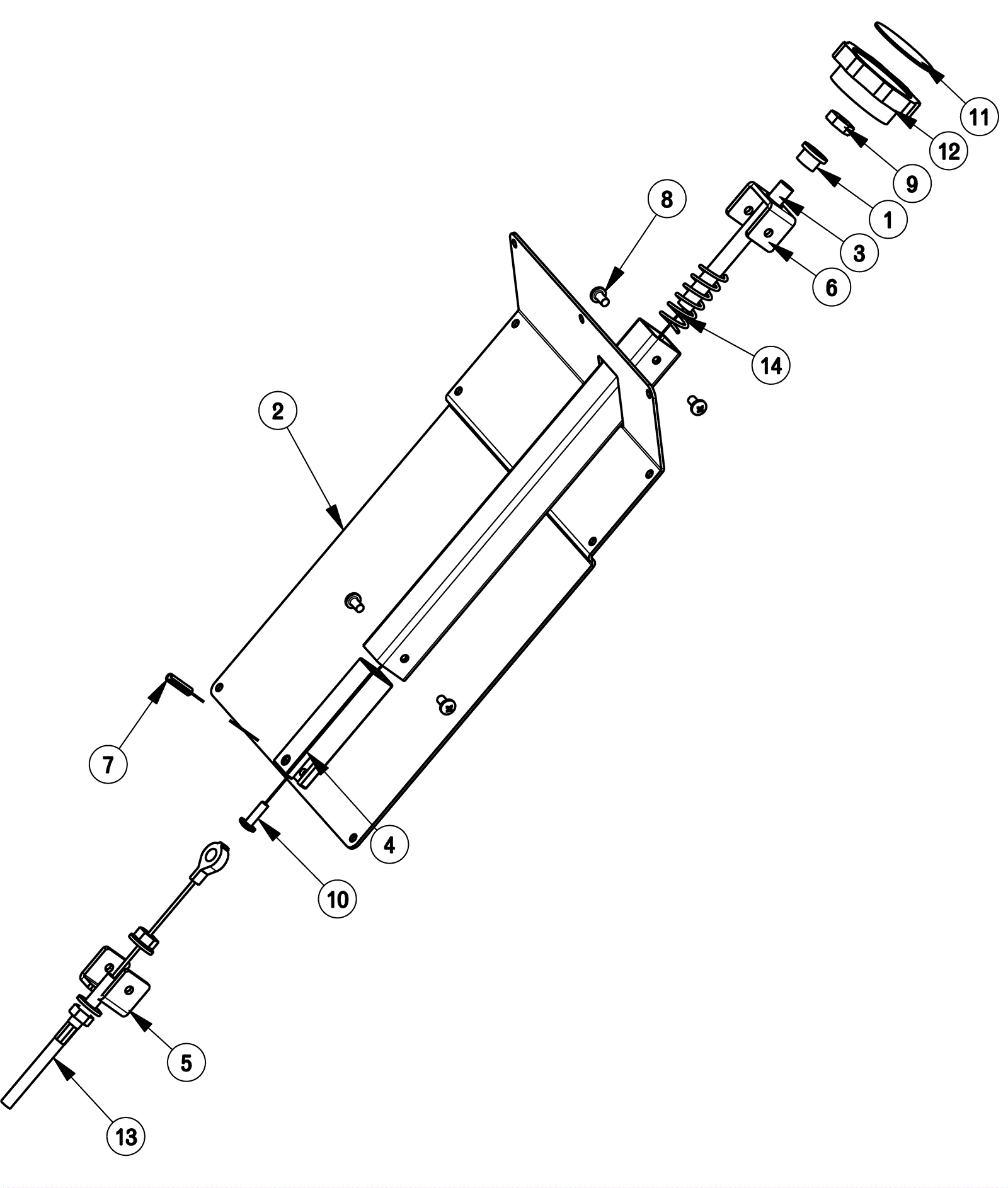

LUMINA 20TD Pressure Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-0138 Bushing $2.96 1 usually ships 1-5 days
2 174-6525 Pressure adjustment mount weldment $56.73 1 usually ships 1-5 days
3 174-6526 Pressure adjustment screw $36.70 1 usually ships 1-5 days
4 174-6527 Pressure adjustment slide $64.56 1 usually ships 1-5 days
5 174-6528 Pressure adjustment retainer bracket $7.21 1 usually ships 1-5 days
6 174-6529 Pressure adjustment retainer bracket $6.53 1 usually ships 1-5 days
7 174-6530 Roll pin 3/16 x 3/4 $0.97 1 usually ships 1-5 days
8 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 4 ships same day
9 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
10 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 1 ships same day
11 174-5203 Pad pressure decal $6.07 1 usually ships 1-5 days
12 174-1295 Threaded adjustment knob 3/8 x 16 $9.31 1 usually ships 4-14 days
13 174-5178 Cable assembly pressure adjusted $37.75 1 usually ships 4-14 days
14 174-0196 Compression spring $5.27 1 usually ships 4-14 days
