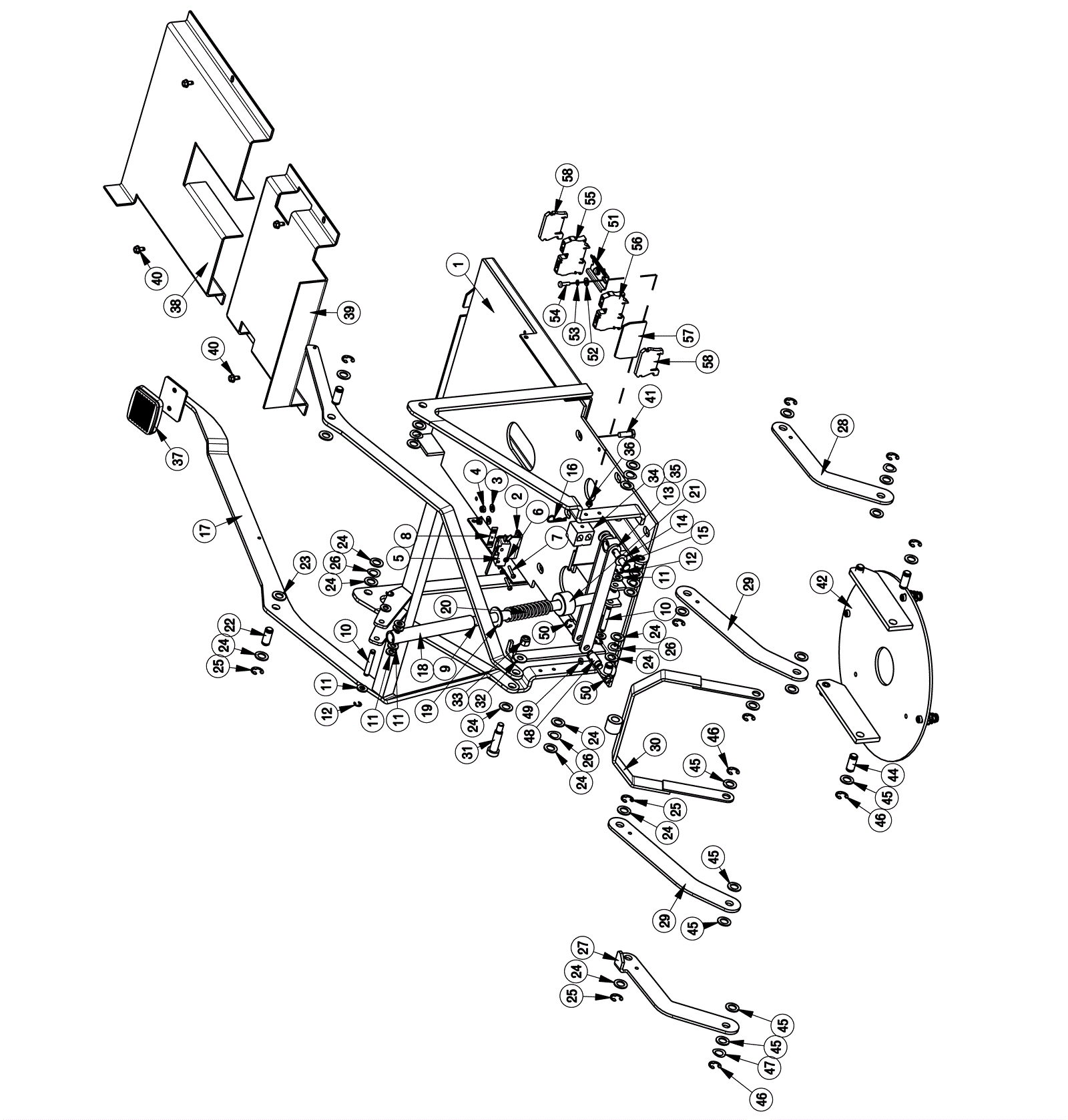

LUMINA 20TD Mainframe Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-6482 Base plate weldment $457.78 1 usually ships 1-5 days
2 274-1142 SWITCH INTERLOCK BRKT NEW $45.00 1 usually ships 1-5 days
3 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
4 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
5 274-3407 SW-SNAP SPST NO/NC CONTACTS FLAT LEVER $19.96 1 usually ships 1-5 days
6 174-5230 Washer #6 flat $1.20 2 usually ships 4-14 days
7 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
8 174-0413 Tinnerman nut $0.97 1 usually ships 1-5 days
9 174-6496 Spring guide $38.86 1 usually ships 1-5 days
10 174-6506 Roller pin $67.03 2 usually ships 1-5 days
11 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
12 174-2104 Retaining ring $0.97 4 usually ships 4-14 days
13 174-6498 Adjustment link $7.65 2 usually ships 1-5 days
14 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
15 174-1264 Clevis pin $3.04 1 usually ships 1-5 days
16 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
17 174-6492 Upper weldment $235.00 1 usually ships 1-5 days
18 274-3198 GUIDE TUBE $27.13 1 usually ships 1-5 days
19 999-0349 Washer 5/8 SAE flat $0.99 1 ships same day
20 174-5182 Compression Spring $9.15 1 usually ships 4-14 days
21 174-6497 Spring spacer 1-1/2 x 5/8 x 27/32 $27.14 1 usually ships 1-5 days
22 174-6494 Pivot pin $20.66 2 usually ships 1-5 days
23 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
24 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 19 usually ships 4-14 days
25 174-0178 1/2 inch external retaining ring $0.99 6 usually ships 4-14 days
26 174-5159 Washer 33/64 x 1/64 wave $0.99 6 usually ships 4-14 days
27 174-6504 Link $35.08 1 usually ships 1-5 days
28 174-6501 Link $18.98 1 usually ships 1-5 days
29 174-6502 Trailing link $34.55 2 usually ships 1-5 days
30 174-6493 Motor lift weldment $70.95 1 usually ships 1-5 days
31 999-0473 Screw 3/8-16 x 1 1/2 socket head shoulder steel $4.03 1 ships same day
32 999-1363 Washer 7/8 flat stainless steel $3.48 1 ships same day
33 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
34 174-6509 Terminal block 2 pos $17.31 1 usually ships 1-5 days
35 174-6507 Screw 8-32 x 1-1/2 stainless steel plated $0.97 1 usually ships 1-5 days
36 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 1 ships same day
37 174-0102 Pedal pad $5.86 1 usually ships 4-14 days
38 174-9301 Lower battery support $36.88 1 usually ships 4-14 days
39 174-9302 Upper battery support $52.82 1 usually ships 4-14 days
40 174-9303 Screw ΒΌ-20 x 1 hex washer head $0.95 4 usually ships 4-14 days
41 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 4 ships same day
42 274-7180 Plate motor weldment $157.70 1 usually ships 1-5 days
44 174-6494 Pivot pin $20.66 2 usually ships 1-5 days
45 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 12 usually ships 4-14 days
46 174-0178 1/2 inch external retaining ring $0.99 5 usually ships 4-14 days
47 174-5159 Washer 33/64 x 1/64 wave $0.99 2 usually ships 4-14 days
48 174-6499 Adjustment nut $12.16 1 usually ships 1-5 days
49 217-0111 Nut 10-24 hex (OBSOLETE) $1.85 1 usually ships 1-5 days
50 174-0140 Retaining ring $1.08 2 usually ships 4-14 days
51 274-2433 DIN RAIL, CUT- 2 inch $3.28 1 usually ships 1-5 days
52 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
53 174-5259 Washer #10 helical $0.97 2 usually ships 4-14 days
54 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
55 274-0986 Terminal block 60A red (spring action) $6.92 1 usually ships 1-5 days
56 274-0987 Terminal action - 60A black (spring action) $6.53 1 usually ships 1-5 days
57 374-2606 TERMINAL BLOCK-END PLATE (SPRING ACTION) $2.84 1 usually ships 1-5 days
58 374-2951 TERM BLOCK-END ANCHOR (SPRING ACTION) $3.64 2 usually ships 1-5 days
