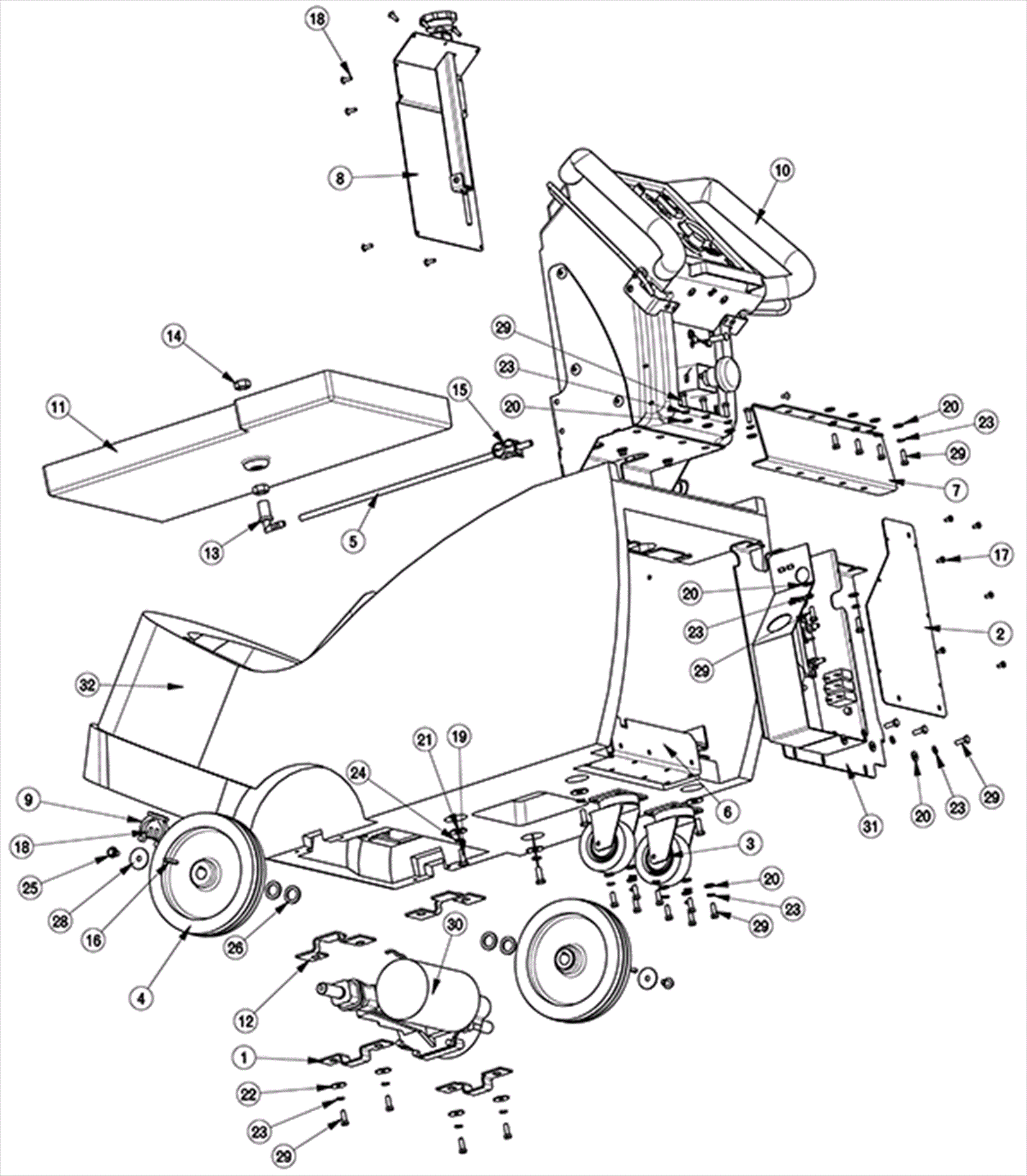

LUMINA 20TD Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-5865 Transaxle mount $14.60 2 usually ships 1-5 days
2 174-5871 Electrical box cover $17.70 1 usually ships 4-14 days
3 174-1523 3 1/2 inch caster $31.43 2 ships same day
4 174-5716 Wheel 8 Inch $79.24 2 usually ships 4-14 days
5 174-0369 18 inch silicone hose $11.98 1 usually ships 4-14 days
6 174-6482 Base plate weldment $457.78 1 usually ships 1-5 days
7 174-6485 Rear handle bracket $27.05 1 usually ships 1-5 days
8 174-6487 Pressure adjustment assembly $234.08 1 usually ships 1-5 days
9 174-5968 1 1/2 inch hose clip $6.34 1 ships same day
10 174-9292 Console assembly, 2600TD SPE BAT GA $1,352.30 1 usually ships 4-14 days
11 174-9293 Battery tray $67.09 1 usually ships 4-14 days
12 174-9294 Transaxle spacer $28.50 2 usually ships 4-14 days
13 174-0364 90 degree nozzle body $2.66 1 usually ships 1-5 days
14 174-0517 Nut 1/4 plastic $1.10 2 usually ships 1-5 days
15 174-0370 Shut-off hose clamp $1.33 1 usually ships 4-14 days
16 174-5717 Square keyway $1.13 2 usually ships 4-14 days
18 174-5991 Screw #10 x 5/8 plated hi/low $0.99 11 usually ships 4-14 days
19 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 4 ships same day
20 999-0016 Washer 1/4 flat plain finish $0.99 23 ships same day
21 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
22 174-0536 Washer 1/4 $0.97 10 usually ships 4-14 days
23 999-0060 Washer 1/4 split lock plain finish $0.99 27 ships same day
24 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
25 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 2 ships same day
26 999-0588 Washer 7/8 flat stainless steel $11.44 4 ships same day
27 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 6 ships same day
28 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
29 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 27 ships same day
30 174-8143 Transaxle 36V $1,328.70 1 usually ships 1-5 days
31 174-9295 Burn electrical assembly $584.50 1 usually ships 4-14 days
32 174-5863 Base $836.48 1 usually ships 1-5 days
