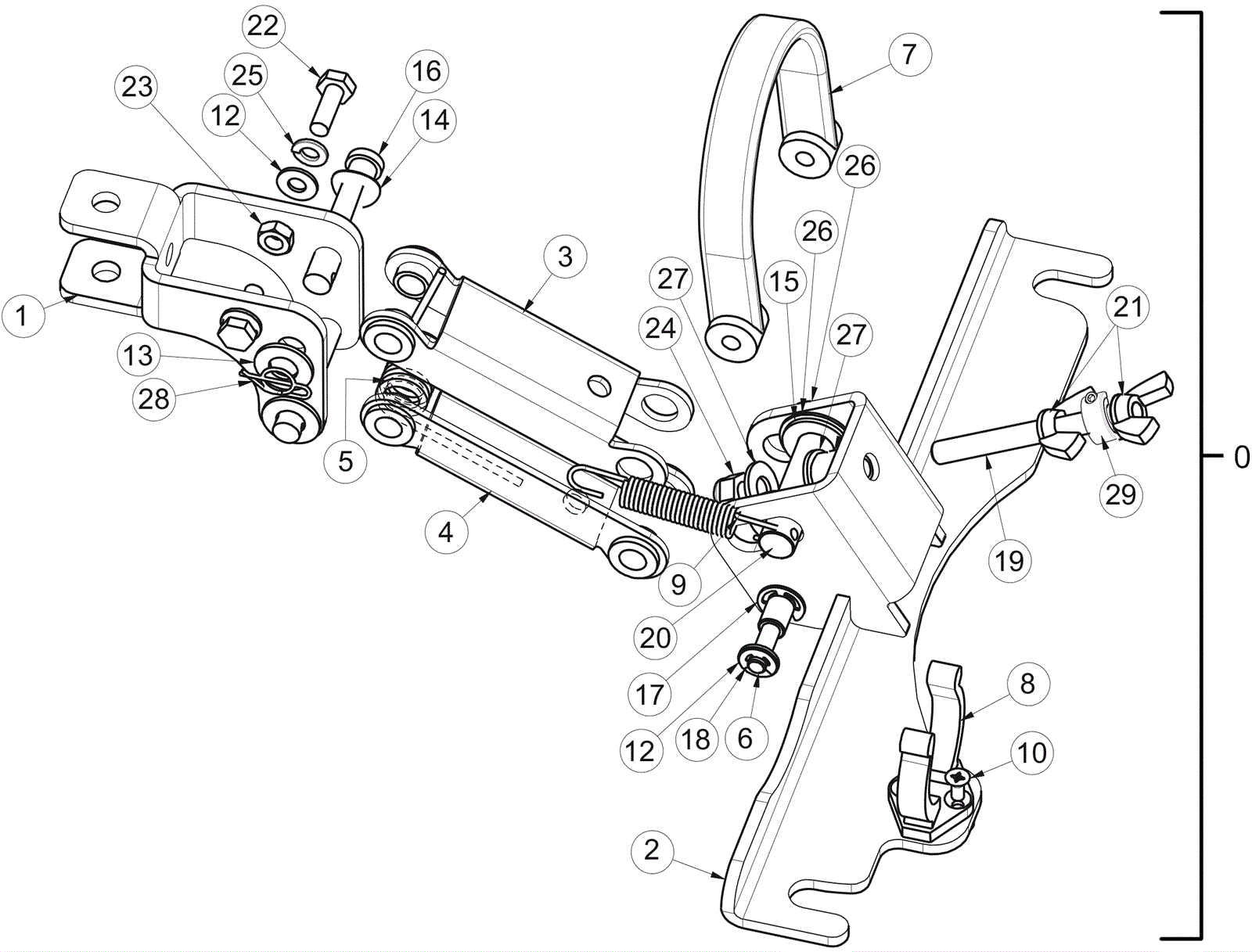

E20 SPORT Squeegee Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
0 174-8343 Squeegee lift mechanism assembly $193.37 1 (includes 1-29) ships same day
1 174-8346 Main squeegee bracket hinge $21.37 1 usually ships 4-14 days
2 174-8347 Squeegee mount weldment $38.38 1 usually ships 4-14 days
3 174-8348 Squeegee top link with bushing $22.34 1 usually ships 4-14 days
4 174-8349 Squeegee bottom link with bushing $25.88 1 usually ships 4-14 days
5 174-8350 Torsion spring $2.22 1 usually ships 4-14 days
6 274-1265 Pin $7.07 1 usually ships 4-14 days
7 274-1653 9 inch strap (black) $16.94 1 ships same day
8 174-5968 1 1/2 inch hose clip $5.07 1 ships same day
9 174-0008 Return spring $2.78 1 usually ships 4-14 days
10 174-6229 Screw 8-32 x 3 3/4 flat head $0.88 2 ships same day
11 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
12 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
13 174-3203 Washer 13/32 x 1/32 flat stainless steel $0.86 2 ships same day
14 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
15 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
16 174-8345 Clevis pin 3/8 x 2 1/4 $1.04 2 usually ships 4-14 days
17 174-0140 Retaining ring $0.86 2 usually ships 4-14 days
18 174-0414 Retaining ring $0.86 2 ships same day
19 174-8351 Rod 5/16-18 x 3 1/2 inch stainless steel $2.43 1 usually ships 4-14 days
20 174-8352 Clevis pin 1/2 x 2 1/4 inch with hole $10.51 1 usually ships 4-14 days
21 999-1012 Nut 5/16-18 wing stainless steel $1.98 2 ships same day
22 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
23 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
24 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
25 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
26 174-0588 Washer 9/16 x 1-1/16 x 3/64 flat pleated $0.97 3 usually ships 4-14 days
27 174-8251 Washer flat stainless steel $0.86 2 ships same day
28 174-1578 3/8 rue ring cotter pin $1.45 1 ships same day
29 274-9821 Collar threaded clamp $8.53 1 usually ships 4-14 days
