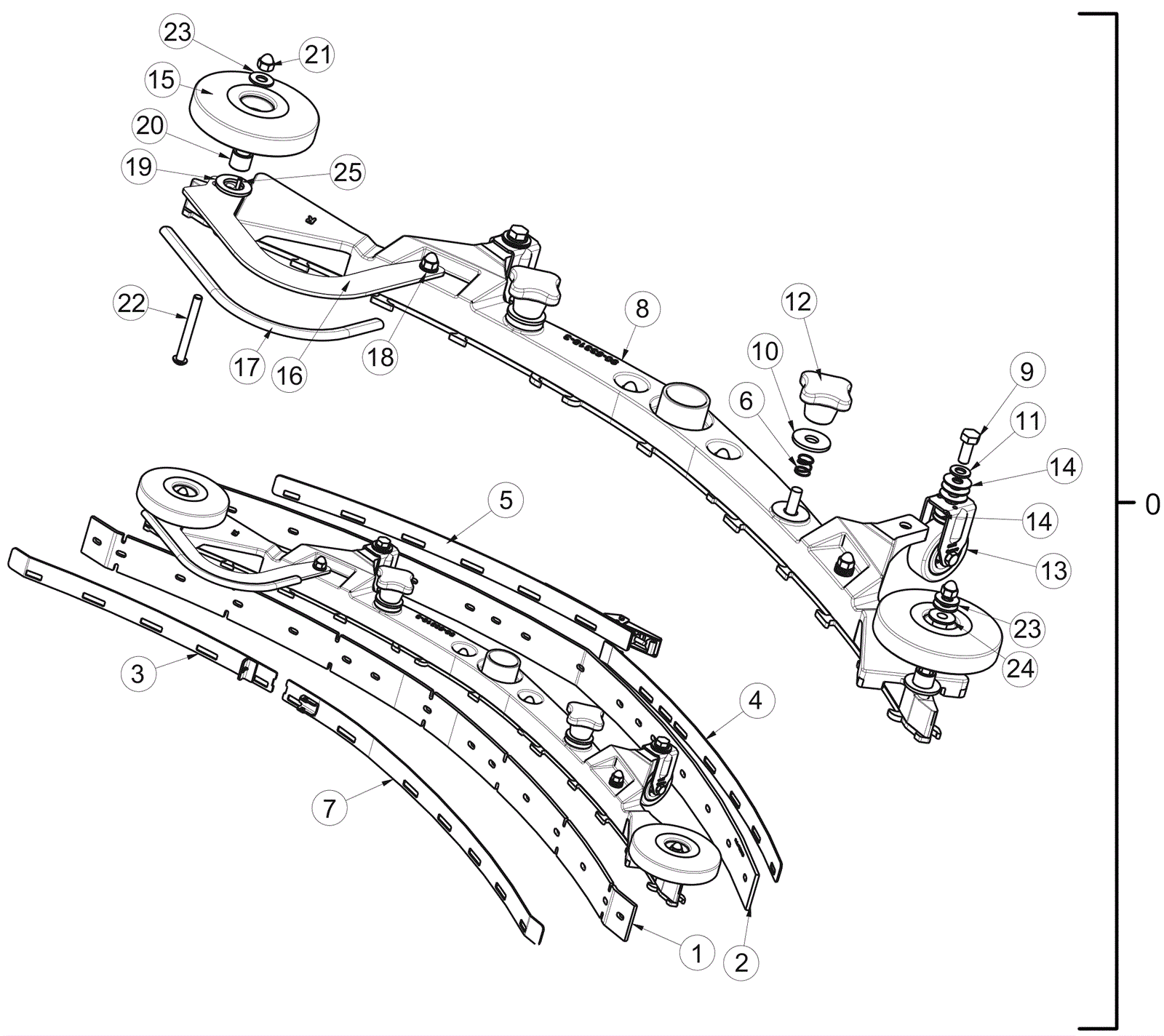

E20 SPORT Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 274-9436 34 inch squeegee assembly curved $412.08 1 (includes 1-25) usually ships 4-14 days
1 174-9615 Squeegee blade 34 inch urethane front $44.22 1 ships same day
2 174-9616 Squeegee blade 34 inch urethane rear $46.03 1 ships same day
3 174-8332 Front right strap weldment $22.35 1 ships same day
4 174-8333 Rear left strap weldment $21.86 1 ships same day
5 174-8334 Rear right strap weldment $59.29 1 usually ships 4-14 days
6 374-1935 SPRING, COMP .4 ID X .5FL SS $1.42 2 usually ships 4-14 days
7 274-6924 STRAP W/ LATCH, FRONT LEFT, 34 inch SQG $88.74 1 usually ships 4-14 days
8 174-8329 34 inch squeegee weldment $329.06 1 ships same day
9 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 ships same day
10 174-7186 Washer 10 1/2 x 30 x 2 1/2 flat stainless steel $0.75 2 ships same day
11 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
12 174-8339 Star knob $2.38 2 ships same day
13 174-8933 Fixed caster $9.94 2 ships same day
14 374-1931 Washer flat 8.3 x 22 x 1.00mm stainless steel $1.23 10 usually ships 4-14 days
15 174-8932 4 inch plastic roller $3.86 2 usually ships 4-14 days
16 174-8336 34 inch squeegee bumper $17.98 1 usually ships 4-14 days
17 174-8326 Edge trim black 5/16 x 10 inch $15.17 1 ships same day
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
19 999-0349 Washer 5/8 SAE flat $0.99 2 ships same day
20 174-8328 Bushing $5.51 2 usually ships 4-14 days
21 999-1344 Nut 1/4-20 acorn stainless steel $1.38 6 ships same day
22 999-0621 Screw 1/4-20 x 3 truss head slotted stainless steel $5.79 2 ships same day
23 174-8251 Washer flat stainless steel $0.86 3 ships same day
24 374-1803 BUSHING-FLG .31 X .435 X .325 NYL $0.97 1 usually ships 4-14 days
25 274-9820 Pin-roll $0.97 1 usually ships 1-5 days
