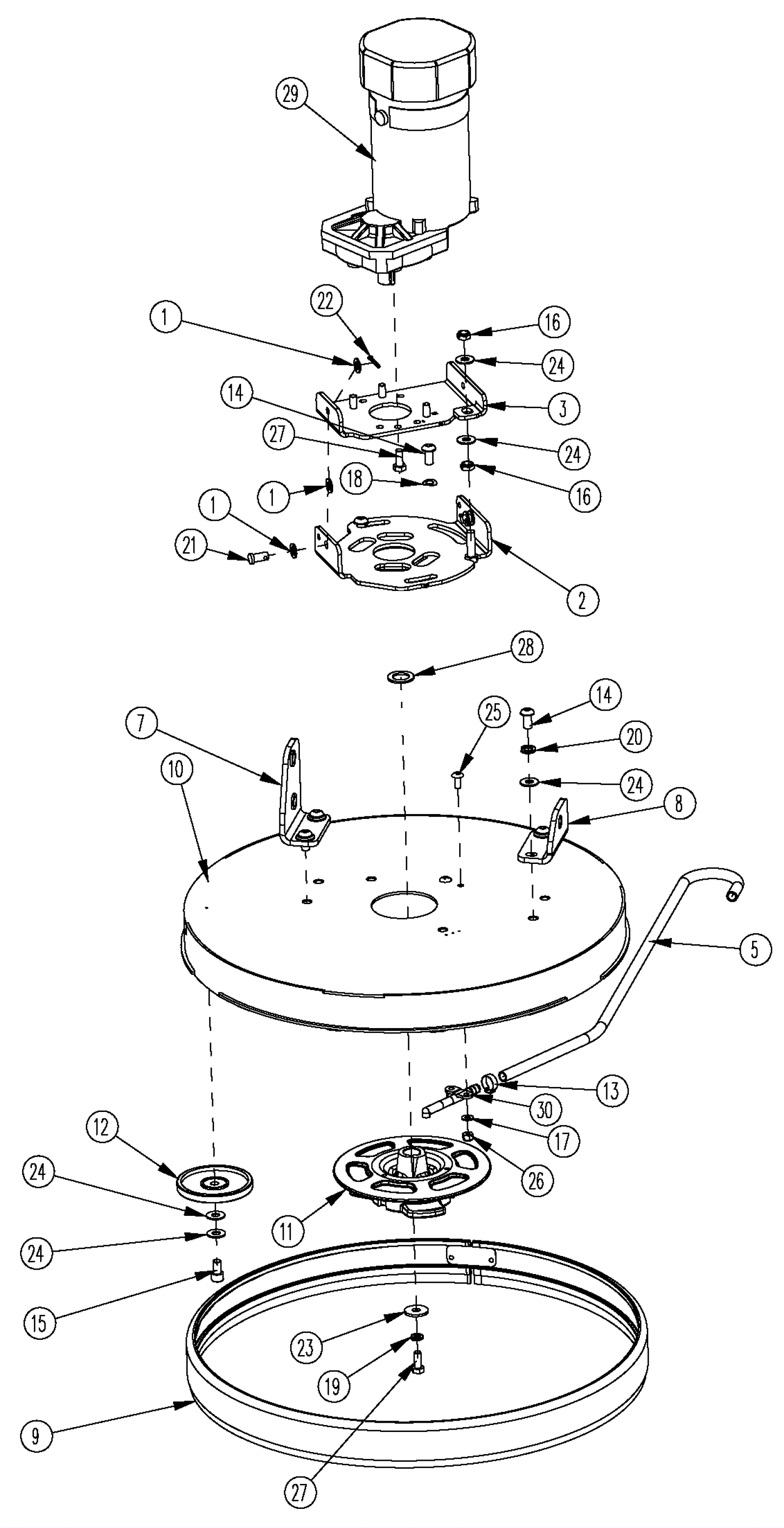

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1363
|
Washer 7/8 flat stainless steel |
6 |
|
|
2 |
174-8306
|
Deck angle weldment |
1 |
|
|
3 |
174-8307
|
Motor mount plate |
1 |
|
|
5 |
274-3007
|
Hose 3/8 X 22 1/2 inch reinforced nylon |
1 |
|
|
7 |
174-7180
|
Right hand scrub deck mounting bracket |
1 |
|
|
8 |
174-7181
|
Left hand scrub deck mounting bracket |
1 |
|
|
9 |
274-6772
|
Brush deck skirt |
1 |
|
|
10 |
274-8325
|
20 inch deck cover weldment |
1 |
|
|
11 |
274-5508
|
HUB ASSEMBLY, DISC DECK |
1 |
|
|
12 |
174-5216
|
Roller wheel |
1 |
|
|
13 |
997-2001
|
Hose clamp |
1 |
|
|
14 |
174-7182
|
Screw 3/8-24 x 3/4 steel plated |
6 |
|
|
15 |
174-8868
|
Screw 3/8-24 x 5/8 steel plated |
1 |
|
|
16 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
2 |
|
|
17 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
18 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
19 |
999-0028
|
Washer 5/16 split lock plain finish |
1 |
|
|
20 |
999-0034
|
Washer 3/8 split lock plain finish |
4 |
|
|
21 |
174-8312
|
Clevis pin 3/8 x 3/4 |
2 |
|
|
22 |
174-1039
|
Cotter pin 1/8 x 1 |
2 |
|
|
23 |
174-8169
|
Washer flat .37 x 1.12 x .10 |
1 |
|
|
24 |
999-1363
|
Washer 7/8 flat stainless steel |
8 |
|
|
25 |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
2 |
|
|
26 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
27 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
5 |
|
|
28 |
999-1134
|
Washer 1 1/4 flat stainless steel |
1 |
|
|
29 |
174-8313
|
24v brush motor |
1 |
|
|
30 |
174-8314
|
Solution feed nozzle |
1 |
|
|
N/S |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
