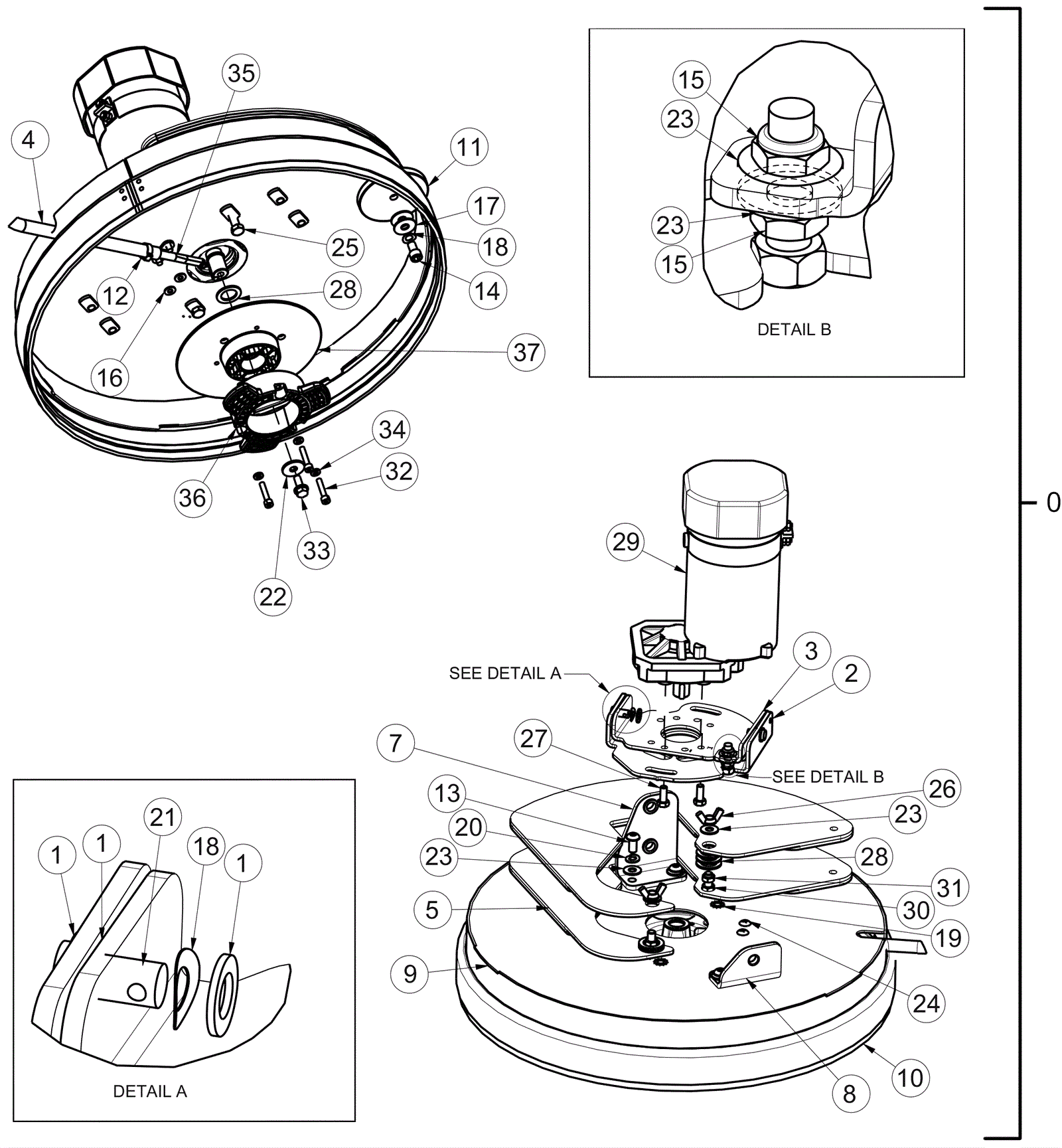

E20 SPORT Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
0 174-7138 20 inch brush deck assembly $1,196.11 1 (includes 1-37) usually ships 1-5 days
1 174-5328 Special washer $0.99 6 usually ships 4-14 days
2 174-8306 Deck angle weldment $51.92 1 usually ships 4-14 days
3 174-8307 Motor mount plate $24.72 1 usually ships 4-14 days
4 274-3007 Hose 3/8 X 22 1/2 inch reinforced nylon $17.34 1 usually ships 4-14 days
5 174-7179 Scrub deck weight $126.77 2 usually ships 4-14 days
7 174-7180 Right hand scrub deck mounting bracket $15.64 1 usually ships 4-14 days
8 174-7181 Left hand scrub deck mounting bracket $15.64 1 usually ships 4-14 days
9 274-8325 20 inch deck cover weldment $239.75 1 usually ships 4-14 days
10 274-6772 Brush deck skirt $81.77 1 usually ships 4-14 days
11 174-5216 Roller wheel $6.53 1 usually ships 4-14 days
12 997-2001 Hose clamp $2.42 1 ships same day
13 174-7182 Screw 3/8-24 x 3/4 steel plated $0.97 4 usually ships 1-5 days
14 174-8868 Screw 3/8-24 x 5/8 steel plated $0.97 1 usually ships 4-14 days
15 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 2 ships same day
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
17 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
18 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
19 999-0318 Washer 3/8 external star lock zinc plated $0.99 2 ships same day
20 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
21 174-8312 Clevis pin 3/8 x 3/4 $0.97 2 usually ships 4-14 days
22 174-8169 Washer flat .37 x 1.12 x .10 $2.06 1 ships same day
23 999-1363 Washer 7/8 flat stainless steel $3.48 8 ships same day
24 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
25 999-1941 Bolt 3/8-24 x 1 1/2 hex head full thread tap stainless steel $4.28 2 usually ships 1-5 days
26 999-1941 Bolt 3/8-24 x 1 1/2 hex head full thread tap stainless steel $4.28 2 MM712836 usually ships 1-5 days
27 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
28 999-1134 Washer 1 1/4 flat stainless steel $6.01 7 ships same day
29 174-7183 Brush motor $515.71 1 usually ships 4-14 days
30 374-0911 Nut 3/8-24 zinc plated $1.20 2 usually ships 1-5 days
31 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
32 374-0744 Screw M6 x 30mm hex head socket stainless steel $0.97 3 ships same day
33 174-7184 Bolt M8-1.25 x 20mm hex head flange precote zinc plated $1.80 1 ships same day
34 374-1580 Washer $1.18 3 usually ships 4-14 days
35 174-8314 Solution feed nozzle $2.10 1 ships same day
36 274-2649 Drive hub $12.53 1 usually ships 4-14 days
37 174-8322 Drive hub base $26.57 1 usually ships 4-14 days
