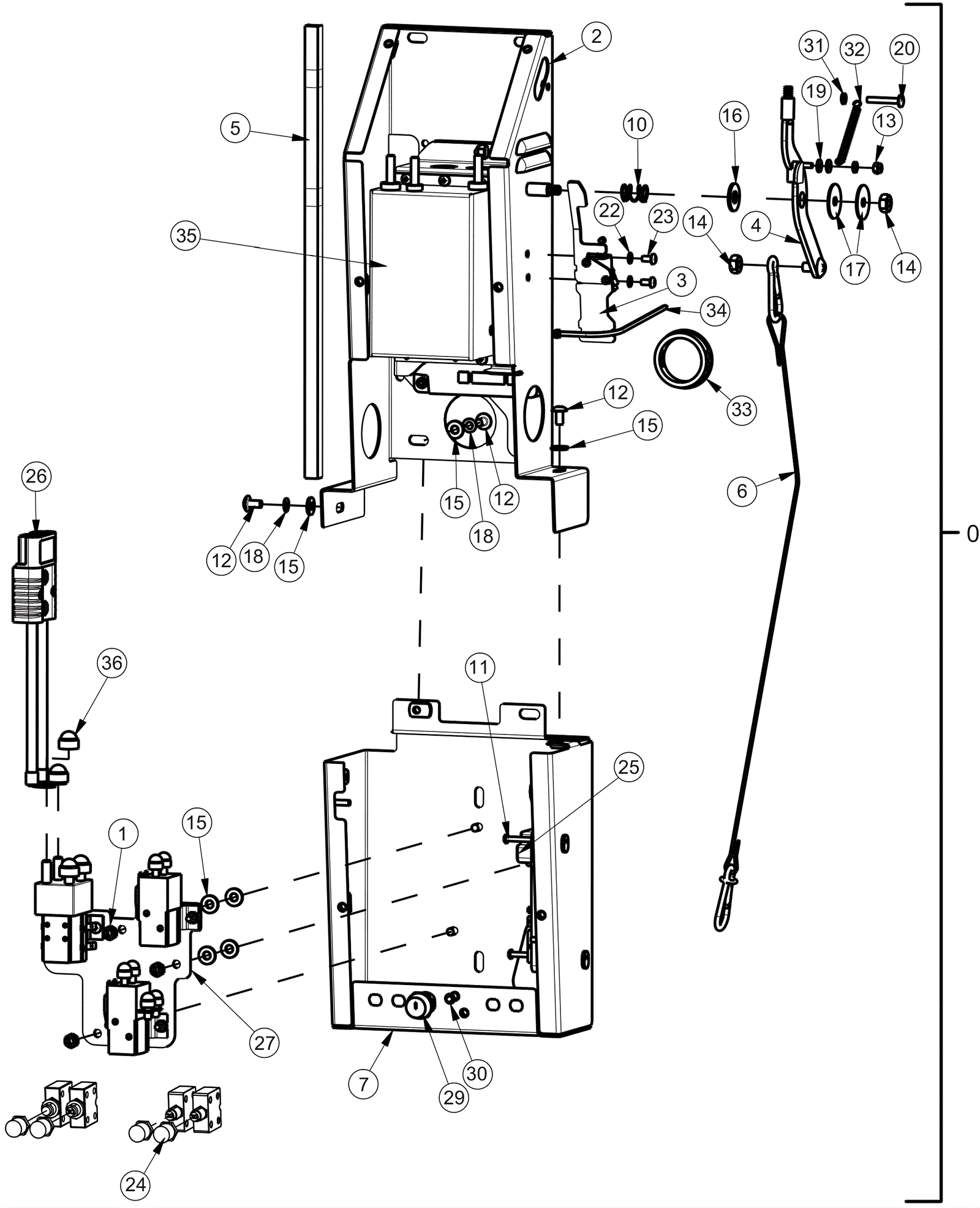

E20 SPORT Electrical Box Assembly

#PartDescriptionPriceReqNotesAvailability
0 174-7144 Electrical box assembly $2,028.30 1 (includes 1-36) usually ships 1-5 days
1 174-9057 Nut 1/4-20 serated nylock $0.97 3 usually ships 1-5 days
2 174-8284 Upper electrical box weldment $115.28 1 usually ships 4-14 days
3 174-8287 Vac switch assembly $39.78 1 usually ships 4-14 days
4 174-8128 Lever $37.73 1 usually ships 4-14 days
5 174-8288 Foam tape 1/2 x 16 1/2 inch $2.37 1 usually ships 4-14 days
6 274-4152 Squeegee cable assembly $25.54 1 ships same day
7 174-7170 Lower electrical box weldment $99.00 1 usually ships 1-5 days
8 174-3898 Charger mount panel $127.66 1 usually ships 4-14 days
9 174-3899 I-Drive mounting plate $66.10 1 usually ships 4-14 days
10 174-5749 Compression spring $3.17 1 usually ships 4-14 days
11 374-1022 Screw 8-32 x 1 1/8 pan head phillips zinc $0.97 2 usually ships 1-5 days
12 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 3 ships same day
13 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 3 ships same day
14 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
15 999-0016 Washer 1/4 flat plain finish $0.99 9 ships same day
16 999-0328 Washer 7/16 USS flat $0.99 1 ships same day
17 174-2255 Washer 5/16 x 7/8 x 3/64 flat $0.97 2 usually ships 4-14 days
18 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
19 174-0532 Washer 7/32 x 3/64 nylon $0.97 2 usually ships 4-14 days
20 174-5072 Screw 10-24 x 1-1/4 $0.97 1 usually ships 4-14 days
21 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
22 999-0089 Washer #10 internal star lock zinc plated $0.99 7 ships same day
23 999-0817 Screw 10-24 x 5/8 round head zinc plated $0.99 7 ships same day
24 174-5824 Circuit breaker boot $4.76 4 usually ships 4-14 days
25 174-7084 24V I-drive motor controller $203.85 1 usually ships 4-14 days
26 174-8290 Wire assembly $59.25 1 usually ships 4-14 days
27 174-3900 Electrical panel assembly $1,372.56 1 usually ships 4-14 days
28 174-7172 24V 70amp motor control I-drive $562.91 1 usually ships 4-14 days
29 174-2969 Keyswitch assembly $45.42 1 usually ships 4-14 days
30 174-3601 Led amber lamp assembly $17.35 1 usually ships 4-14 days
31 374-2258 Mount ring $2.37 2 usually ships 4-14 days
32 174-5235 Spring $3.63 1 usually ships 4-14 days
33 174-0255 Bushing $1.24 1 usually ships 1-5 days
34 997-2102 Cable tie $1.24 1 ships same day
35 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price 1 usually ships 3-26 days
36 174-8291 Nut cover safety cap M8 $1.40 1 usually ships 1-5 days
