| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |
274-6436
|

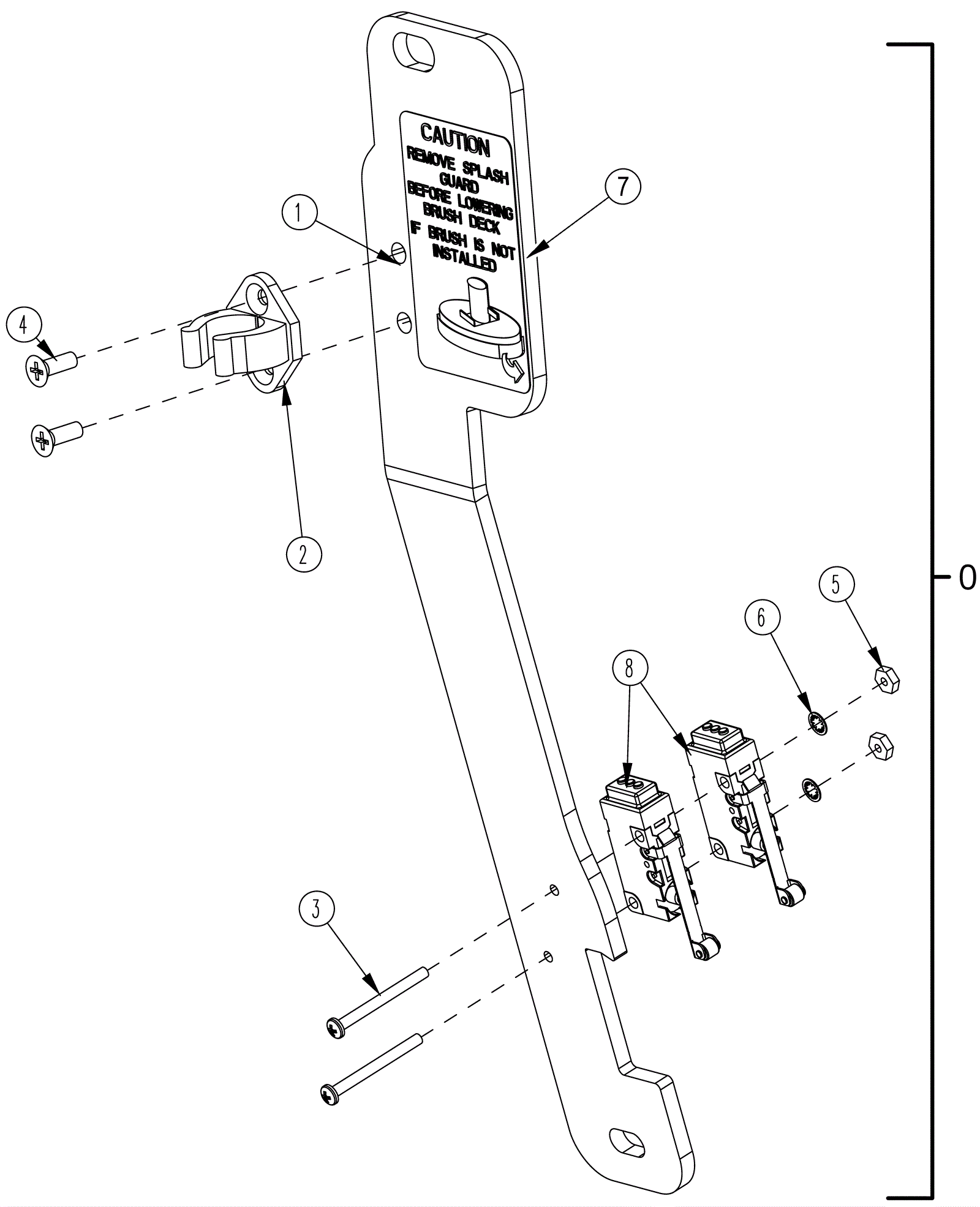

Lift pedal bracket assembly |
$78.25
|
1 |
(includes 1-8) |
usually ships 1-5 days |
1 |
174-8262
|
Stop pedal bracket |
$18.85
|
1 |
|
usually ships 1-5 days |
2 |
174-8263
|
Clip |
$3.08
|
1 |
|
ships same day |
3 |
374-1056
|
SCR-MC 4-40 X 1.25 STL Z |
$0.97
|
2 |
|
usually ships 1-5 days |
4 |
174-2271
|
Screw 8-32 x 1/2 |
$0.99
|
2 |
|
usually ships 4-14 days |
5 |
999-0408
|
Nut 4-40 plain machine screw |
$0.99
|
2 |
|
ships same day |
6 |
999-0479
|
Washer #4 internal star lock zinc plated |
$0.99
|
2 |
|
ships same day |
7 |
174-7165
|
Remove splash guard decal |
$2.63
|
1 |
|
usually ships 1-5 days |
8 |
174-8264
|
Switch assembly (with pack conduit) |
$23.66
|
2 |
|
usually ships 4-14 days |
