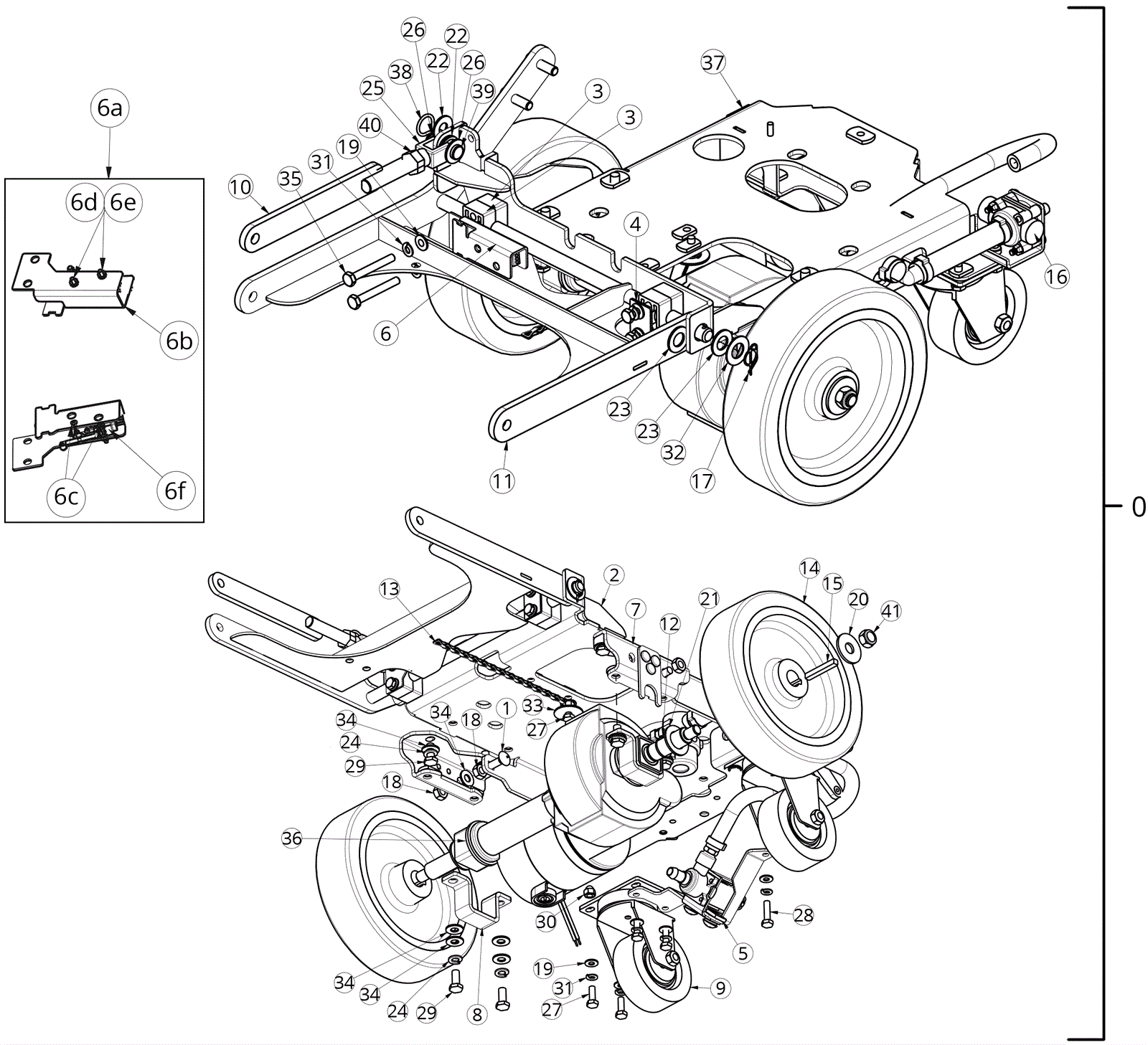

E20 SPORT Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
0 374-0116 Chassis assembly $1,899.77 1 (includes1-41) usually ships 1-5 days
1 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 2 ships same day
2 174-8238 Main frame weldment $215.99 1 usually ships 1-5 days
3 174-8243 Bearing block $2.97 4 usually ships 4-14 days
4 174-8244 Bearing block plate $1.24 1 usually ships 4-14 days
5 274-7151 Solenoid mount assembly $121.34 1 usually ships 4-14 days
6a 174-8246 Deck switch assembly $38.38 1 usually ships 1-5 days
6b 274-2017 BEARING BLOCK/SWITCH PLATE $7.58 1 usually ships 1-5 days
6c 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
6d 999-0408 Nut 4-40 plain machine screw $0.99 2 ships same day
6e 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
6f 174-8264 Switch assembly (with pack conduit) $23.66 1 usually ships 4-14 days
7 274-6110 Transaxle base mount bracket $23.63 2 usually ships 1-5 days
8 274-1704 Transaxle mount bracket $8.69 2 usually ships 1-5 days
9 174-1523 3 1/2 inch caster $25.14 2 ships same day
10 174-7156 Upper lifting arm $47.10 1 usually ships 1-5 days
11 274-7650 Deck lift weldment $148.13 1 usually ships 4-14 days
12 174-7157 Retaining ring $0.97 2 usually ships 1-5 days
13 174-7158 8 inch drag chain stainless steel $3.77 1 usually ships 1-5 days
14 174-7159 Wheel 8 x 2 inch urethane $139.73 2 ships same day
15 174-7160 Square keyway $2.48 2 usually ships 1-5 days
16 174-3885 Solution valve assembly $101.76 1 usually ships 4-14 days
17 174-7161 Cotter pin $1.20 1 usually ships 1-5 days
18 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
19 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 12 ships same day
20 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
21 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
22 174-8193 Washer .390 x .880 x .062 flat $0.86 3 usually ships 4-14 days
23 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
24 174-8250 Washer helical 5/16 stainless steel $0.86 8 usually ships 1-5 days
25 174-7162 Yoke clevis with pin $16.43 1 usually ships 1-5 days
26 999-1363 Washer 7/8 flat stainless steel $3.48 2 ships same day
27 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 ships same day
28 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 1 ships same day
29 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 8 ships same day
30 999-1344 Nut 1/4-20 acorn stainless steel $1.38 2 ships same day
31 999-0632 Washer 1/4 split lock stainless steel $0.99 12 ships same day
32 174-0588 Washer 9/16 x 1-1/16 x 3/64 flat pleated $0.97 1 usually ships 4-14 days
33 174-1167 Washer 9/32 x 19/32 flat stainless steel $0.70 1 ships same day
34 174-8251 Washer flat stainless steel $0.86 14 ships same day
35 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated $0.99 4 ships same day
36 274-9506 24v transaxle $808.52 1 usually ships 1-5 days
37 174-2234 Cord clip $3.48 1 usually ships 1-5 days
38 174-0200 Cotter pin $1.20 1 usually ships 4-14 days
39 174-5862 Clevis pin $3.09 1 usually ships 4-14 days
40 999-0714 Nut 1/2-20 hex jam stainless steel $1.05 1 ships same day
41 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel $3.47 2 usually ships 11-24 days
