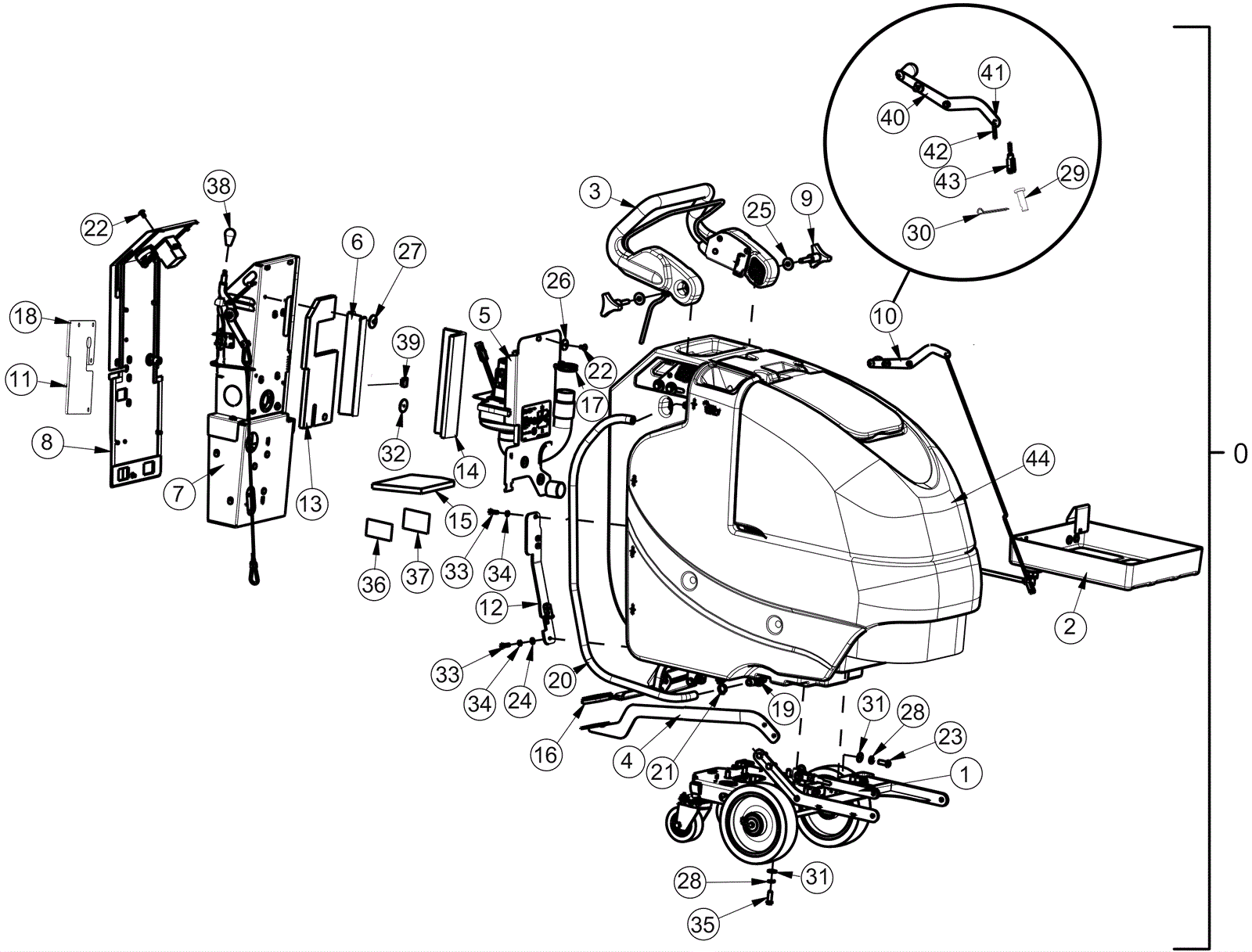

E20 SPORT Traction Drive Base Assembly

#PartDescriptionPriceReqNotesAvailability
0a 374-0366 E1720 TRAC DRV MAIN ASSY, 120V CHARGER $4,206.10 1 (includes 1-44) usually ships 1-5 days
0b 174-3710 230V charger assembly $4,253.00 1 (includes 1-44) usually ships 4-14 days
1 374-0116 Chassis assembly $1,899.77 1 usually ships 1-5 days
2 174-8207 Battery tray assembly $57.32 1 usually ships 4-14 days
3 274-9128 Handle assembly $486.26 1 usually ships 1-5 days
4 174-8209 Lift pedal weldment $49.88 1 usually ships 4-14 days
5 174-8210 Vac motor assembly $260.09 1 usually ships 4-14 days
6 174-8211 Inside cover bracket $15.05 1 usually ships 1-5 days
7 174-7144 Electrical box assembly $2,028.30 1 usually ships 1-5 days
8 174-7145 Electrical box cover assembly $312.37 1 usually ships 1-5 days
9 174-8214 Knob 3/8-16 stud $7.24 2 usually ships 4-14 days
10 174-8215 Solution control assembly $48.53 1 (includes 29-30, 41-43) usually ships 1-5 days
11 174-8216 Power cord mount bracket $9.90 1 usually ships 1-5 days
12 274-6436 Lift pedal bracket assembly $78.25 1 usually ships 1-5 days
13 174-8219 Foam cover with adhesive $5.60 1 usually ships 1-5 days
14 174-8220 1/2 inch foam cover $3.57 1 usually ships 1-5 days
15 174-8222 1/2 inch foam cover $4.55 1 usually ships 1-5 days
16 174-0102 Pedal pad $5.86 1 usually ships 4-14 days
17 174-3354 Hose clamp $3.28 1 ships same day
18 174-8223 Strain relief $0.97 1 usually ships 4-14 days
19 174-8224 Fitting 1/2 barb 3/4 mpt $1.58 1 usually ships 4-14 days
20 174-8225 Hose 1/2 ID x 42 inch clear $6.45 1 usually ships 4-14 days
21 174-8226 3/4 inch hose clamp $1.75 2 usually ships 4-14 days
22 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 10 ships same day
23 999-0616 Screw 3/8-16 x 5/8 socket head alloy plain finish $0.99 2 ships same day
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
25 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
26 174-0536 Washer 1/4 $0.97 3 usually ships 4-14 days
27 174-5259 Washer #10 helical $0.97 1 usually ships 4-14 days
28 999-0034 Washer 3/8 split lock plain finish $1.82 6 ships same day
29 174-3219 Cotter pin .06 x .75 $1.20 1 ships same day
30 174-2756 Clevis pin 3/16 x 19/32 $0.97 1 usually ships 4-14 days
31 174-5259 Washer #10 helical $0.97 2 usually ships 4-14 days
32 999-0464 Washer 3/16 flat plain finish $0.99 2 ships same day
33 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
34 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
35 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
36 174-5775 Serial nameplate decal $1.24 1 usually ships 1-5 days
37 174-8228 Clear laminate decal $2.57 1 usually ships 1-5 days
38 174-0387 Knob $9.31 1 usually ships 4-14 days
39 174-1121 Cord clip $1.82 1 usually ships 4-14 days
40 174-8231 Solution control lever assembly $31.33 1 usually ships 4-14 days
41 174-8232 Nut 3/16 inch push on washer cap $1.56 1 usually ships 1-5 days
42 174-8233 Solution control rod $8.69 1 usually ships 4-14 days
43 174-8234 Yoke 3/16 x 10-32 clevis $2.73 1 usually ships 4-14 days
44 174-8230 Base assembly $663.55 1 usually ships 1-5 days
