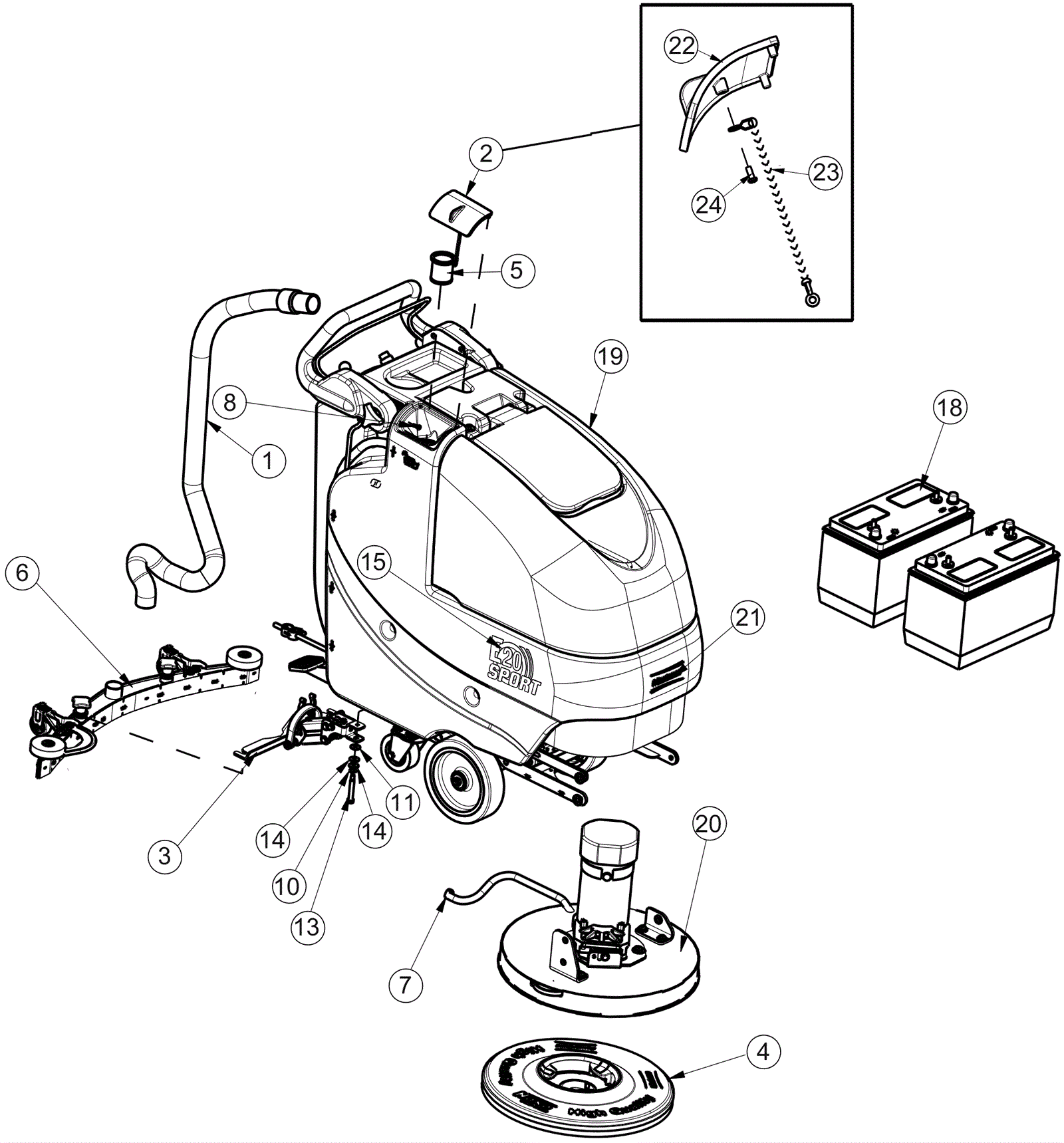

E20 SPORT Main Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8186 Recovery vac hose with cuff (clear) $31.94 1 ships same day
2 174-8187 Solution tank lid assembly $15.18 1 (includes 22-24) usually ships 4-14 days
3 174-8343 Squeegee lift mechanism assembly $193.37 1 ships same day
4a 174-8168 Pad driver $114.42 1 usually ships 4-14 days
4b 174-3897 20 inch surface prep maroon floor pad $24.52 1 usually ships 4-14 days
5 174-8189 Fill port filter $10.68 1 usually ships 4-14 days
6 274-9436 34 inch squeegee assembly curved $412.08 1 usually ships 4-14 days
7 997-2001 Hose clamp $2.42 1 ships same day
8 174-8192 Screw 10 x 3/4 stainless steel $0.97 1 usually ships 4-14 days
10 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
11 174-8193 Washer .390 x .880 x .062 flat $0.86 1 usually ships 4-14 days
13 174-8194 Bolt 5/16-18 X 2 3/8 shoulder $3.06 1 usually ships 4-14 days
14 999-1363 Washer 7/8 flat stainless steel $3.48 2 ships same day
15 174-7139 E20 Sport decal $7.25 2 ships same day
18a 162-0057 12V 150Ah wet battery (SNSR) $402.47 2 ships same day
18b 162-0045 12V 140Ah AGM battery $554.09 2 ships same day
19 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price 1 usually ships 3-26 days
20 374-0345 20 inch deck assembly $1,096.52 1 usually ships 4-14 days
21 174-8198 Minuteman decal $3.84 1 usually ships 4-14 days
22 174-8164 Solution tank lid $7.53 1 usually ships 4-14 days
23 174-8199 Beaded chain with eyelets stainless steel $3.57 1 usually ships 4-14 days
24 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 1 ships same day
N/S 174-8196 Jumper cable assembly red 4G 12 inch $20.16 1 usually ships 4-14 days
N/S 174-8197 Battery cable assembly $41.05 1 usually ships 4-14 days
