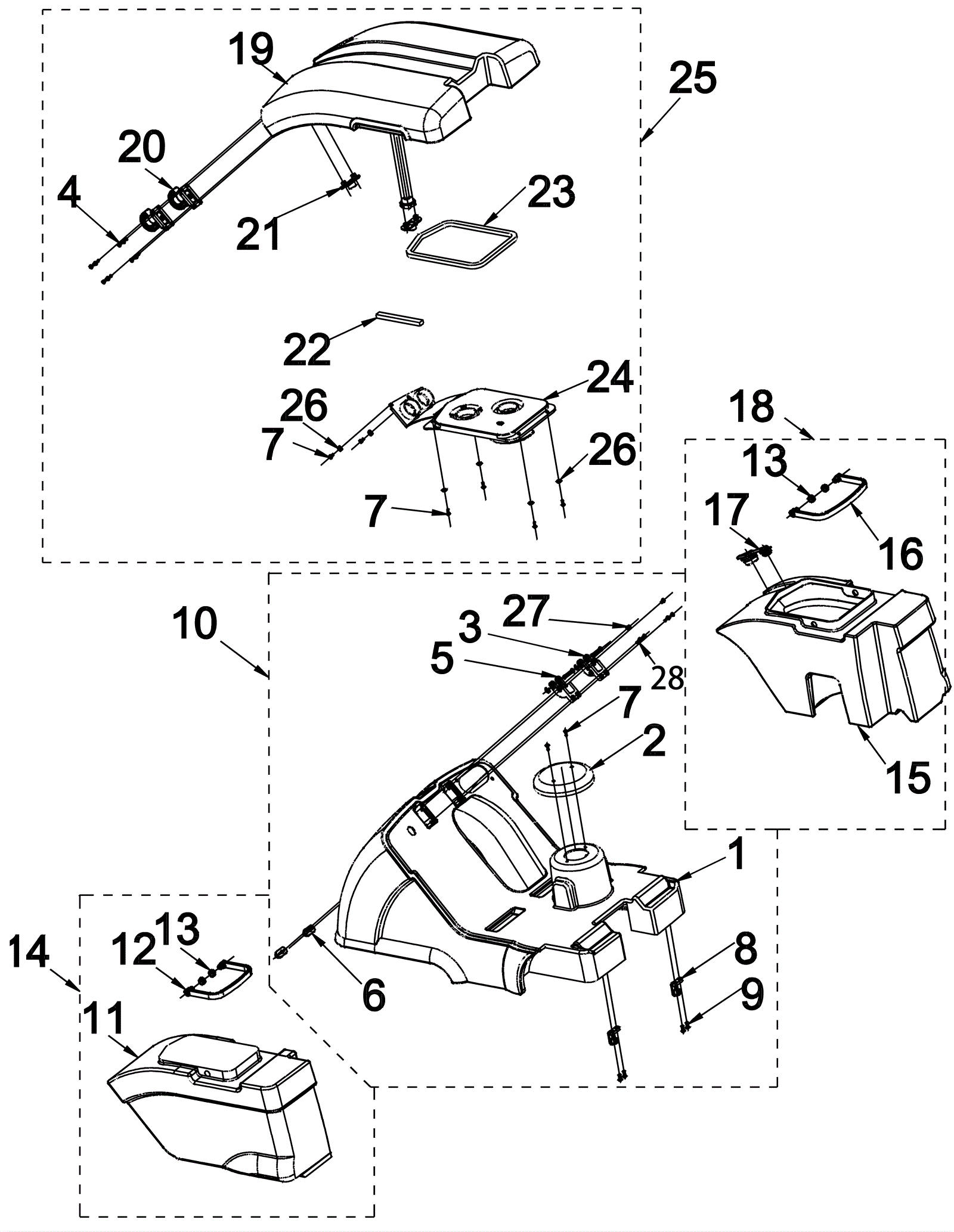

PORT A SCRUB Tank Assembly - Version 2 Electric and Battery Model

#PartDescriptionPriceReqNotesAvailability
1 174-9111 Bottom housing $382.28 1 usually ships 1-5 days
2 374-2798 CAP-V.M $1.75 1 usually ships 1-5 days
3 274-0556 HINGE-YOKE-LID RIGHT $5.82 1 usually ships 12-16 days
4a 374-1431 SCR-ST-A M3.5 X 13MM PH SS $1.03 6 (version 2 electric model) usually ships 1-5 days
4b 174-9149 Screw M3.5 x 25mm self tapping $1.05 12 (battery model) usually ships 12-16 days
5 274-0558 HINGE-YOKE LIDE LEFT $5.82 1 usually ships 12-16 days
6 174-9112 Bottom housing mounting plate $1.08 2 usually ships 1-5 days
7 374-1431 SCR-ST-A M3.5 X 13MM PH SS $1.03 8 usually ships 1-5 days
8 274-1019 BRACKET-HOUSING $6.44 2 usually ships 12-16 days
9 374-1391 SCR-CRCSK-M4X12 STEEL $1.00 4 usually ships 12-16 days
10 174-9111 Bottom housing $382.28 1 (includes 1-9 and 27) usually ships 1-5 days
11 174-9114 Solution tank $152.33 1 usually ships 1-5 days
12 174-9115 Solution tank handle $3.93 1 usually ships 12-16 days
13 174-9116 Spacer $1.44 4 usually ships 1-5 days
14 274-8299 TANK - FRESH ASSY $308.05 1 (includes 11-13) usually ships 1-5 days
15 174-9117 Recovery tank $190.06 1 usually ships 1-5 days
16 174-9118 Recovery tank handle $6.11 1 usually ships 1-5 days
17 274-0408 CAP-COLLECTION TANK $4.38 1 usually ships 12-16 days
18 274-8610 TANK - COLLECTION ASSY $348.98 1 (includes 13 and 15-17) usually ships 1-5 days
19 274-8976 LID $435.58 1 usually ships 1-5 days
20 274-0557 HINGE-HOOK-LID $5.82 2 usually ships 12-16 days
21 374-1507 GUIDE-HOSE $1.16 2 usually ships 1-5 days
22 274-6155 GASKET-FRESH $70.96 1 usually ships 1-5 days
23 274-5792 GASKET-COLLECTION $71.71 1 usually ships 12-16 days
24a 174-9119 Float holder assembly $33.41 1 (version 2 electric model) usually ships 1-5 days
24b 274-9949 Holder float assembly $21.85 1 (battery model) usually ships 1-5 days
25a 174-9120 Top cover assembly $792.47 1 (version 2 electric model) (includes 4, 7, 19-24 and 26) usually ships 1-5 days
25b 274-9950 Top cover assembly $327.83 1 (battery model) usually ships 1-5 days
26 374-1444 WSR, 4.0 x 8.0 x 0.5 304 SS $2.00 6 usually ships 12-16 days
27a 374-1430 SCR-PH, ST, 3.5x10mm 304 SS $1.00 2 (version 2 electric model) usually ships 1-5 days
27b 374-1431 SCR-ST-A M3.5 X 13MM PH SS $1.03 2 (battery model) usually ships 1-5 days
28a 274-9951 Screw M3-.5 x 18mm $1.03 4 (battery model) usually ships 1-5 days
28b 374-1431 SCR-ST-A M3.5 X 13MM PH SS $1.03 6 (version 2 electric model) usually ships 1-5 days
