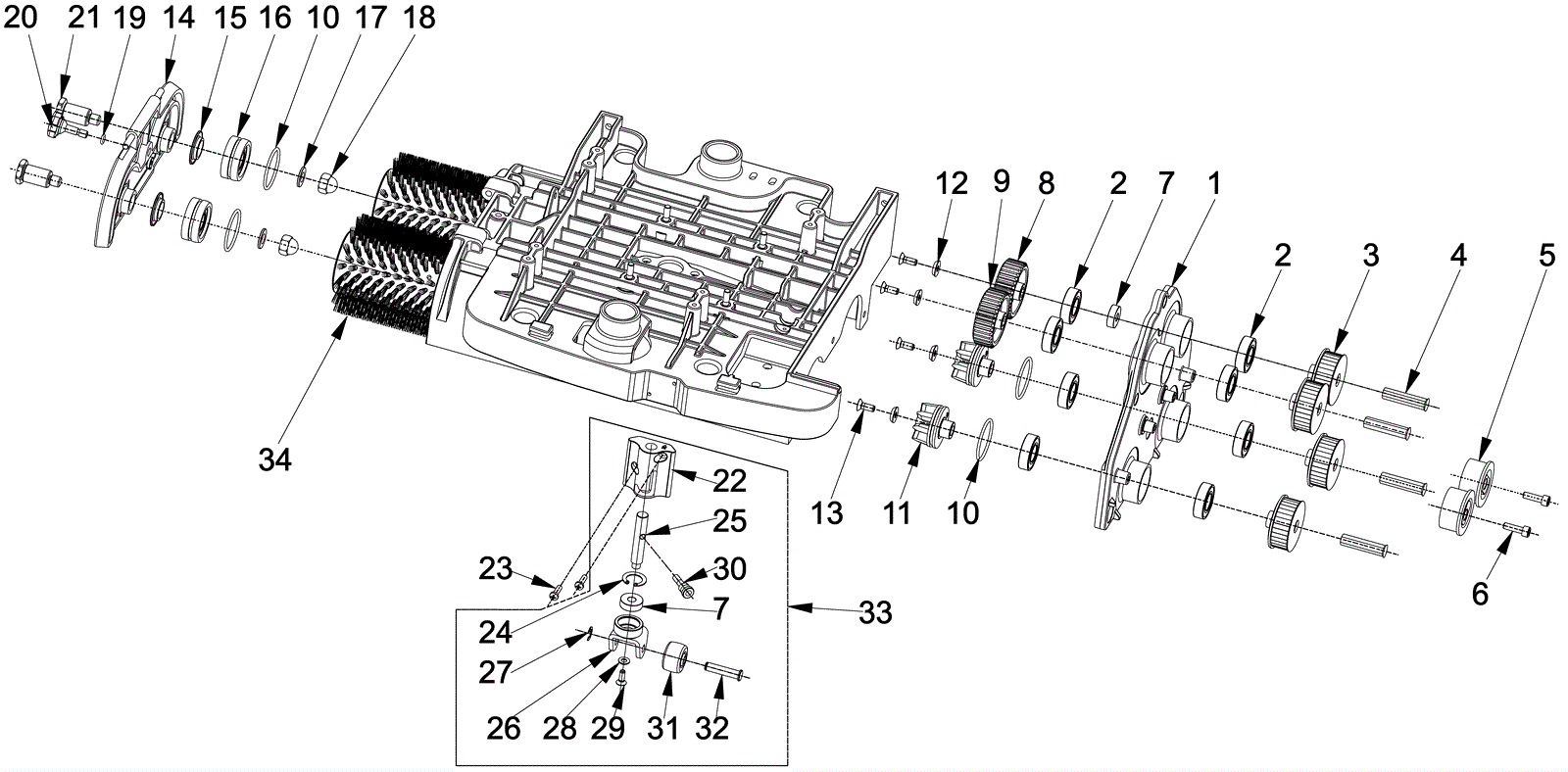

PORT A SCRUB Brush Head Assembly - Version 2 Electric and Battery Model

#PartDescriptionPriceReqNotesAvailability
1 174-9088 Gear support housing $277.89 1 usually ships 12-16 days
2 174-8559 Bearing 6003 seal $3.30 8 usually ships 12-16 days
3 274-3538 Sprocket $44.61 4 usually ships 1-5 days
4 274-0334 keyway $4.29 4 usually ships 1-5 days
5 274-5524 Idler assembly $55.42 2 usually ships 1-5 days
6 374-1418 Screw $1.08 2 usually ships 1-5 days
7 274-3331 Bearing $21.54 2 usually ships 12-16 days
8 274-7885 GEAR-LH $180.69 1 usually ships 1-5 days
9 274-7884 Right hand gear $189.72 1 usually ships 12-16 days
10 374-1805 O-ring $1.38 4 usually ships 12-16 days
11 274-1844 Drive pulley $10.04 2 usually ships 12-16 days
12 374-1485 Washer $2.17 4 usually ships 12-16 days
13 999-0773 Screw M6-1 x 16mm flat socket head stainless steel $0.99 4 ships same day
14 274-5614 COVER IDLER END $72.02 1 usually ships 1-5 days
15 374-1855 SPACER-IDLER END $1.38 2 usually ships 12-16 days
16 274-4623 IDLER PULLEY, BRUSH $38.46 2 usually ships 12-16 days
17 374-1446 WSR-SS $1.05 2 usually ships 12-16 days
18 274-0485 NUT-CAP M10 DOMED-SS $7.14 2 usually ships 12-16 days
19 374-1450 O-RING 6 X 2.0MM $1.05 1 usually ships 12-16 days
20 274-2432 KNOB IDLER COVER (14 inch) $21.25 1 usually ships 1-5 days
21 174-9090 Idler pin $53.32 2 usually ships 1-5 days
22 374-2778 BRACKET-PARKING WHEEL $3.19 1 usually ships 12-16 days
23 374-1433 CRPH SELF TAPPING SCREW - 4.8X16 $1.05 2 usually ships 1-5 days
24 174-9091 Clip $1.05 1 usually ships 1-5 days
25 174-9092 Parking stand pin $7.97 1 usually ships 1-5 days
26 274-2456 BRACKET-CASTOR $17.58 1 usually ships 1-5 days
27 374-1494 CIRCLIP, PORT A SCRUB $1.00 1 usually ships 1-5 days
28 374-1622 WASHER-CASTOR $1.62 1 usually ships 1-5 days
29 999-1601 Screw M5 x 10 flat head stainless steel $0.99 1 ships same day
30 274-0229 KNOB-PARKING WHEEL $5.11 1 usually ships 1-5 days
31 374-1623 PARKING WHEEL $1.41 1 usually ships 12-16 days
32 274-1058 PIN-WHEEL $8.57 1 usually ships 1-5 days
33 274-5324 KIT-PARKING WHEEL $52.45 1 (includes 7, 22 and 24-32) usually ships 12-16 days
34a 274-8698 BRUSH-MEDIUM SCRUB BLUE (SET OF 2) $295.05 2 usually ships 12-16 days
34b 274-8605 BRUSH-LIGHT SCRUB BLACK (SET OF 2) $347.65 2 usually ships 12-16 days
34c 274-8854 BRUSH-HEAVY SCRUB GREY (SET OF 2) $350.95 2 usually ships 1-5 days
