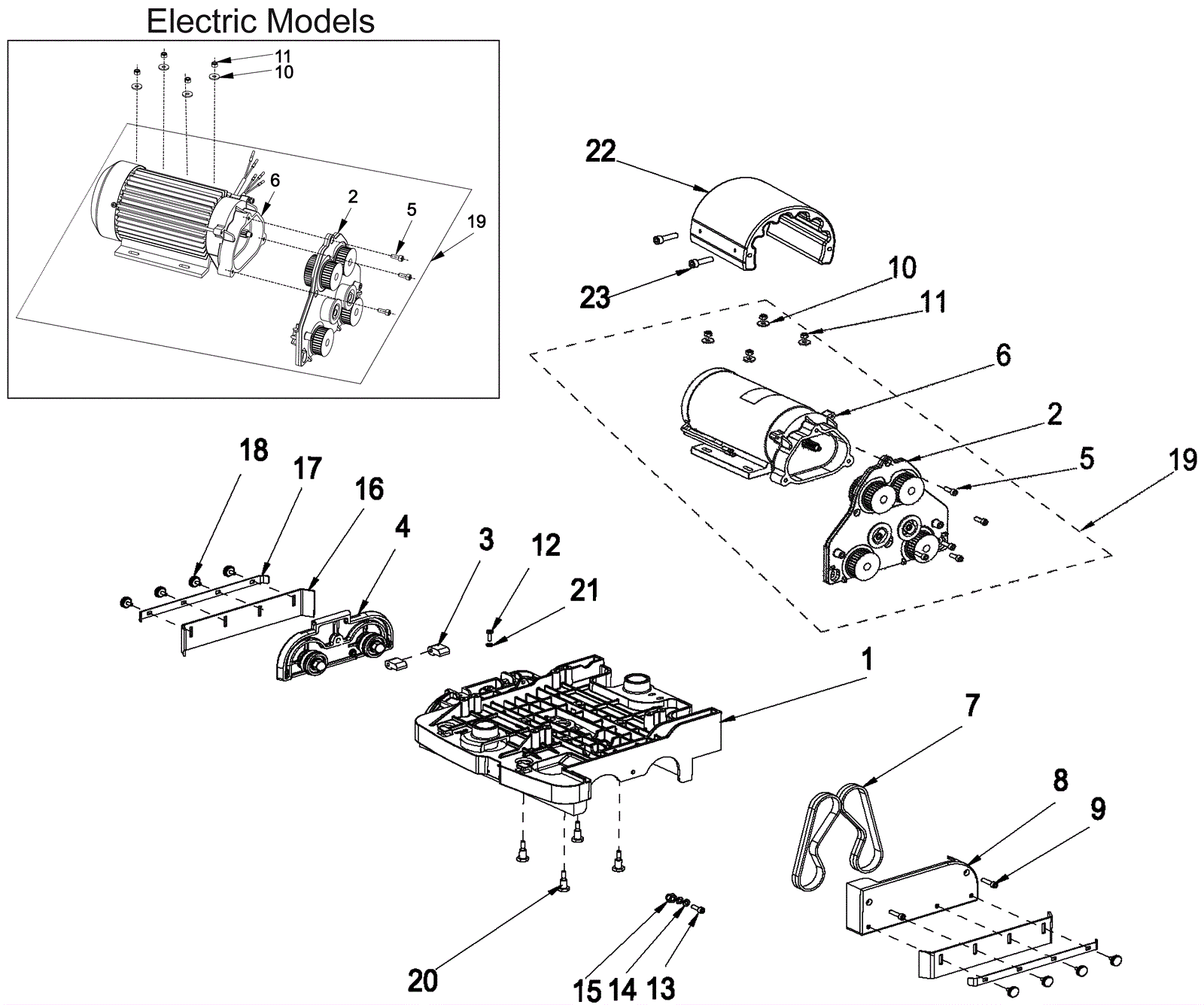

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
274-8467
|
HOUSING - BRUSH |
$365.41
|
1 |
(version 2 electric models) |
usually ships 1-5 days |
1b |
174-9080
|
Brush housing with insert assembly |
$303.45
|
1 |
(battery models) |
usually ships 1-5 days |
1c |
274-9543
|
HOUSING-BRUSH |
$500.68
|
1 |
(version 1 electric models) |
usually ships 1-5 days |
2a |
174-9063
|
Gear support housing assembly |
$1,135.17
|
1 |
(version 2 electric models and battery models) |
usually ships 1-5 days |
2b |
274-9062
|
ASSY-BRUSH DRIVE SUPPORT |
Call for price
|
1 |
(version 1 electric models) |
usually ships 1-5 days |
3 |
274-0449
|
Hinge |
$4.75
|
2 |
|
usually ships 1-5 days |
4a |
274-7686
|
IDLER SUPPORT ASSY BRUSH |
$239.99
|
1 |
(version 2 electric models) |
usually ships 12-16 days |
4b |
174-9081
|
Brush idler support assembly |
$238.01
|
1 |
(battery models) |
usually ships 1-5 days |
4c |
N/A
|
Not available |
Call for price
|
1 |
(version 1 electric models) (brush idler support assembly) |
usually ships 3-26 days |
5 |
174-0221
|
1/4 brass fitting |
$3.94
|
3 |
|
usually ships 12-16 days |
6a |
274-9705
|
BRUSH MOTOR |
$1,488.40
|
1 |
(version 2 electric models) |
usually ships 1-5 days |
6b |
174-9082
|
Brush motor with connector |
$2,432.59
|
1 |
(battery models) |
usually ships 1-5 days |
6c |
274-9410
|
BRUSH MOTOR (14 inch) 115V |
$966.53
|
1 |
(version 1 electric models) |
usually ships 1-5 days |
7a |
274-6684
|
Belt |
$56.02
|
2 |
(version 2 electric models and battery models) |
usually ships 1-5 days |
7b |
274-6032
|
BELT-DRIVE 475-5M-15HTD |
$66.31
|
2 |
(version 1 electric models) |
usually ships 1-5 days |
8a |
274-3356
|
COVER W/SEAL |
$27.08
|
1 |
(version 2 electric models and battery models) |
usually ships 1-5 days |
8b |
274-3701
|
COVER-BELT |
$23.93
|
1 |
(version 1 electric models) |
usually ships 1-5 days |
9 |
374-1419
|
SCR-CAP HEX SOC HEAD M6X25 |
$1.08
|
2 |
|
usually ships 12-16 days |
10 |
374-1488
|
WSR-6.4X18X2, PORT A SCRUB |
$2.44
|
4 |
|
usually ships 1-5 days |
11 |
374-1455
|
HEX NYLOCK NUT-STEEL GR.8 -M6 -LOW |
$1.05
|
4 |
|
usually ships 1-5 days |
12 |
374-1402
|
SCR-CR PH-SS |
$1.00
|
1 |
|
usually ships 1-5 days |
13 |
174-0221
|
1/4 brass fitting |
$3.94
|
1 |
|
usually ships 12-16 days |
14 |
374-1442
|
WASHER STEEL - 6.4X12.5X1.6 |
$1.08
|
2 |
|
usually ships 1-5 days |
15 |
374-1437
|
DOMED CAP NUT-SS 304-M6 |
$2.24
|
1 |
|
usually ships 1-5 days |
16 |
274-5292
|
SQ SIDE PAS 14/E20C |
$22.18
|
2 |
|
usually ships 12-16 days |
17a |
274-0289
|
STRIP-FLASH GUARD |
$4.38
|
2 |
(version 2 electric models and battery model) |
usually ships 12-16 days |
17b |
274-0289
|
STRIP-FLASH GUARD |
$4.38
|
2 |
(version 1 electric models) |
usually ships 12-16 days |
18 |
374-2751
|
Knob |
$2.95
|
8 |
|
ships same day |
19a |
174-9087
|
Geared motor with drive |
$3,813.29
|
1 |
(version 2 electric models) |
usually ships 1-5 days |
19b |
174-9084
|
Geared motor |
$2,435.18
|
1 |
(battery models) |
usually ships 1-5 days |
19c |
374-0037
|
MOTOR-GEARED 115 VOLT |
$907.66
|
1 |
(version 1 electric models) |
usually ships 1-5 days |
20 |
174-9085
|
Brush housing stud |
$1.89
|
4 |
(version 2 electric models and battery models) |
usually ships 1-5 days |
21 |
374-1486
|
WSR-5.2X10X1.6, PORT A SCRUB |
$2.44
|
1 |
|
usually ships 1-5 days |
22 |
174-9086
|
Motor weight |
$71.39
|
1 |
(battery models) |
usually ships 1-5 days |
23 |
999-1675
|
Screw M6-1 x 30mm socket head stainless steel |
$0.99
|
2 |
(battery models) |
usually ships 1-5 days |
