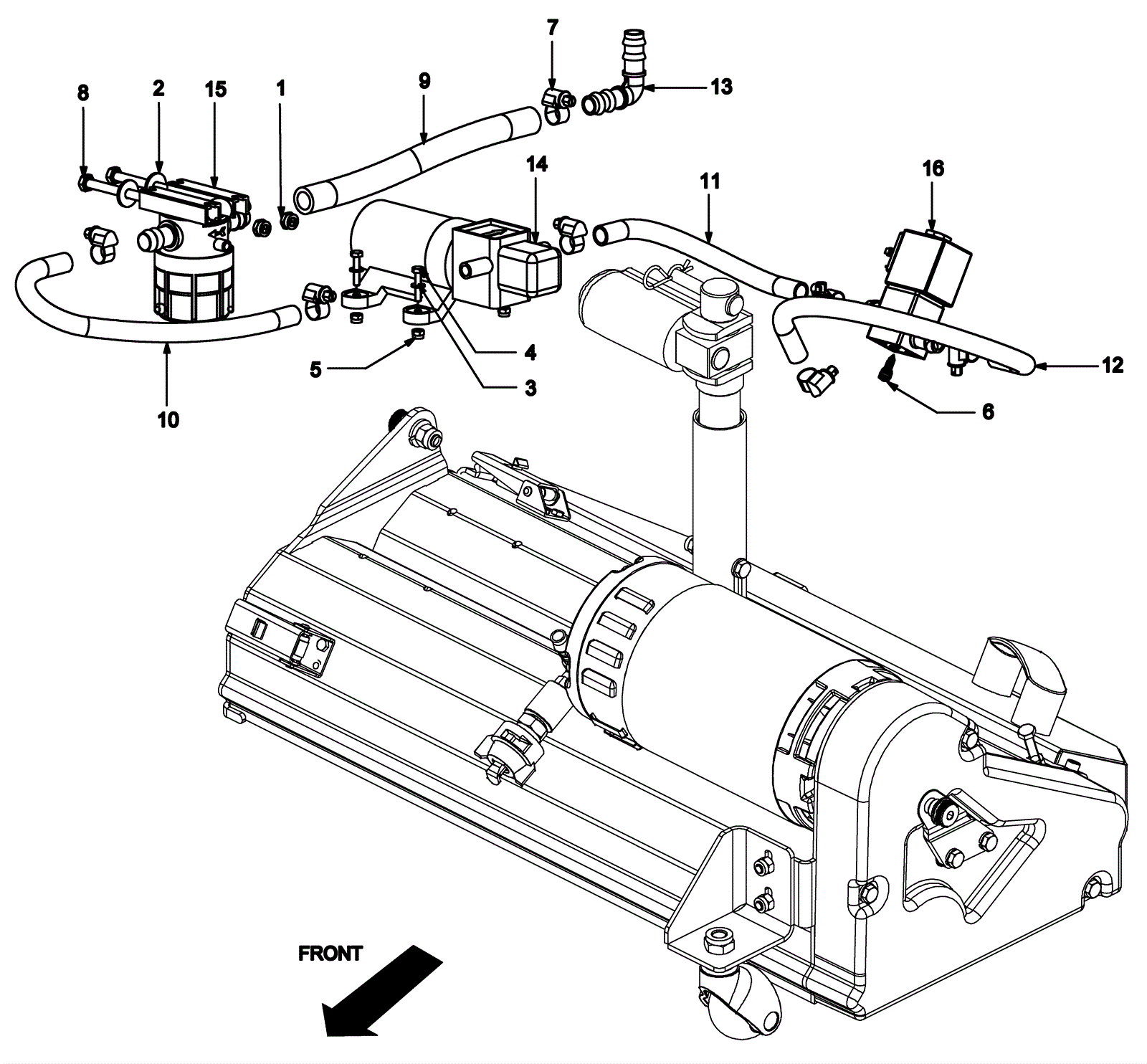

E RIDE 21 Solution System Assembly (Cylindrical)

#PartDescriptionPriceReqNotesAvailability
1 174-9733 Nut M6 $0.95 2 usually ships 4-14 days
2 174-9781 Washer M6 flat $0.95 2 usually ships 4-14 days
3 174-9830 Washer M4 flat $0.95 4 usually ships 4-14 days
4 174-9994 Screw M4 x 60mm $3.74 4 usually ships 4-14 days
5 174-9832 Nut M4 self locking $0.95 4 usually ships 4-14 days
6 174-9911 Screw M4 x 14mm trilobate $2.98 2 usually ships 4-14 days
7 174-9834 Hose clamp $3.01 8 usually ships 4-14 days
8 174-9835 Screw M6 x 75mm $1.37 2 usually ships 4-14 days
9 174-9836 16 meter braided hose (clear) $7.74 1 usually ships 4-14 days
10 174-9995 12 inch braided hose $4.63 1 usually ships 4-14 days
11 174-9996 35 inch braided hose $13.20 1 usually ships 4-14 days
12 174-9997 11 inch braided hose $14.53 1 usually ships 4-14 days
13 174-9840 90 degree rubber holder $4.19 1 usually ships 4-14 days
14 174-9841 24V water pump $412.06 1 usually ships 4-14 days
15 174-9842 Water filter $53.78 1 ships same day
16 174-9843 24V Dc solenoid $106.87 1 usually ships 4-14 days
