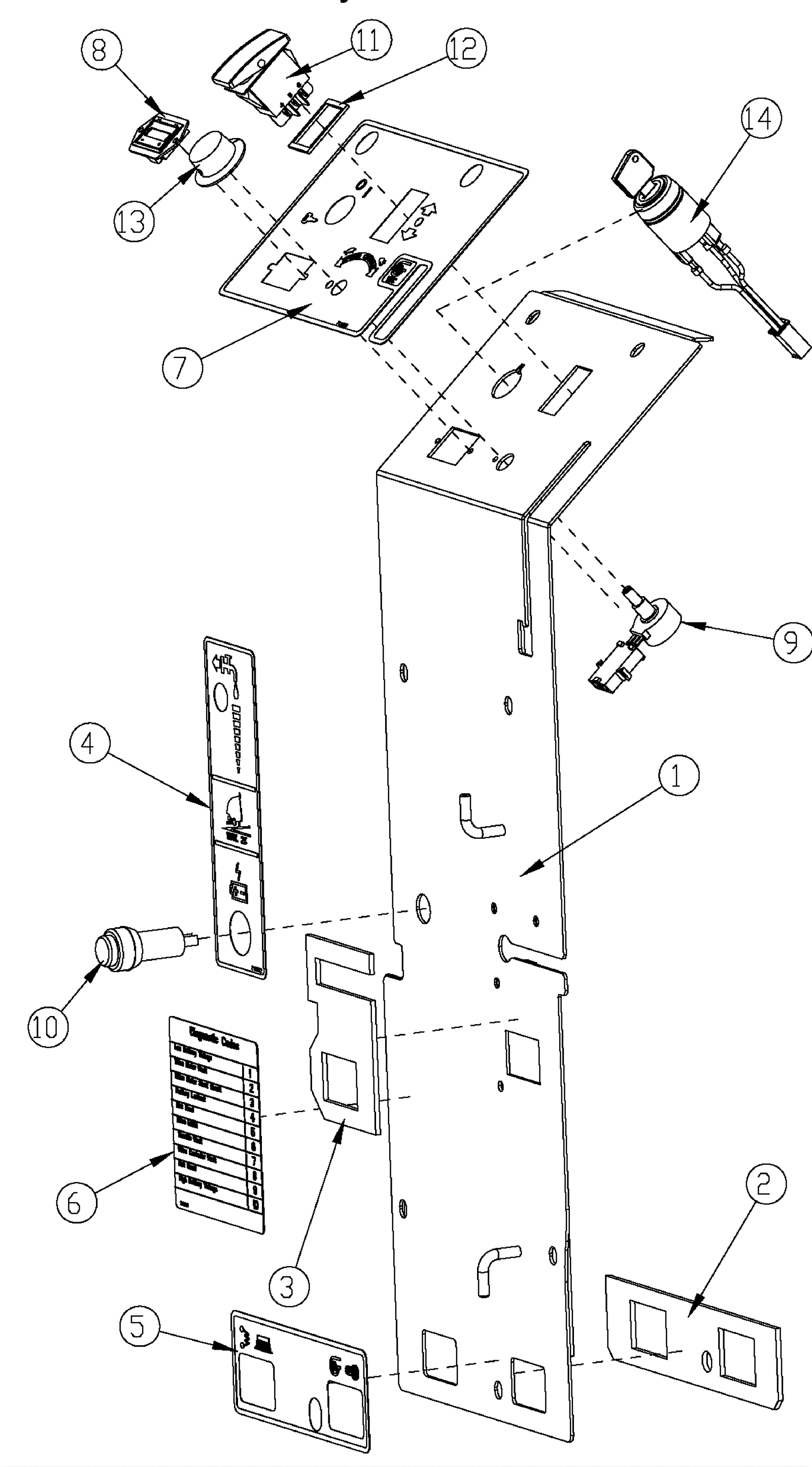

ECO 26 Electrical Box Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-7152 Electrical cover weldment $112.76 1 usually ships 1-5 days
2 174-8294 Circuit breaker gasket $2.37 1 usually ships 1-5 days
3 174-8295 Charger cord plate gasket $2.37 1 usually ships 1-5 days
4 174-8296 Electrical box decal $2.57 1 usually ships 1-5 days
5 374-2319 Circuit breaker decal $2.57 1 usually ships 1-5 days
6a 274-0306 Diagnostic code decal Call for price 1 (WD26) usually ships 1-5 days
6b 174-3892 Narrow diagnostic codes decal $4.12 1 (ECO 26) usually ships 4-14 days
7a 174-7178 Decal $6.99 1 (WD26) usually ships 1-5 days
7b 174-3891 E20 cylindrical dashboard decal $6.83 1 (ECO 26) usually ships 4-14 days
8 274-6252 Battery gauge $70.34 1 usually ships 4-14 days
9 174-6335 Speed control potentiometer assembly $57.25 1 usually ships 4-14 days
10 174-8299 Charge status indicator $24.94 1 usually ships 4-14 days
11 274-4726 Directional switch $36.89 1 ships same day
12 374-2345 Directional switch gasket $3.20 1 usually ships 4-14 days
13 174-0259 Knob $7.99 1 usually ships 4-14 days
14a 274-7205 Keyswitch assembly w/ harness $43.02 1 usually ships 4-14 days
14b 174-7079 Key (set of 2) $20.30 1 usually ships 4-14 days
N/S 174-8383 Hour meter 24-277VDC/AC snap in $21.23 1 (optional) usually ships 1-5 days
