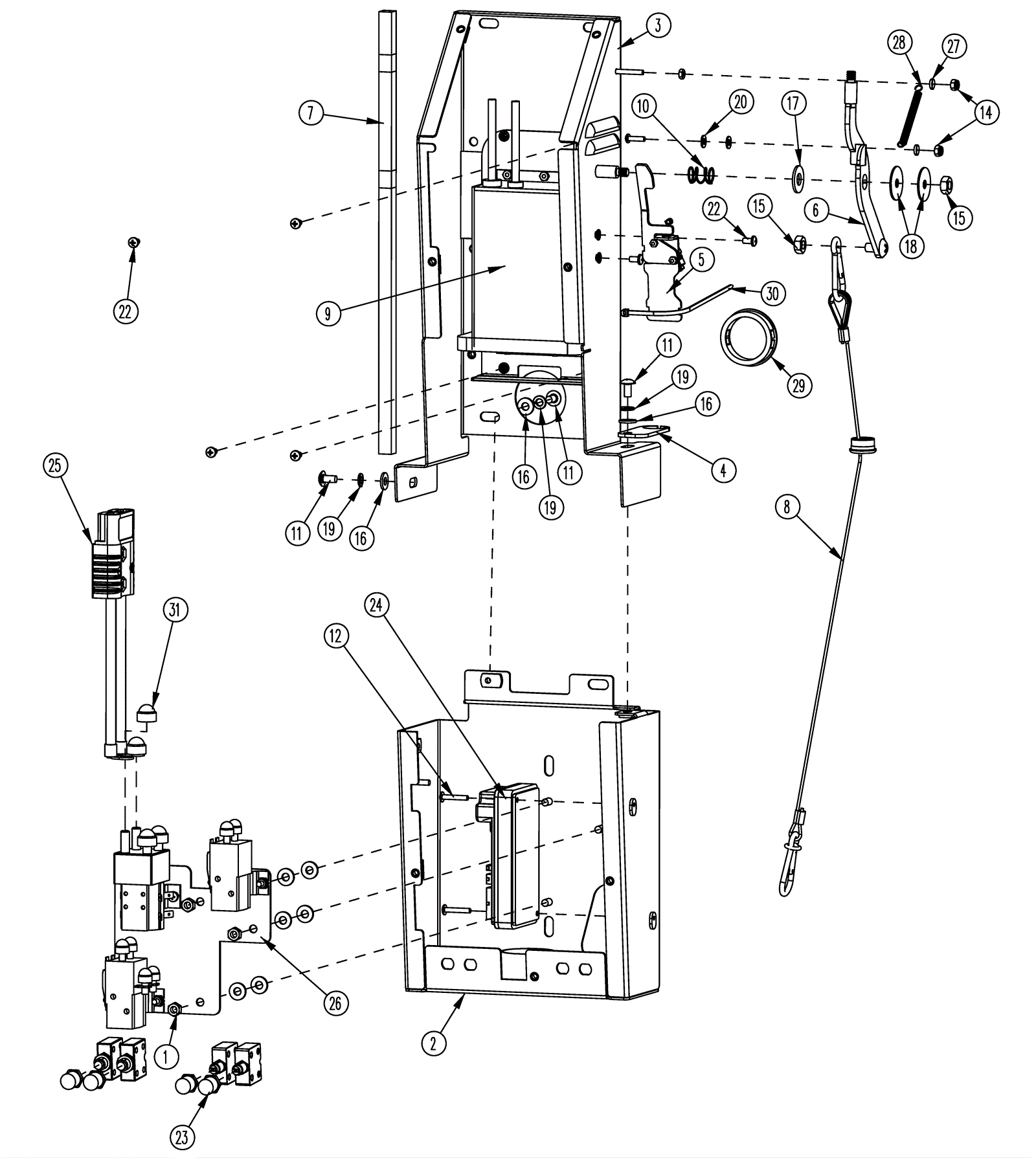

ECO 26 Electrical Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-9057 Nut 1/4-20 serated nylock $0.97 3 usually ships 1-5 days
2 174-8283 Bottom electrical box weldment $115.17 1 usually ships 1-5 days
3 174-8284 Upper electrical box weldment $115.28 1 usually ships 4-14 days
4 174-8285 Upper bushing mount bracket Call for price 1 (WD26) usually ships 1-5 days
5 174-8287 Vac switch assembly $49.73 1 usually ships 4-14 days
6 174-8128 Lever $37.73 1 usually ships 4-14 days
7 174-8288 Foam tape 1/2 x 16 1/2 inch $2.37 1 usually ships 4-14 days
8 274-4152 Squeegee cable assembly $31.92 1 usually ships 4-14 days
9 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price 1 usually ships 3-26 days
10 174-5749 Compression spring $3.17 1 usually ships 4-14 days
11 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 3 ships same day
12 174-5933 Screw #8-32 x 1 $0.97 2 usually ships 4-14 days
14 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
15 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
16 999-0016 Washer 1/4 flat plain finish $0.99 9 ships same day
17 999-0328 Washer 7/16 USS flat $0.99 1 ships same day
18 174-2255 Washer 5/16 x 7/8 x 3/64 flat $0.97 2 usually ships 4-14 days
19 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
20 174-0532 Washer 7/32 x 3/64 nylon $0.97 2 usually ships 4-14 days
22 999-0817 Screw 10-24 x 5/8 round head zinc plated $0.99 6 ships same day
23 174-5824 Circuit breaker boot $5.95 4 usually ships 4-14 days
24 274-8221 24V 70amp I-Drive controller $247.53 1 usually ships 4-14 days
25 174-8290 Wire assembly $59.25 1 usually ships 4-14 days
26 274-9856 Electrical panel assembly, E26ECO $401.75 1 usually ships 1-5 days
27 374-2258 Mount ring $2.37 2 usually ships 4-14 days
28 174-5235 Spring $3.63 1 usually ships 4-14 days
29 174-0255 Bushing $1.24 1 usually ships 1-5 days
30 997-2102 Cable tie $1.24 1 ships same day
31 174-8291 Nut cover safety cap M8 $1.40 2 usually ships 1-5 days
N/S 999-0308 Nut 8-32 plain $0.99 1 ships same day
N/S 999-0089 Washer #10 internal star lock zinc plated $0.99 6 ships same day
N/S 174-8373 24V main relay 2 pole 125 amp $99.90 1 usually ships 4-14 days
N/S 174-8375 24V brush motor relay 2 pole 80 amp $63.13 1 usually ships 4-14 days
N/S 174-8389 24V vacuum motor relay 1 pole 80 amp $59.67 1 usually ships 4-14 days
N/S 174-8165 Circuit breaker 4.0 amp (push button) $14.40 1 ships same day
N/S 274-1163 30amp circuit breaker $6.71 1 usually ships 4-14 days
N/S 174-5059 Circuit breaker 20 amp (push button) $5.70 1 ships same day
N/S 174-0230 Diode assembly $4.36 1 ships same day
N/S 174-8264 Switch assembly (with pack conduit) $29.58 1 usually ships 4-14 days
