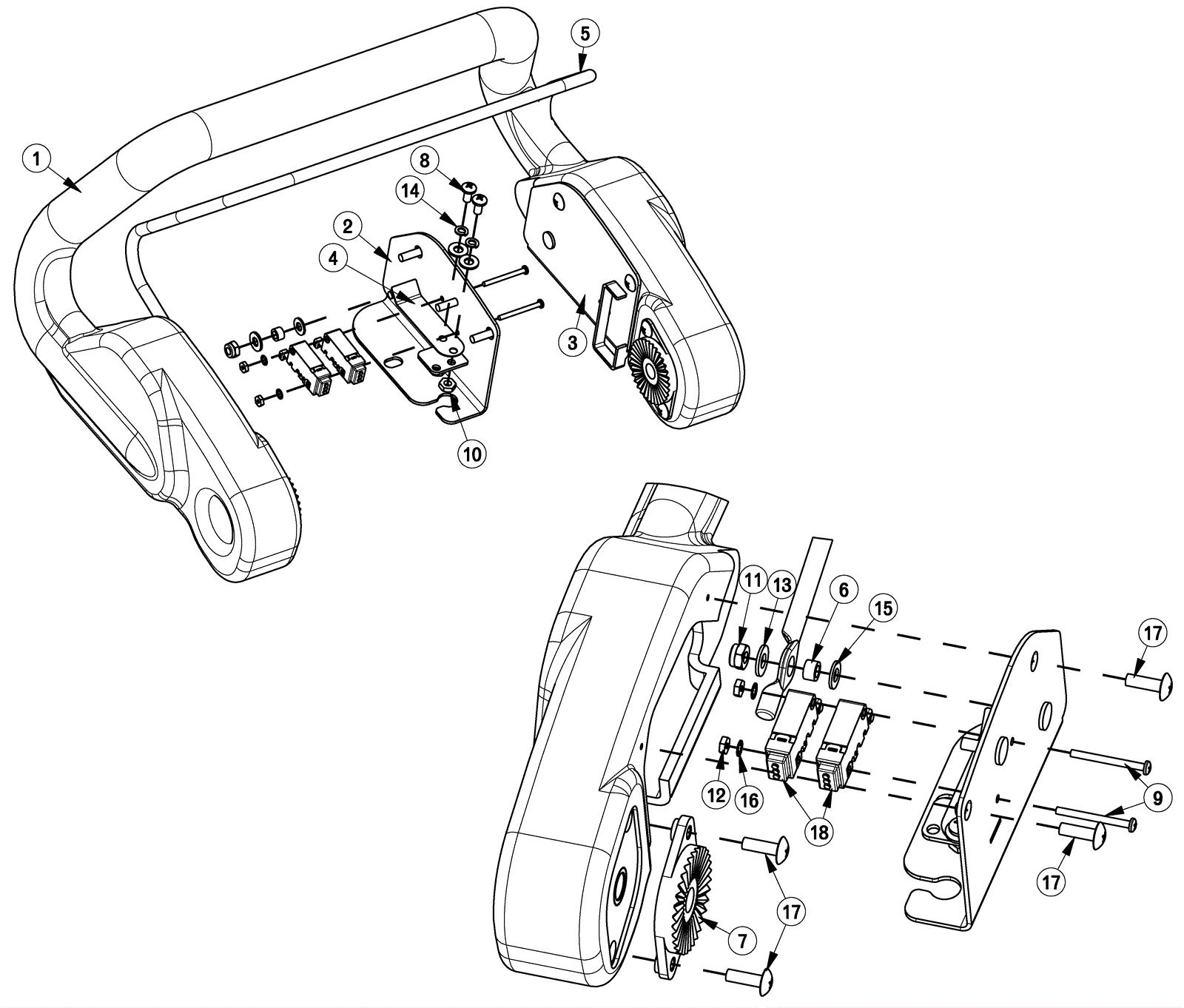

ECO 26 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8272 Handle $326.93 1 usually ships 1-5 days
2 174-8273 Right hand bail plate weldment $30.50 1 usually ships 1-5 days
3 174-8274 Left hand bail plate weldment $35.25 1 usually ships 1-5 days
4 174-8275 Leaf spring $6.55 2 ships same day
5 174-8276 Bail handle $24.14 1 usually ships 4-14 days
6 174-8277 Spacer $2.37 2 usually ships 4-14 days
7 174-8278 Handle pivot jaw $4.66 2 usually ships 1-5 days
8 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 4 ships same day
9 374-1056 SCR-MC 4-40 X 1.25 STL Z $0.97 2 usually ships 1-5 days
10 999-0460 Nut 10-32 hex $0.99 4 ships same day
11 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
12 999-0408 Nut 4-40 plain machine screw $0.99 2 ships same day
13 999-0006 Washer 3/16 flat zinc plated $0.99 6 ships same day
14 174-5259 Washer #10 helical $0.97 4 usually ships 4-14 days
15 174-0532 Washer 7/32 x 3/64 nylon $0.97 2 usually ships 4-14 days
16 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
17 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 10 ships same day
18a 174-9022 Brush deck switch $28.77 2 (WD26) usually ships 4-14 days
18b 274-3542 SWITCH ASY, MICRO ROLLER w/MATE N LOK $23.65 2 (ECO 26) usually ships 4-14 days
N/S 174-9183 Cable assembly 5 conductor 18G TD $82.49 1 usually ships 4-14 days
