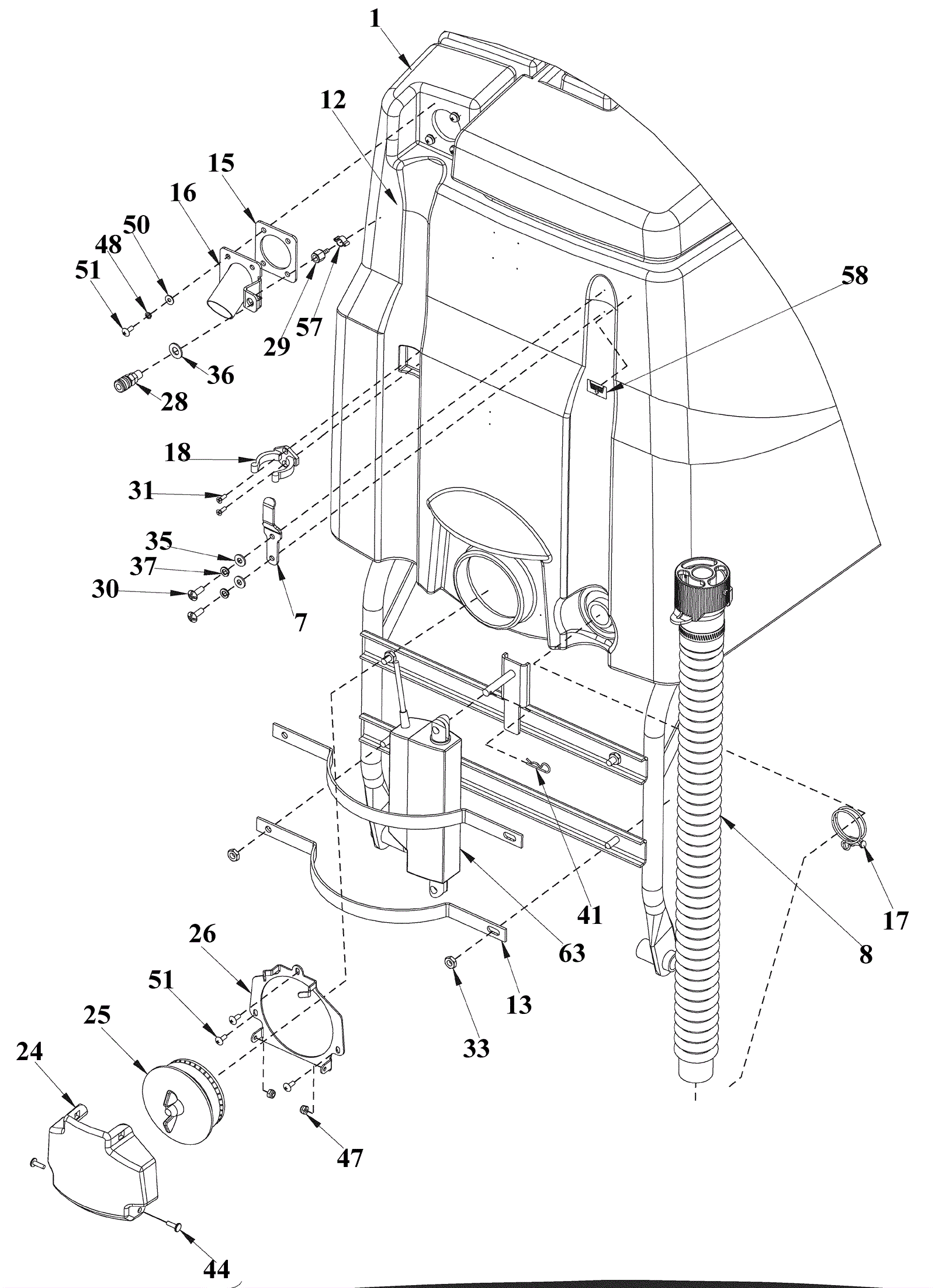

ERIDE 26 Recovery Tank Assembly II

#PartDescriptionPriceReqNotesAvailability
1 274-9374 RECOVERY TANK, SCV 24/26 $622.13 1 usually ships 1-5 days
7 274-2178 BRACKET - SCV 2426, RECOVERY DRAIN HOSE $27.65 1 usually ships 1-5 days
8 274-6808 RECOVERY TANK DRAIN HOSE ASSY-SCV 2426 W $94.37 1 usually ships 12-16 days
12 274-1445 HOSE-NYLO REINF 1/8 X 65 inch $5.23 1 usually ships 1-5 days
15 174-9610 Inlet weldment gasket $2.08 1 usually ships 12-16 days
16 174-9611 Inlet pipe weldment $43.13 1 usually ships 12-16 days
17 997-2000 Hose clamp $2.37 1 ships same day
18 174-5968 1 1/2 inch hose clip $6.34 1 ships same day
24 174-6445 Dump cap cover $43.49 1 usually ships 1-5 days
25 174-6447 4 inch plug assembly $39.12 1 usually ships 12-16 days
26 174-6448 Dump cover support ring $19.86 1 usually ships 1-5 days
28 174-3205 Quick connect 2202 coupler Female $22.19 2 ships same day
29 174-3230 1/8 barb x 1/8 FPT brass $5.88 2 usually ships 12-16 days
30 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
31 174-2271 Screw 8-32 x 1/2 $0.99 2 usually ships 12-16 days
33 999-0430 Nut 5/16-18 hex jam plain finish $0.99 4 ships same day
35 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
36 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
37 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
41 174-0201 Cotter pin $1.20 1 usually ships 12-16 days
44 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 2 ships same day
47 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
48 999-0089 Washer #10 internal star lock zinc plated $0.99 4 ships same day
50 999-0998 Washer #10 flat stainless steel $0.99 16 ships same day
51 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 16 ships same day
57 174-3231 Hose clamp 3/8 $1.64 2 usually ships 12-16 days
58 174-8961 Decal $4.08 1 usually ships 1-5 days
63 274-9023 ACTUATOR ASSEMBLY, 70mm 300N 24/36VDC $433.50 1 usually ships 12-16 days
