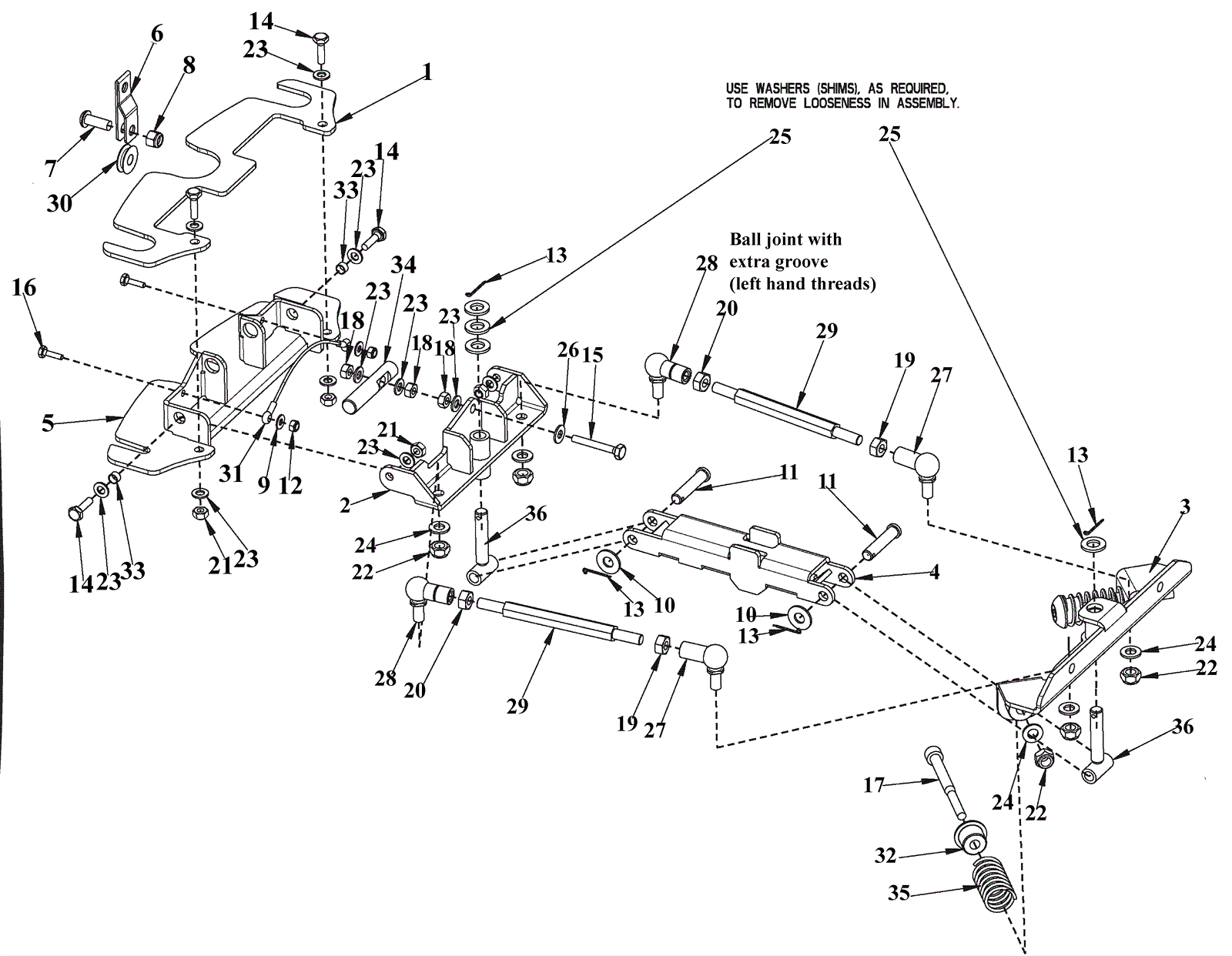

ERIDE 26 Squeegee Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-4313 SQUEEGEE MOUNT PLATE - LOWER, SCV 2426 $32.37 1 usually ships 12-16 days
2 274-5907 SQUEEGEE MECH. REAR WELDMENT - SCV 2426 $72.68 1 usually ships 1-5 days
3 274-5709 SQUEEGEE MECH. MOUNTING WDT-SCV 2426 $85.18 1 usually ships 1-5 days
5 274-6345 SQUEEGEE MOUNT WELDMENT-UPPER, SCV 2426 $78.10 1 usually ships 12-16 days
7 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish $1.14 1 ships same day
8 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
10 999-0328 Washer 7/16 USS flat $0.99 2 ships same day
11 374-1209 PIN-CLEVIS 7/16 X 2.00 ZINC  1.84 inch UNDER $0.97 2 usually ships 1-5 days
12 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 usually ships 12-18 days
13 997-2506 Cotter pin $0.99 4 ships same day
14 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
15 999-1692 Screw M8-1.25 x 50mm hex stainless steel $3.28 1 ships same day
16 374-0739 SCREW - MACHINE, HEX, M6-20, ZINC DICH $0.97 2 usually ships 1-5 days
17 274-0464 SCREW-SOCKET HEAD CAP ISO 4762-M10x110-1 $4.01 2 usually ships 1-5 days
18 999-1424 Nut M8-1.25 hex stainless steel $1.65 3 ships same day
19 999-1428 Nut M10-1.5 hex zinc finish $0.99 2 ships same day
20 274-0433 NUT-HEX METRIC M10 X 1.5 STL ZD $3.94 2 usually ships 1-5 days
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
22 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 6 ships same day
23 999-9097 Washer M8 flat stainless steel $0.99 11 ships same day
24 174-8888 Washer $4.62 6 usually ships 12-16 days
25 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel $3.47 4 usually ships 12-18 days
26 374-0813 WASHER - SERRATED, LOCKING, M8, $0.97 1 usually ships 1-5 days
27 274-1536 BALL JOINT - RH, M10 FEMALE THREADS $7.33 2 usually ships 1-5 days
28 274-2057 BALL JOINT - LH, M10 FEMALE THREADS $9.62 2 usually ships 1-5 days
29 274-1715 TURNBUCKLE - M10 THREADS, STEEL HEX BODY $22.57 2 usually ships 1-5 days
30 274-1956 ROLLER GUIDE $12.10 1 usually ships 1-5 days
31 274-3741 GUIDANCE ROPE $18.17 1 usually ships 1-5 days
32 274-1857 BUSHING - STEEL, SPRING CAP $16.75 2 usually ships 1-5 days
33 174-8970 Bushing $5.35 2 usually ships 12-16 days
35 274-1948 SPRING - COMPRESSION, 1.22 OD, $9.91 2 usually ships 1-5 days
36 274-4264 T BAR WELDMENT - STEEL, ZINC PL $67.19 22 usually ships 12-16 days
