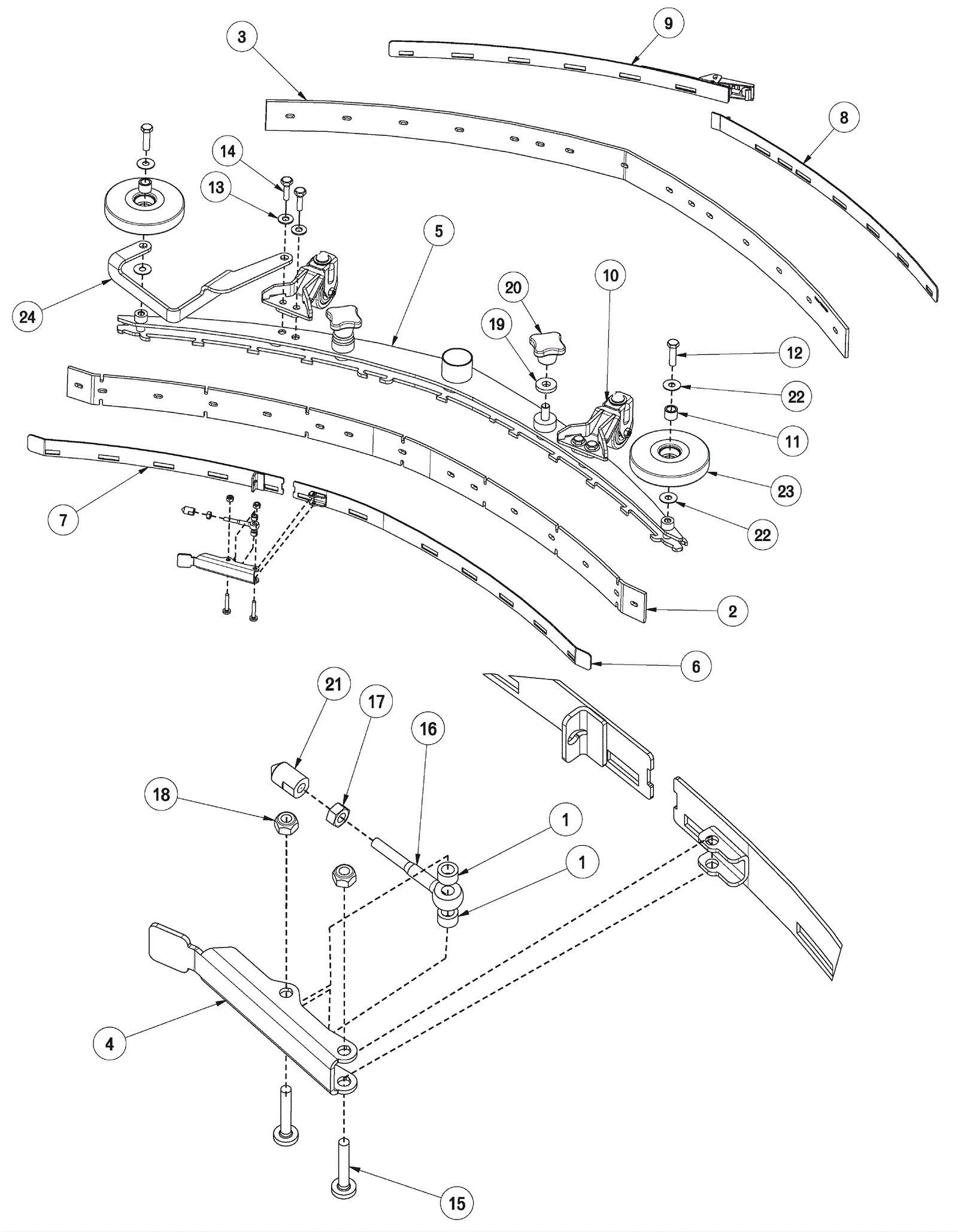

ERIDE 26 Rear Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8277 Spacer $2.37 2 usually ships 12-16 days
2 174-9615 Squeegee blade 34 inch urethane front $55.28 1 usually ships 12-16 days
3 174-9616 Squeegee blade 34 inch urethane rear $57.54 1 usually ships 12-16 days
5 174-8329 34 inch squeegee weldment $329.06 1 usually ships 12-16 days
6 174-8330 Front left strap weldment $44.71 1 usually ships 12-16 days
7 174-8332 Front right strap weldment $27.94 1 usually ships 12-16 days
8 174-8333 Rear left strap weldment $27.32 1 usually ships 12-16 days
9 174-8334 Rear right strap weldment $74.11 1 usually ships 12-16 days
10 174-8933 Fixed caster $12.43 2 ships same day
11 174-8328 Bushing $5.51 2 usually ships 12-16 days
12 374-1264 SCREW, HH CAP M8 X 30mm, SS $0.97 2 usually ships 1-5 days
13 174-8251 Washer flat stainless steel $1.08 4 ships same day
14 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
15 999-1425 Screw M5-.8 x 25mm pan head stainless steel $1.01 2 ships same day
16 174-8338 Bolt M5 x 40mm eye stainless steel $17.42 1 usually ships 12-16 days
17 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
18 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 2 ships same day
20 174-8339 Star knob $2.98 2 ships same day
21 174-8341 Pressure pin $9.48 1 usually ships 12-16 days
22 374-1931 Washer flat 8.3 x 22 x 1.00mm stainless steel $1.54 4 usually ships 12-16 days
23 174-8932 4 inch plastic roller $3.86 2 usually ships 12-16 days
24 274-5542 DEFLECTION ARM-REAR SQ ERIDE / B100R SS $50.38 1 usually ships 1-5 days
