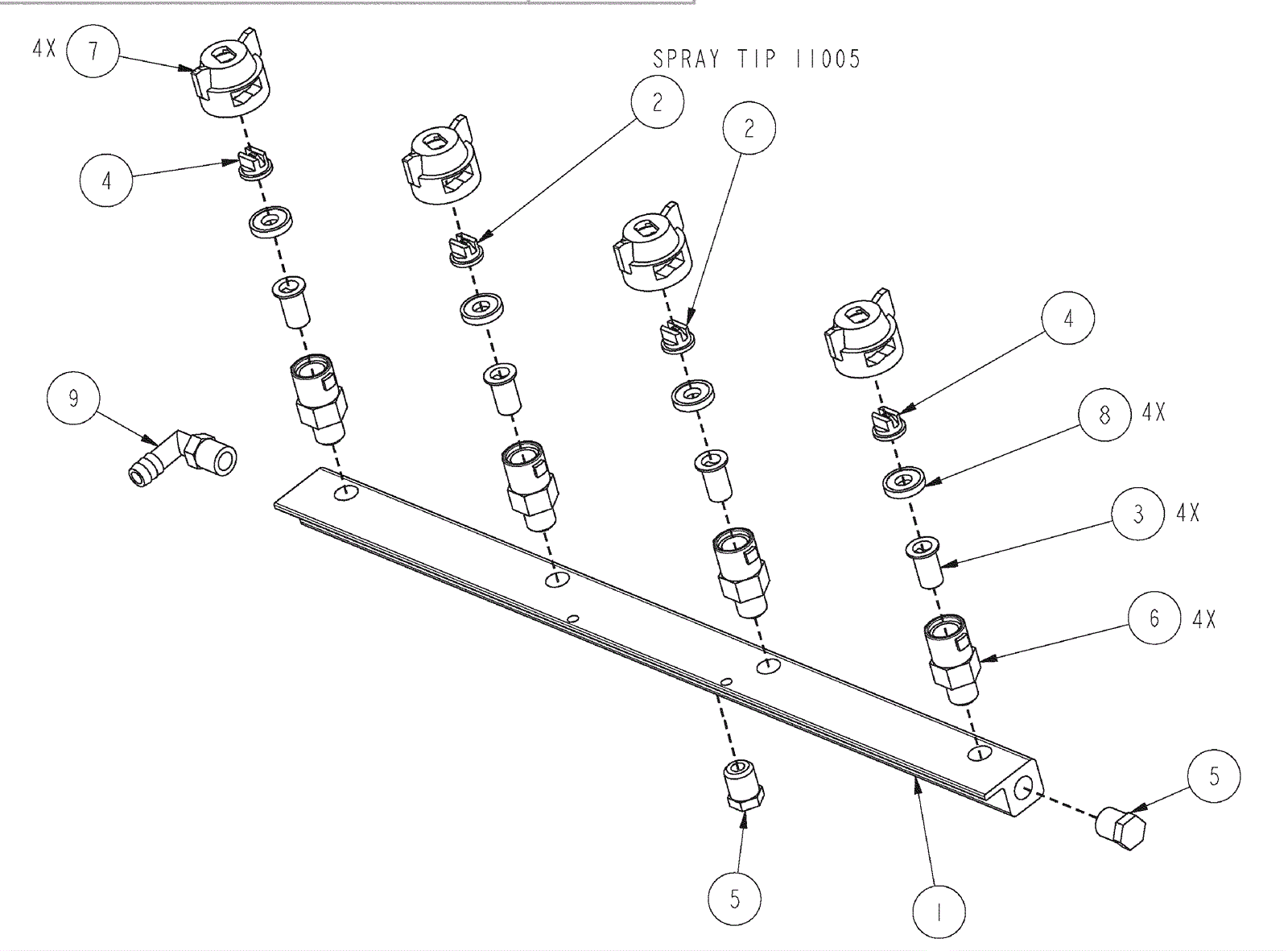

ERIDE 26 Spray Bar Subassembly

#PartDescriptionPriceReqNotesAvailability
1 274-7351 SPRAY BAR, CYL SCRUBDECK, SCV 24/26 $101.25 1 usually ships 1-5 days
2 174-6409 Spray tip $12.63 2 usually ships 12-16 days
3 174-6410 Check valve $17.61 4 usually ships 12-16 days
4 174-6472 Spray tip $27.37 2 usually ships 12-16 days
5 174-3041 Pipe plug $1.55 2 usually ships 12-16 days
6 174-3046 Body inlet connector $8.62 4 usually ships 12-16 days
7 174-3047 Cap $9.31 4 usually ships 12-16 days
8 174-3088 Cap gasket $2.97 4 usually ships 12-16 days
9 164-0187 90 degree elbow barb $6.23 1 ships same day
10 274-4002 SEAL-THREAD HL150 (50ML) $32.90 1 usually ships 1-5 days
