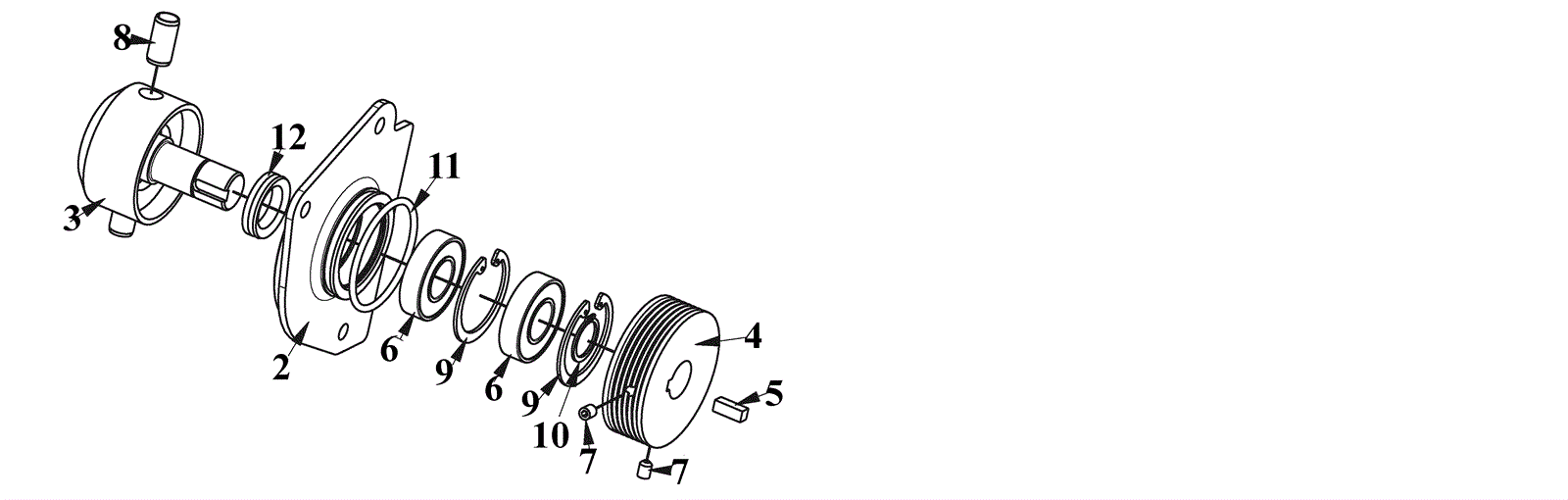

ERIDE 26 Cylidrical Scrubdeck Drive Hub Subassembly

#PartDescriptionPriceReqNotesAvailability
2 174-8828 Bearing housing $15.17 1 usually ships 12-16 days
3 174-8444 Drive hub - cylindrical scrub deck $57.56 1 ships same day
4 174-6407 Driven pulley $35.82 1 usually ships 12-16 days
5 174-6096 3/16 sq x .5 key $2.39 1 usually ships 1-5 days
6 174-8836 Bearing $16.07 2 usually ships 12-16 days
7 174-6426 Screw10-32 x 1/4 set knurled point $1.20 2 usually ships 1-5 days
8 174-6473 Roll pin $1.60 2 usually ships 1-5 days
9 174-6429 Internal retaining ring $1.20 2 usually ships 1-5 days
10 174-6432 External retaining ring 5/8 $0.97 1 usually ships 12-16 days
11 174-8838 O ring $1.33 1 usually ships 1-5 days
12 174-8839 V ring seal $9.93 1 usually ships 12-16 days
