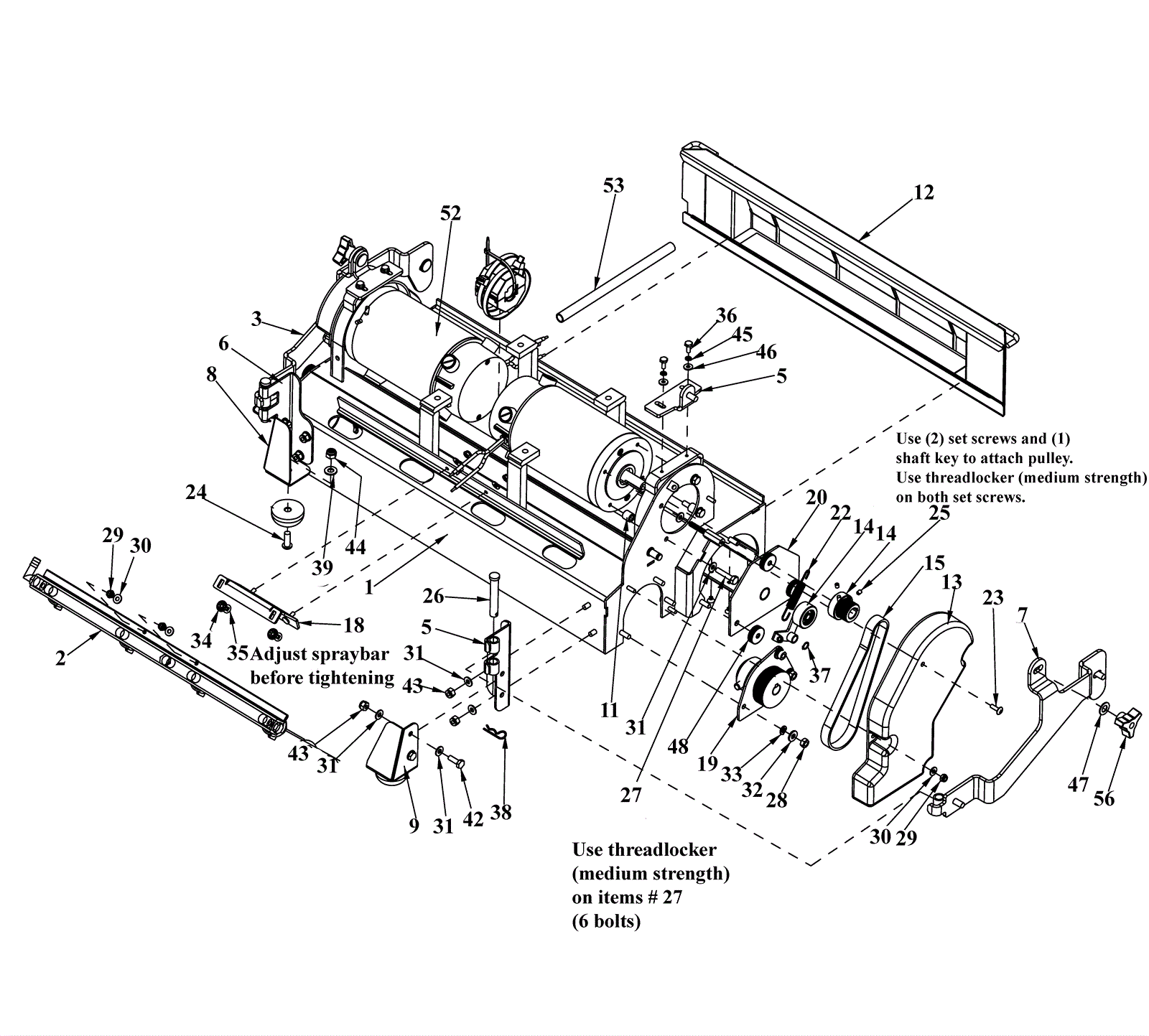

ERIDE 26 26 Inch Cyndrical Deck Without Side Squeegees I

#PartDescriptionPriceReqNotesAvailability
3 274-5571 UPPER SQUEEGEE BRK'T WMT RH, SCV 24/26 $53.33 1 usually ships 1-5 days
5 174-8826 Right hinge $100.68 1 usually ships 1-5 days
6 174-8827 Left hinge $63.28 1 usually ships 1-5 days
7 274-6448 UPPER SQUEEGEE BRK'T WMT LH, SCV 24/26 $118.41 1 usually ships 1-5 days
12 174-9613 Debris box weldment $207.74 1 usually ships 1-5 days
13 174-6404 Cylindrical scrubdeck belt cover assembly $39.65 2 usually ships 12-16 days
14 174-6406 Offset pulley poly v $47.49 2 usually ships 1-5 days
15 174-6411 18 inch j belt $15.09 2 usually ships 12-16 days
19 174-6466 Cylindrical scrubdeck drive hub $234.23 2 usually ships 12-16 days
20 174-6413 Idle shaft weldment $165.05 2 ships same day
22 174-0008 Return spring $2.78 2 usually ships 12-16 days
23 999-1070 Screw 10-32 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
24 999-0844 Screw 5/16-18 x 7/8 button head socket plain finish $0.99 2 ships same day
25 174-6426 Screw10-32 x 1/4 set knurled point $1.20 4 usually ships 1-5 days
27 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 6 ships same day
28 999-0609 Nut 1/4-20 hex stainless steel $0.99 6 ships same day
29 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 10 ships same day
30 999-0006 Washer 3/16 flat zinc plated $0.99 10 ships same day
31 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 20 ships same day
32 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
33 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
45 999-0089 Washer #10 internal star lock zinc plated $0.99 4 ships same day
46 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
47 174-3203 Washer 13/32 x 1/32 flat stainless steel $1.08 2 ships same day
48 374-1316 THUMB NUT - 1/4-20, BLACK PLASTIC $2.08 6 usually ships 1-5 days
52 274-9365 MOTOR-3/4HP 36V 1800RPM 40 inchLEADS $618.42 2 usually ships 1-5 days
