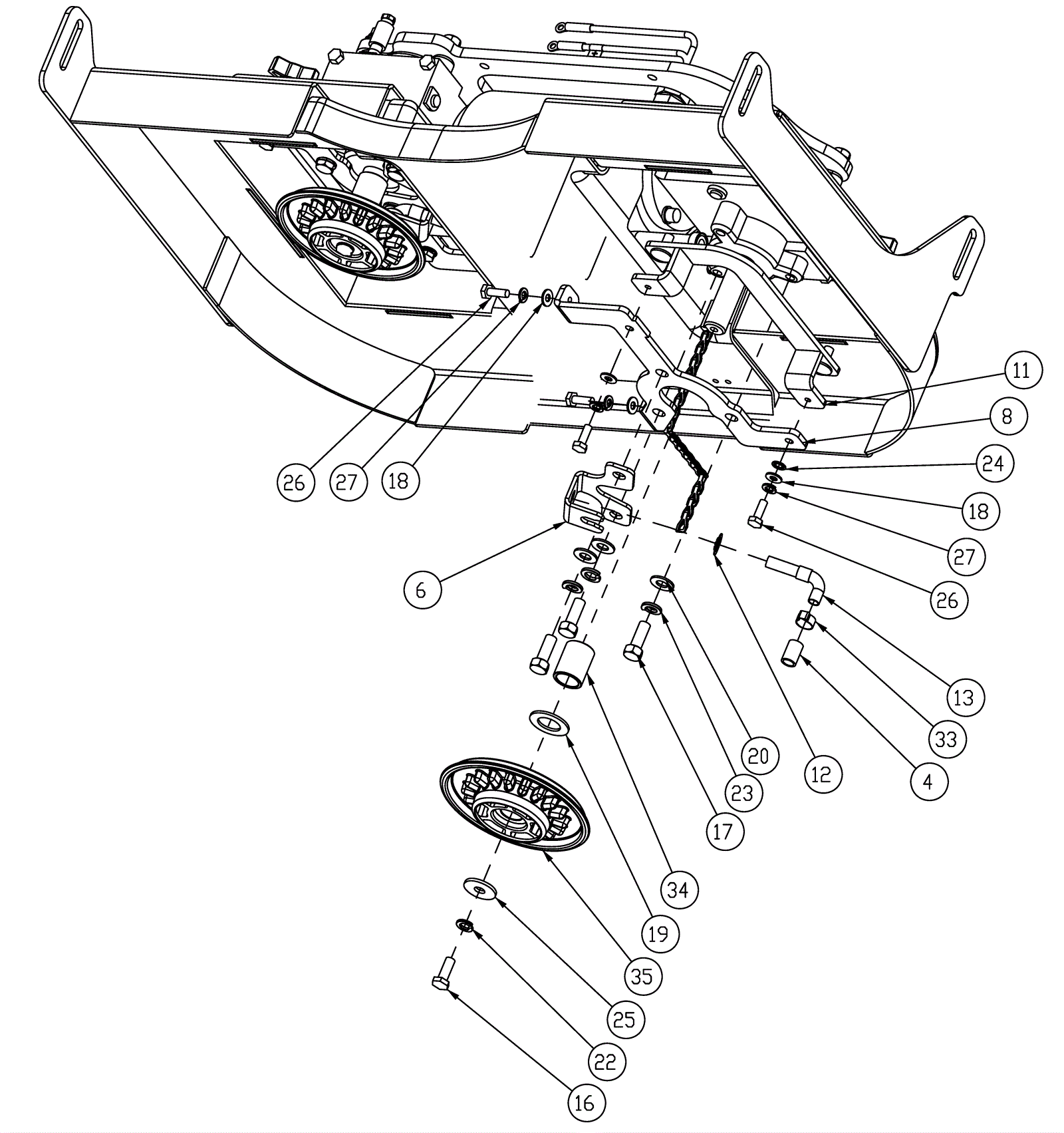

ERIDE 26 Disc Scrubdeck Subassembly I

#PartDescriptionPriceReqNotesAvailability
6 174-8844 Water feed bracket $13.73 2 usually ships 1-5 days
8 274-3643 MOUNTING BRACKET, MOTOR COVER $26.25 2 usually ships 1-5 days
11 174-8845 Cover mount bracket $43.49 2 usually ships 1-5 days
12 174-6360 Speed nut 3/8 $0.97 2 usually ships 1-5 days
13 174-6361 Disk solution feed assembly $24.17 2 usually ships 1-5 days
16 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 2 ships same day
17 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 12 ships same day
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 9 ships same day
19 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
20 999-0120 Washer 3/8 SAE flat $0.99 12 ships same day
22 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
23 999-0034 Washer 3/8 split lock plain finish $1.82 12 ships same day
24 174-5227 Washer 1/4 steel plated $0.97 2 usually ships 12-16 days
25 174-8169 Washer flat .37 x 1.12 x .10 $2.57 2 ships same day
26 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 ships same day
27 999-0632 Washer 1/4 split lock stainless steel $0.99 8 ships same day
33 997-2001 Hose clamp $2.42 2 ships same day
34 274-0618 SPACER, .75 X 1.0 X 1.29 ZINC $9.18 2 usually ships 1-5 days
35 274-4881 DRIVE HUB - SCRUBBER, DISK $53.54 2 usually ships 1-5 days
