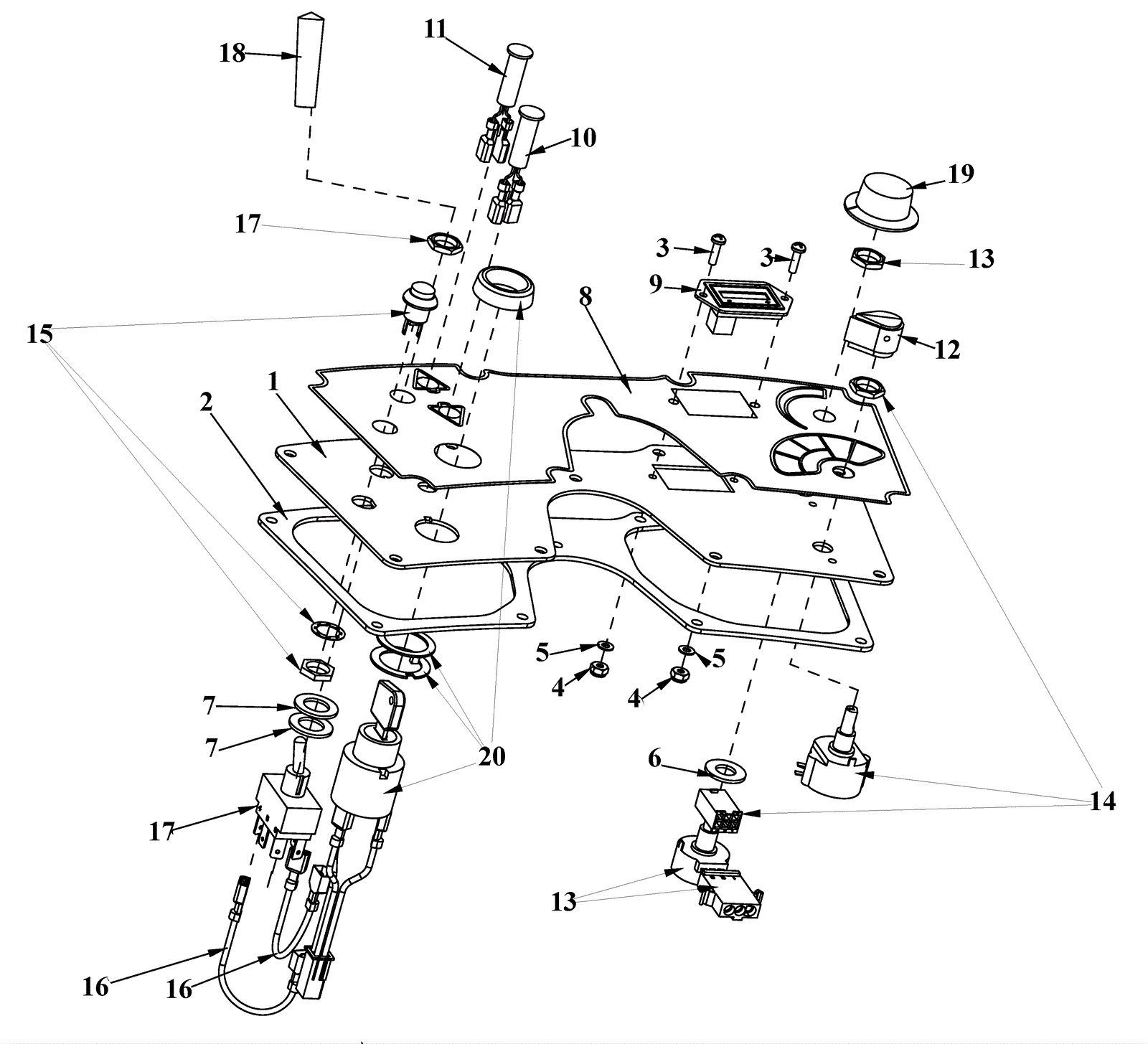

ERIDE 26 Dashboard Assembly

#PartDescriptionPriceReqNotesAvailability
3 999-0382 Screw 6-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
4 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 2 ships same day
5 174-5230 Washer #6 flat $1.20 2 usually ships 12-16 days
6 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
7 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 2 usually ships 12-16 days
9 274-6252 Battery gauge $70.34 1 usually ships 12-16 days
10 174-6300 LED red assembly $14.78 1 usually ships 1-5 days
11 274-2530 LED ASSY, AMBER 36VDC W/FEMALE QC $13.28 1 usually ships 1-5 days
12 174-6333 Knob-mode selector $16.94 1 usually ships 1-5 days
13 174-6334 Water low potentiometer assembly $51.53 1 usually ships 1-5 days
14 174-6336 Mode selector switch assembly $118.45 1 usually ships 12-16 days
15 174-8777 Horn switch $35.26 1 usually ships 1-5 days
16 274-0746 WIRE ASSY, RED/VIOLET 18G $4.03 2 usually ships 1-5 days
17 274-3344 SWITCH, TOGGLE 2POS DPDT ON/ON .687 inchBAT $27.10 1 usually ships 12-16 days
18 374-2112 TOGGLE HANDLE EXTENSION $2.04 1 usually ships 1-5 days
19 174-0259 Knob $7.99 1 usually ships 12-16 days
20 274-7205 Keyswitch assembly w/ harness $43.02 1 ships same day
