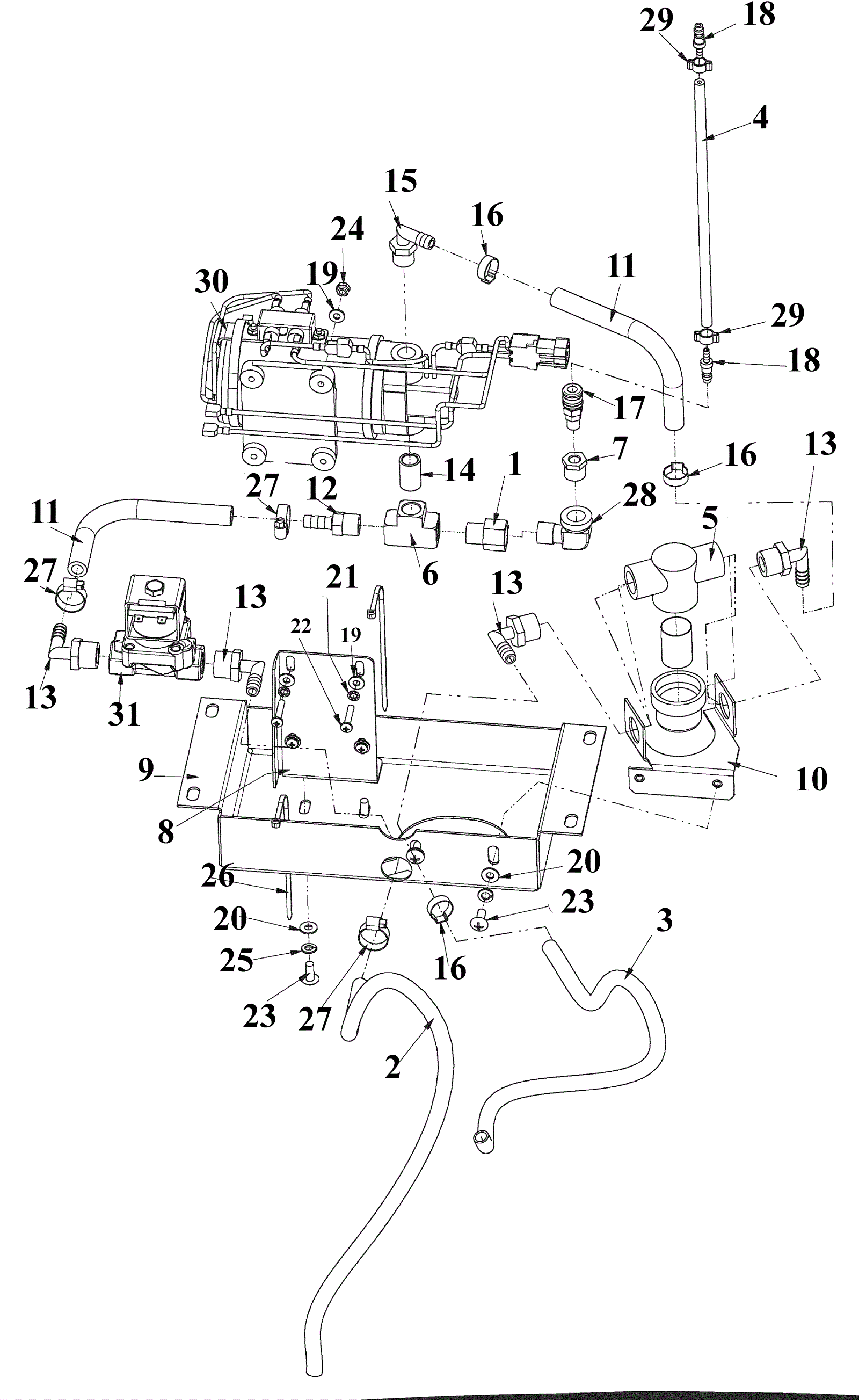

ERIDE 26 Solution Tank Assembly Pump Subassembly

#PartDescriptionPriceReqNotesAvailability
1 174-0072 Brass adapter $6.53 1 usually ships 12-16 days
2 274-3464 HOSE 3/8 X 45 inch WIRE REINFORCED SCV 24/26 $22.86 1 usually ships 1-5 days
3 174-8803 Wire reinforced hose 3/8 x 31 $14.75 1 usually ships 12-16 days
5 174-6311 In-line filter $27.94 1 usually ships 12-16 days
6 174-8161 Brass fitting $15.95 1 usually ships 12-16 days
7 174-8804 3/8 MPT x 1/8 FPT fitting $5.59 1 usually ships 12-16 days
8 174-8805 Pump mount plate $23.88 1 usually ships 1-5 days
9 174-8806 Pump support plate $94.65 1 usually ships 1-5 days
10 174-8807 Pump mounting plate $36.08 1 usually ships 1-5 days
11 174-0229 Hose $8.88 2 usually ships 12-16 days
12 174-0094 Hose barb $3.92 1 usually ships 12-16 days
13 174-6316 Elbow barb 1/2 x 3/8 $2.95 4 usually ships 12-16 days
14 174-5916 Closed nipple 3/8 $3.70 1 usually ships 12-16 days
15 174-0083 90 degree elbow barb $3.93 1 usually ships 12-16 days
16 997-2001 Hose clamp $2.42 3 ships same day
17 174-3205 Quick connect 2202 coupler Female $24.65 1 ships same day
18 274-4056 FITTING-NIPPLE QUICK CONNECT 1/8 BARB $27.42 2 usually ships 1-5 days
19 999-0006 Washer 3/16 flat zinc plated $0.99 8 ships same day
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
21 999-0089 Washer #10 internal star lock zinc plated $0.99 4 ships same day
22 174-8871 Screw 10-24 x 1 flat head stainless steel $1.08 4 usually ships 1-5 days
23 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 4 ships same day
24 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
25 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
26 997-2102 Cable tie $1.38 2 ships same day
27 174-6011 Hose clamp $4.31 3 usually ships 12-16 days
28 174-0075 90 Degree elbow barb $10.64 1 usually ships 12-16 days
29 174-3231 Hose clamp 3/8 $1.82 2 usually ships 12-16 days
30a 174-8809 Pump assembly $405.85 1 usually ships 12-16 days
31 174-7102 36V solenoid valve $158.39 1 usually ships 12-16 days
