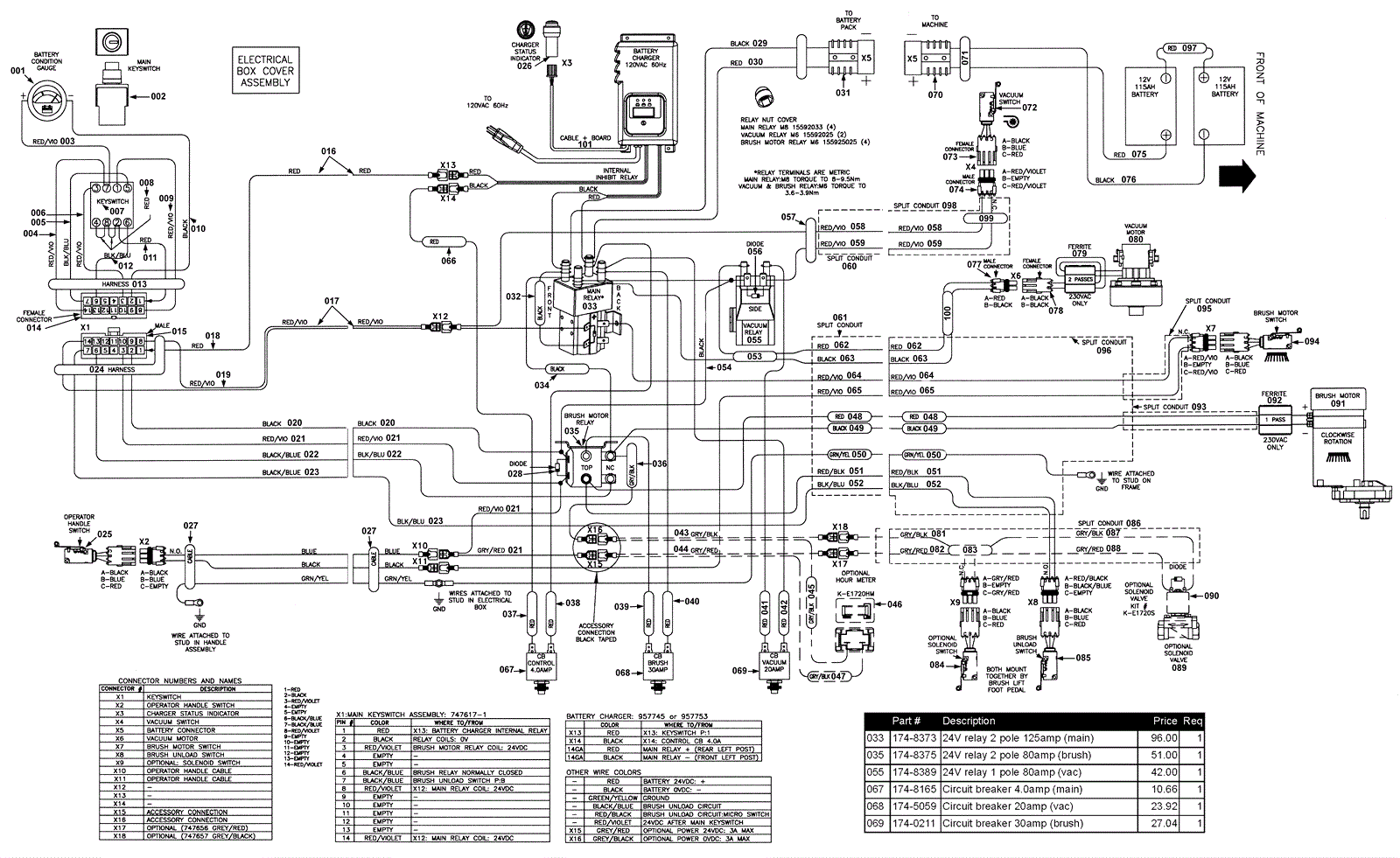

| # | Part | Description |
Req | Notes | Availability |
|---|
M1 |
274-7416
|
24v pump |
1 |
(optional) |
|
M2 |
174-8313
|
24v brush motor |
1 |
|
|
M3b |
174-3719
|
24V vacuum motor assembly |
1 |
(model specific) (H20 only) |
|
K1 |
174-8373
|
24V main relay 2 pole 125 amp |
1 |
|
|
K2 |
174-8375
|
24V brush motor relay 2 pole 80 amp |
1 |
|
|
K3 |
174-8389
|
24V vacuum motor relay 1 pole 80 amp |
1 |
|
|
CB1 |
174-8165
|
Circuit breaker 4.0 amp (push button) |
1 |
|
|
CB2 |
274-1163
|
30amp circuit breaker |
1 |
|
|
CB3 |
174-5059
|
Circuit breaker 20 amp (push button) |
1 |
|
|
S1 |
274-7156
|
KEYSWITCH, START-OFF-ON (E1720) |
1 |
|
|
S2A |
174-8264
|
Switch assembly (with pack conduit) |
1 |
(at motor) |
|
S2B |
174-7198
|
Switch |
1 |
(handle) |
|
S3 |
174-7199
|
Switch |
1 |
|
|
S6 |
174-7199
|
Switch |
1 |
|
|
S7 |
174-8264
|
Switch assembly (with pack conduit) |
1 |
(optional) |
|
S8 |
174-7192
|
Toggle on/off switch assembly |
1 |
(optional) |
|
CSI |
174-8299
|
Charge status indicator |
1 |
|
|
HM |
174-8383
|
Hour meter 24-277VDC/AC snap in |
1 |
(optional) |
|
BCa |
274-9905
|
Charger, 27D wet 105AH signet HBF30 |
1 |
(model specific) (battery type specific) |
|
BCb |
274-9886
|
Charger gel set 100ah signet HBF300-24 nem |
1 |
(model specific) (battery type specific) |
|
BCd |
174-3896
|
230V 105Ah wet/gel charger |
1 |
(model specific) (battery type specific) |
|
G1a |
162-0011
|
12V 105Ah wet battery (SNSR) |
2 |
|
|
N1 |
174-3720
|
Brush motor ferrite |
1 |
|
|
N2 |
174-8400
|
Snap it ferrite bead |
1 |
|
|
D2 |
174-0230
|
Diode assembly |
1 |
|
|
D3 |
174-0230
|
Diode assembly |
1 |
|
|
D4 |
174-0230
|
Diode assembly |
1 |
(optional) |
|
X1a |
174-8361
|
Female pin connector |
1 |
(female) |
|
X2b |
174-8407
|
Male connector 3 pin |
1 |
(male) |
|
X5b |
174-8398
|
Male pin connector |
1 |
(male) |
|
X6 |
162-5032
|
175amp charger plug only (red) SB175 |
1 |
|
|
X8b |
174-8407
|
Male connector 3 pin |
1 |
(male) |
|
X9a |
174-8406
|
Female connector 3 pin |
1 |
(female) |
|
X10a |
374-1712
|
QC- FEMALE 10-12 .250 FULL INSULATED |
1 |
(female) |
|
X10b |
374-2443
|
QC-MALE 18-22G .250 FULL INS (STRIP) |
1 |
(male) |
|
X12b |
374-1714
|
QC-MALE 10-12G .250 FULL INSULATED |
1 |
(male) |
|
X13a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(female) |
|
X13b |
374-2443
|
QC-MALE 18-22G .250 FULL INS (STRIP) |
1 |
(male) |
|
X14a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(female) |
|
X15a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(female) |
|
X15b |
374-1714
|
QC-MALE 10-12G .250 FULL INSULATED |
1 |
(male) |
|
X16a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(female) |
|
X17a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(female) |
|
X17b |
374-1714
|
QC-MALE 10-12G .250 FULL INSULATED |
1 |
(male) |
|
X18a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
1 |
(female) |
|
X18b |
374-1714
|
QC-MALE 10-12G .250 FULL INSULATED |
1 |
(male) |
|
X28a |
174-8406
|
Female connector 3 pin |
1 |
(optional) (female) |
|
X28b |
174-8407
|
Male connector 3 pin |
1 |
(optional) (male) |
|
X29a |
174-8399
|
Female pin connector |
1 |
(optional) (female) |
|
