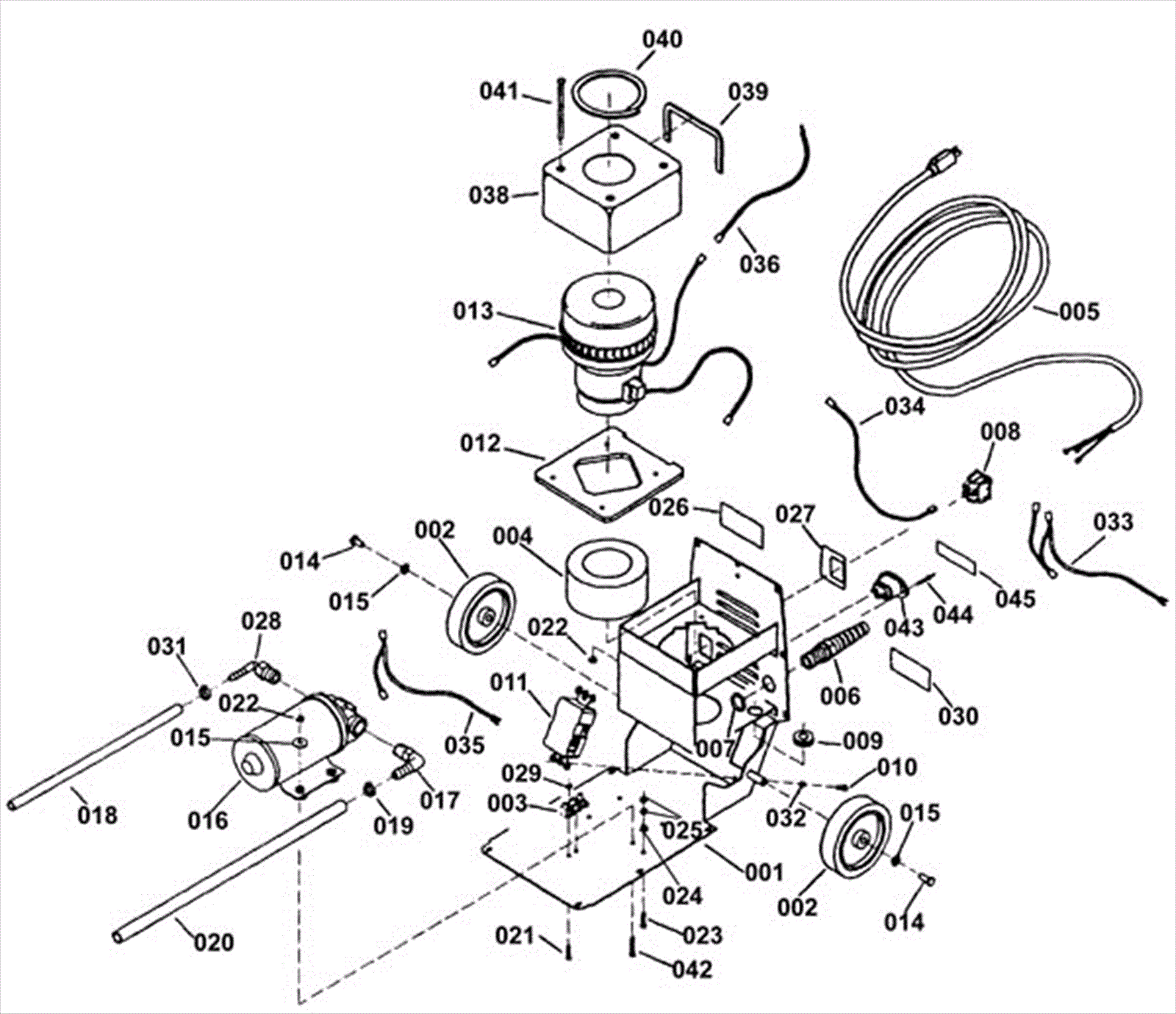

GOTCHA C46200-01 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-1940 Frame weldment 120 volt $163.70 1 usually ships 1-5 days
002 174-3155 Wheel 4 inch $6.48 2 usually ships 1-5 days
003a 174-2043 Terminal screw tab $4.93 1 usually ships 1-5 days
003b 174-3156 Terminal block 4-position $4.60 1 usually ships 1-5 days
004 174-0171 Foam ring $2.57 1 usually ships 4-14 days
005a 174-3157 Cord set 16-3 25ft $50.11 1 usually ships 4-14 days
005b 174-3158 Cord set 1 mm 25ft $68.27 1 usually ships 1-5 days
006 174-3053 Strain relief $9.31 1 usually ships 4-14 days
007 174-3091 Nut 1/2 pipe lock $0.97 1 usually ships 4-14 days
008 174-0705 Vacuum switch $9.11 1 usually ships 4-14 days
009 174-3038 Grommet $1.30 2 usually ships 1-5 days
011 174-3160 Ground fault interruptor 115V $73.04 1 usually ships 1-5 days
012 174-3161 Bottom gasket $7.37 1 usually ships 1-5 days
013 174-3162 Vacuum motor assembly 115V $129.89 1 usually ships 1-5 days
014 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 2 ships same day
015 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
016 174-3042 50 PSI pump $331.42 1 usually ships 4-14 days
017 164-0187 90 degree elbow barb $6.23 1 ships same day
018 174-3167 Hose output 1/4 ID x 15 $2.88 1 usually ships 1-5 days
019 997-2001 Hose clamp $2.42 1 ships same day
020 174-3168 Hose input 3/8 ID x 12 $7.71 1 usually ships 1-5 days
021 174-3169 Screw 6-32 x 5/8 zinc sems thread $0.95 1 usually ships 1-5 days
022 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 8 ships same day
024 174-3171 Nut 10-24 flange wizz $1.20 1 usually ships 4-14 days
025 217-0111 Nut 10-24 hex (OBSOLETE) $1.85 2 usually ships 1-5 days
026 174-5775 Serial nameplate decal $1.24 1 usually ships 1-5 days
027 174-3174 Spotter decal-switch $6.37 1 usually ships 1-5 days
028 174-3175 1/4 90 degree barb x 3/8 MPT $1.70 1 usually ships 1-5 days
029 999-0195 Nut 6-32 hex plain $0.99 1 ships same day
030 174-3177 Warning decal $1.24 1 usually ships 1-5 days
031 997-2001 Hose clamp $2.42 1 ships same day
032 999-0089 Washer #10 internal star lock zinc plated $0.99 2 ships same day
033 174-3176 Wire assembly violet 16 120V $6.62 1 usually ships 1-5 days
034 174-3179 Wire assembly black 16 $1.78 1 usually ships 1-5 days
035 174-3180 Wire assembly white 16 120V $3.31 1 usually ships 1-5 days
036 174-3181 Wire assembly white 16 $1.23 1 usually ships 1-5 days
037 174-3182 Wire tie small $1.20 2 usually ships 1-5 days
038 174-3183 Vac motor shroud $29.12 1 usually ships 1-5 days
039 174-3184 Front gasket $2.70 1 usually ships 1-5 days
040 174-3185 Top gasket $3.00 1 usually ships 4-14 days
041 999-0255 Screw 10-24 x 3 1/2 flat head slotted zinc plated $0.99 4 ships same day
042 174-3187 Screw 10-24 x 1 stainless steel $0.97 4 ships same day
043 174-3086 Receptacle $5.68 1 usually ships 1-5 days
044 174-2051 Pop rivet $0.97 2 usually ships 4-14 days
045 174-0502 120V receptacle decal $2.67 1 usually ships 1-5 days
