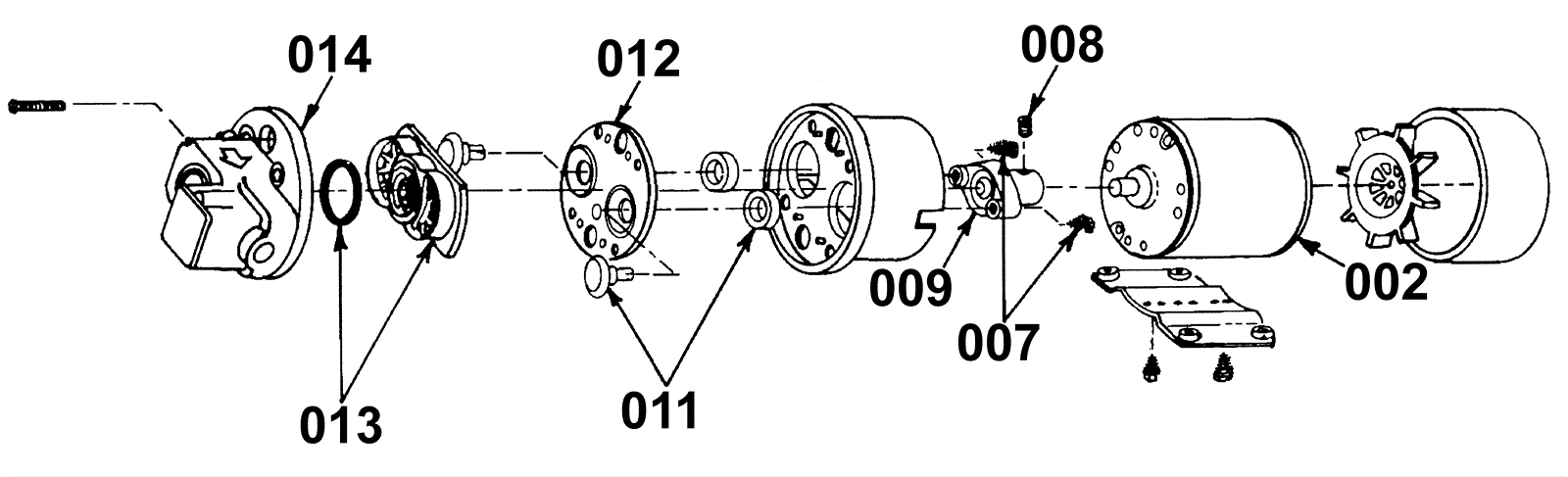

RUGMASTER MC828333 Pump Assembly

#PartDescriptionPriceReqNotesAvailability
000 174-5637 Pump service kit $161.17 1 Kit includes 7, 8, 9, 11, 12, 13 usually ships 1-5 days
002 174-5629 Brush endbell and rectifier assembly Call for price 1 usually ships 1-5 days
007 174-5630 Cam and bearing screws $1.00 2 Available in Pump service kit usually ships 1-5 days
008 174-5631 Cam and bearing set screw Call for price 1 Available in Pump service kit usually ships 1-5 days
009 174-5632 Cam and bearing kit $45.53 1 Available in Pump service kit usually ships 1-5 days
011 174-5633 Pistons Call for price 2 Available in Pump service kit usually ships 1-5 days
012 174-5634 Diaphragm kit (OBSOLETE) $44.67 1 Available in Pump service kit usually ships 12-16 days
013 174-5635 Check vavle $14.56 1 Available in Pump service kit usually ships 1-5 days
014 174-5636 Upper housing and switch assembly $82.53 1 usually ships 1-5 days
