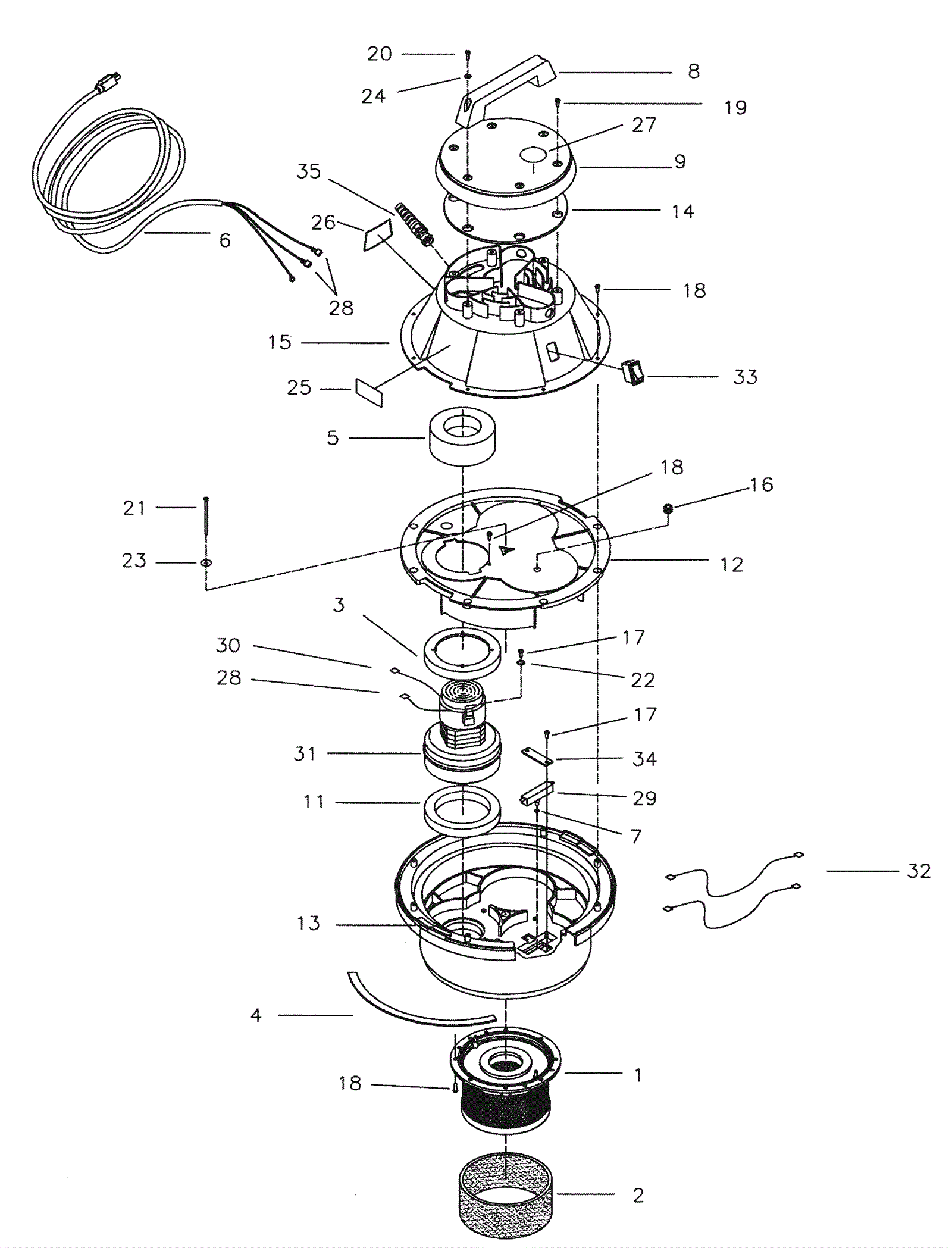

X-829 Lid Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-1756 Plactic coplom filter $247.07 1 ships same day
2 174-7101 Prefilter sleeve (pkg of 6) $37.67 1 usually ships 12-16 days
3a 164-0881 Vacuum motor gasket $13.42 1 ships same day
3b 991-3029 Vacuum motor gasket $2.80 1 (NON-OEM) ships same day
3c 174-5104 Gasket $4.23 1 ships same day
4 174-2281 Gasket lid (15G) $28.19 1 usually ships 12-16 days
5 174-0171 Foam ring $2.85 1 usually ships 12-16 days
6a 174-3003 16/3 power cord 50 foot $75.64 1 usually ships 12-16 days
6b 174-5125 Powercord $95.31 1 usually ships 12-16 days
6c 991-5006 16/3 replacement power cord 50 foot (yellow) $49.95 1 ships same day
6d 991-5002 16/3 extension cord 50 foot (yellow) $48.73 1 (NON-OEM) usually ships 11-15 days
7 174-3212 Valve seat O-ring $1.38 1 usually ships 12-16 days
8 174-2278 Handle $10.34 1 usually ships 12-16 days
9 174-2279 Cover lid $17.72 1 usually ships 1-5 days
10 274-5970 VACUUM HOUSING 460 BLACK $68.22 1 usually ships 12-16 days
11 174-2282 Gasket $8.88 1 usually ships 12-16 days
12 274-4822 MOTOR HOLDOWN SINGLE HEPA $41.38 1 usually ships 1-5 days
13 274-6073 VAC MTR ADAPTER W/HEPA $85.89 1 usually ships 1-5 days
14 174-2287 Dome seal gasket $11.98 1 usually ships 1-5 days
15 174-2283 Single motor cover $50.23 1 usually ships 12-16 days
16 174-3031 Grommet $1.38 1 usually ships 1-5 days
18 174-5991 Screw #10 x 5/8 plated hi/low $1.10 21 usually ships 12-16 days
19 174-2289 Screw 10 x 5/8 hi/lo $2.11 4 usually ships 12-16 days
20 174-5134 Screw 10 x 1 1/4 $1.08 2 usually ships 12-16 days
21 174-2290 Screw 10 A point x 3 1/2 $1.08 1 usually ships 12-16 days
22 999-0089 Washer #10 internal star lock zinc plated $0.99 1 ships same day
23 174-2291 Washer finish $1.33 1 usually ships 12-16 days
24 174-0532 Washer 7/32 x 3/64 nylon $1.08 2 usually ships 12-16 days
25 274-0686 DECAL-CAUTION UL HAZARDO $5.68 1 usually ships 1-5 days
26 174-1431 Decal warning dry $11.36 1 usually ships 1-5 days
28 174-5673 Female terminal $1.38 3 usually ships 1-5 days
29 174-4024 Switch $27.25 1 usually ships 12-16 days
30 174-5676 Male terminal 1/4 $1.38 1 usually ships 1-5 days
31a 174-2949 120V vacuum motor $264.57 1 usually ships 12-16 days
31b 174-2277 Vacuum motor 240V $237.12 1 usually ships 1-5 days
32 174-3122 14G black 13 B=2 $2.06 2 usually ships 1-5 days
33 174-0181 Rocker switch $18.63 1 ships same day
34 274-0721 MTG BKT 829 SWITCH $5.85 1 usually ships 1-5 days
35 174-2293 Strain relief with nut $11.80 1 usually ships 12-16 days
