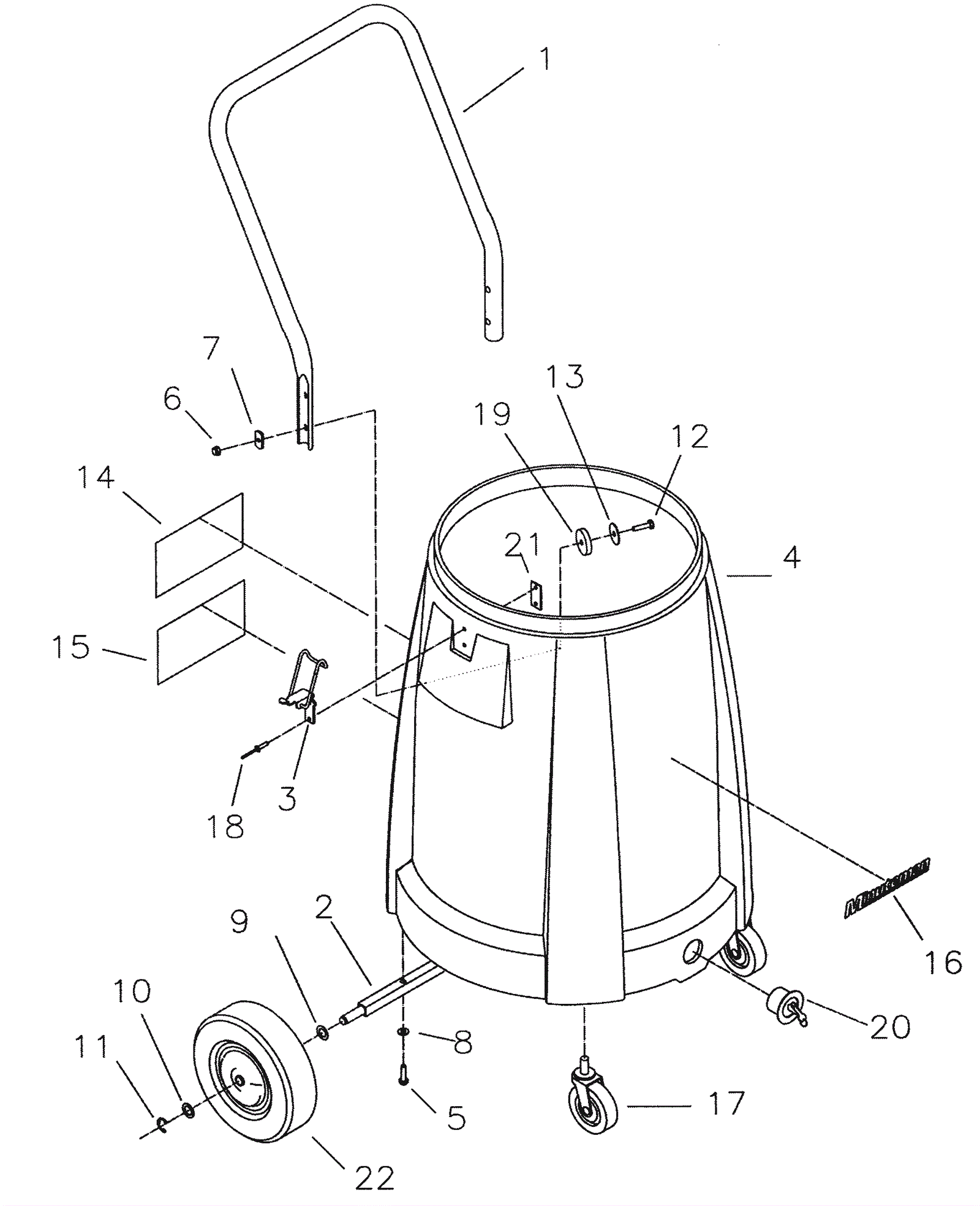

X-829 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-2251 Handle $42.56 1 usually ships 1-5 days
2 174-2252 Plated axle $68.33 1 usually ships 1-5 days
3 174-2267 Latch $14.21 2 usually ships 4-14 days
4a 274-8484 TK 15GRC NO HOLES $260.20 1 usually ships 1-5 days
4b N/A Not available Call for price 1 (20 gallon tank) usually ships 3-26 days
5a 999-6667 Bolt 1/4-20 x 1 hex zinc $0.99 2 ships same day
6 999-0429 Nut 1/4-20 acorn nickel plated $0.99 4 ships same day
7 174-8549 Weldnut 1/4-20 plated $1.20 4 usually ships 1-5 days
8 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
9 174-5159 Washer 33/64 x 1/64 wave $0.99 2 usually ships 4-14 days
10 999-0855 Washer 9/16 SAE flat $0.99 2 ships same day
11 174-0178 1/2 inch external retaining ring $0.99 2 usually ships 4-14 days
12 999-1382 Screw 1/4-20 x 1 truss head phillips $1.16 4 ships same day
13 174-1167 Washer 9/32 x 19/32 flat stainless steel $0.70 4 ships same day
14 274-0688 DECAL-DANGER 3.25 X 7 $5.11 1 usually ships 1-5 days
15 374-2308 DECAL-INSTRUCTIONS 3.25 X 7 $3.47 1 usually ships 1-5 days
16 374-2315 DECAL-MMAN 1 X 6.88 LT GRY $2.57 1 usually ships 1-5 days
17 174-2259 3 inch caster wheel (gray) $18.23 2 usually ships 4-14 days
18 174-1356 Pop rivet $0.97 4 usually ships 1-5 days
19 174-2269 Gasket $1.74 4 usually ships 1-5 days
20 174-2264 Drain plug $34.36 1 usually ships 4-14 days
21 174-2261 Back clamp plate $3.78 2 usually ships 1-5 days
22 174-8510 8 inch wheel $29.89 2 ships same day
