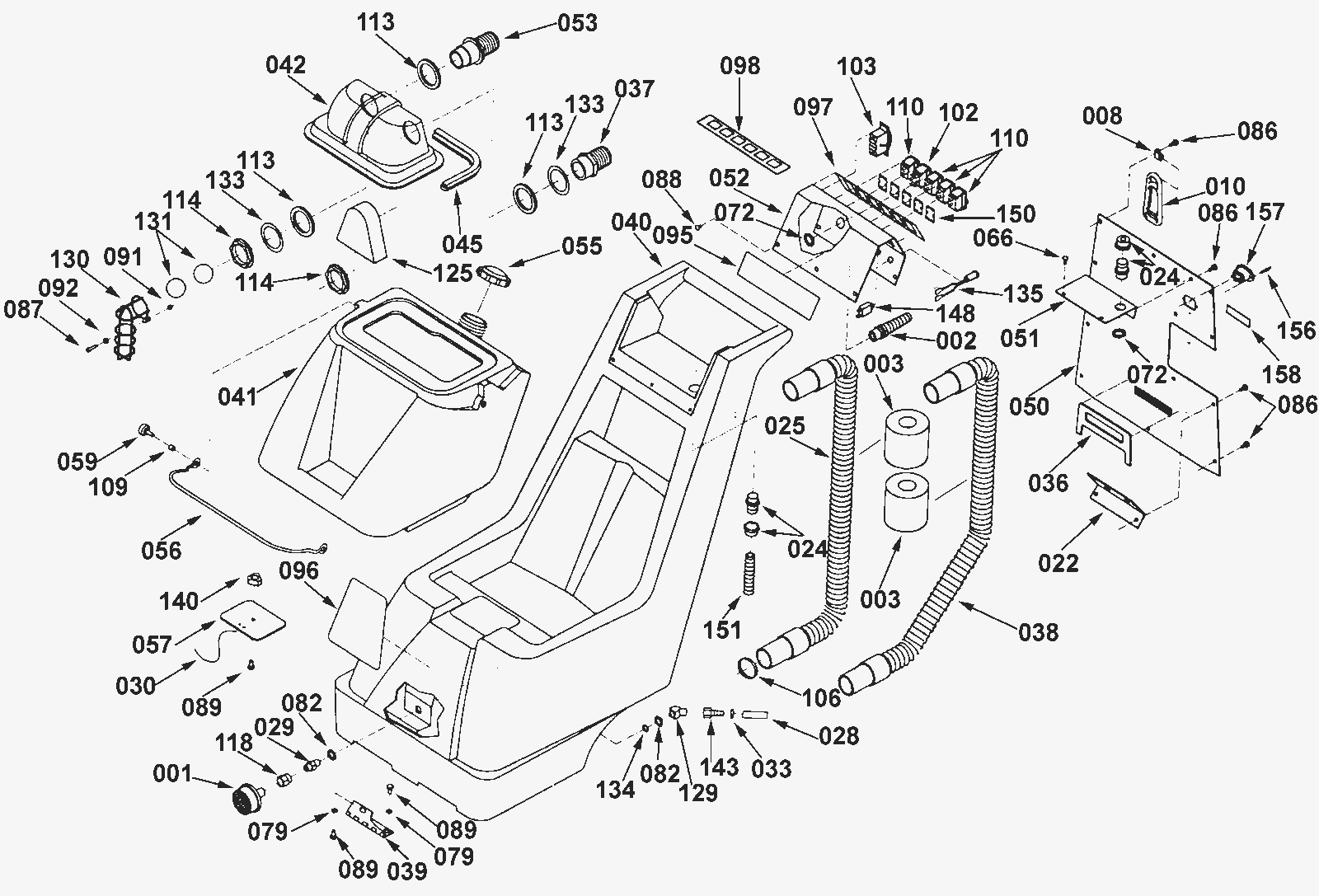

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
174-0071
|
Solution strainer |
1 |
|
|
002 |
174-3053
|
Strain relief |
1 |
|
|
003 |
174-3054
|
Filter |
2 |
|
|
008 |
174-3055
|
3/8 inch plastic clamp |
1 |
|
|
010 |
174-3056
|
Cord strain relief |
1 |
|
|
022 |
174-3015
|
Quick disconnect bracket |
1 |
|
|
024 |
174-3057
|
Heyco bushing |
2 |
|
|
025 |
174-3058
|
Vacuum hose assembly |
1 |
|
|
028 |
991-1401
|
Clear vinyl tubing (sold by the inch) |
17 in |
|
|
029 |
174-3059
|
Brass bulkhead fitting |
1 |
|
|
030 |
174-3060
|
Nylon cord |
1 |
|
|
033 |
997-2001
|
Hose clamp |
2 |
|
|
036 |
174-0493
|
Diecut air seal gasket |
1 |
|
|
037 |
174-3061
|
Adapter |
1 |
|
|
038 |
174-3062
|
Recovery hose (clear) |
1 |
(auxilary tool hook up) |
|
039 |
174-3063
|
Hinge |
2 |
|
|
040 |
274-9106
|
TNK SOL AMB BURGUNDY |
1 |
|
|
041 |
174-3065
|
Recovery tank |
1 |
|
|
042 |
174-3066
|
Clear plastic dome |
1 |
|
|
045 |
174-3067
|
Dome gasket |
1 |
|
|
050 |
174-0494
|
Rear panel weldment |
1 |
|
|
051 |
174-0495
|
Cover |
1 |
|
|
052 |
174-0496
|
Dashboard |
1 |
|
|
053 |
174-3068
|
Adapter |
1 |
|
|
055 |
174-3069
|
Cap |
1 |
|
|
056 |
174-3070
|
Handle bail |
1 |
|
|
057 |
174-3071
|
Solution tank cover |
1 |
|
|
059 |
174-0497
|
Locking screw |
2 |
|
|
066 |
999-0569
|
Screw 10 x 1/2 pan head phillips sheet metal |
4 |
|
|
072 |
174-3091
|
Nut 1/2 pipe lock |
3 |
|
|
079 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
16 |
|
|
082 |
999-0855
|
Washer 9/16 SAE flat |
5 |
|
|
086 |
999-0276
|
Screw 10-24 x 1/2 hex washer head slotted zinc |
19 |
|
|
087 |
999-0570
|
Screw 10-24 x 1 1/4 pan head phillips stainless steel |
1 |
|
|
088 |
999-0571
|
Screw 10-24 x 3/8 pan head phillips stainless steel |
6 |
|
|
089 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
9 |
|
|
091 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
1 |
|
|
092 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
095 |
N/A
|
Not available |
1 |
(Ambassador decal) |
|
096 |
174-3072
|
Minuteman decal |
1 |
|
|
097 |
174-0498
|
Dashboard decal |
1 |
|
|
098 |
174-0499
|
Ambassador dashboard system decal |
1 |
|
|
102 |
174-3073
|
15amp momentary switch |
1 |
|
|
103 |
174-3074
|
Pressure gauge |
1 |
|
|
106 |
997-2000
|
Hose clamp |
1 |
|
|
109 |
174-3076
|
Bushing |
2 |
|
|
110 |
174-0181
|
Rocker switch |
4 |
(power, vacuum and brush) |
|
113 |
174-0048
|
Washer 1 13/16 x 1/8 neoprene |
3 |
|
|
114 |
174-0049
|
Nut 1 1/2 pipe thread |
2 |
|
|
118 |
174-3077
|
Adapter 3/8 x 1/4 |
1 |
|
|
125 |
174-3078
|
Deflector |
1 |
|
|
129 |
174-3079
|
1/4 inch brass elbow |
1 |
|
|
131 |
174-3081
|
Ball |
2 |
|
|
133 |
174-3097
|
Washer 2.12 x .03 stainless steel |
2 |
|
|
134 |
174-3082
|
O-ring |
1 |
|
|
135 |
174-3083
|
Indicator light assembly |
1 |
|
|
140 |
174-3084
|
Knob 1/4-20 |
1 |
|
|
143 |
174-0222
|
Hose barb |
1 |
|
|
148 |
174-3085
|
6amp circuit breaker |
1 |
(power) |
|
150 |
174-0500
|
Switch insulator |
5 |
|
|
151 |
174-0501
|
Plastic conduit |
1 |
|
|
156 |
174-2051
|
Pop rivet |
4 |
|
|
157 |
174-3086
|
Receptacle |
1 |
|
|
158 |
174-0502
|
120V receptacle decal |
1 |
|
|
N/S |
174-5698
|
Complete upholstery tool |
1 |
(optional) |
|
N/S |
174-3140
|
Regular wand assembly |
1 |
(optional) |
|
N/S |
174-3131
|
Wand tube |
1 |
|
|
