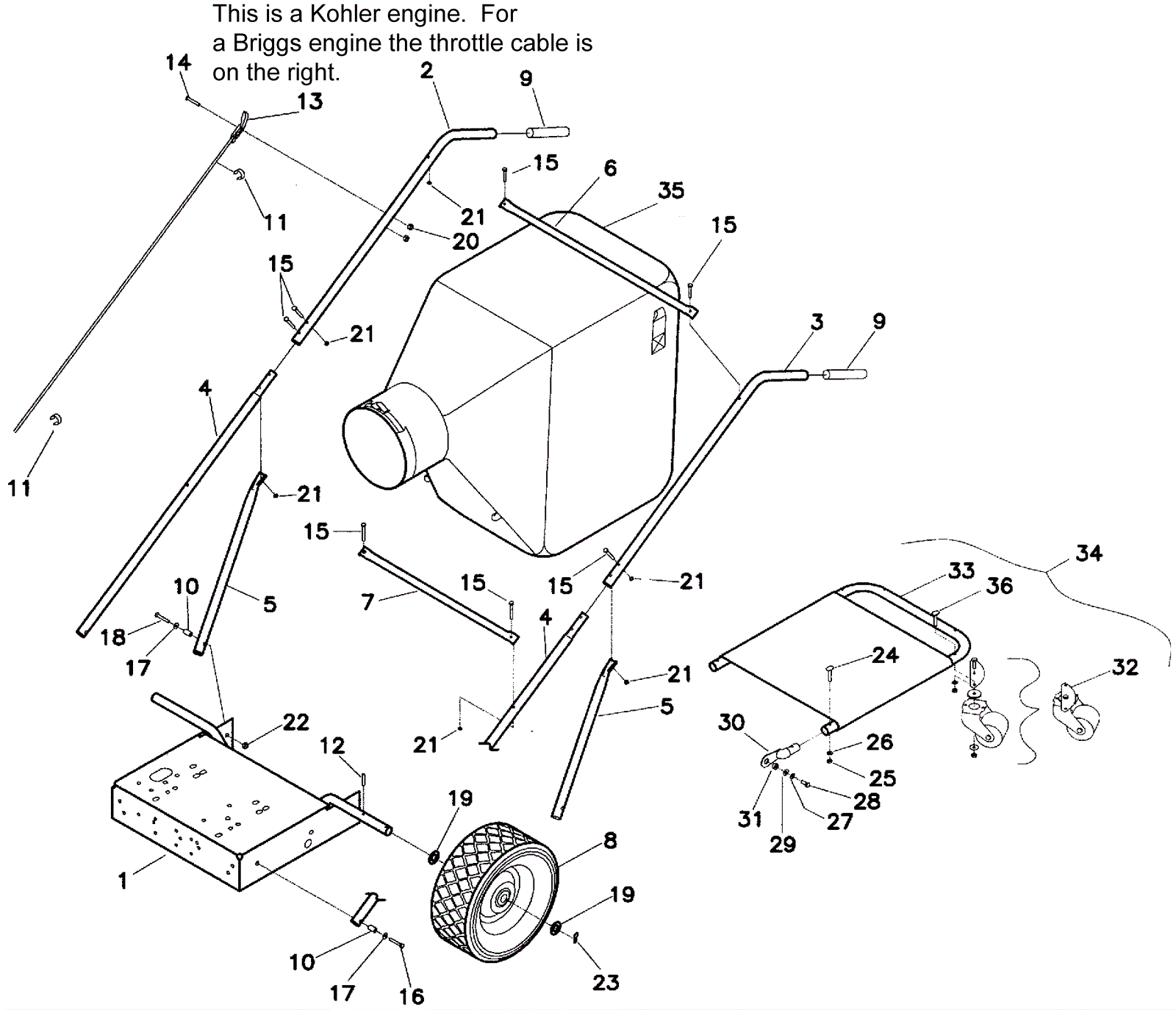

PRKRVAC-35 PV0285KF Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-1053 Chassis weldment Call for price 1 usually ships 1-5 days
2 174-1054 Right upper handle Call for price 1 usually ships 1-5 days
3 174-1055 Left upper handle Call for price 1 usually ships 1-5 days
4 174-1056 Lower handle Call for price 2 usually ships 1-5 days
5 174-1057 Handle back brace Call for price 2 usually ships 1-5 days
6 174-1058 Upper cross brace Call for price 1 usually ships 1-5 days
7 174-1059 Lower cross brace Call for price 1 usually ships 1-5 days
8 174-1060 Wheel assembly $228.68 2 usually ships 1-5 days
9 174-0864 Black handle grip Call for price 2 usually ships 1-5 days
11 174-1062 Snap-on clamp $1.32 4 usually ships 1-5 days
12 174-0971 Roll pin 3/16 x 1 1/2 $0.95 2 usually ships 1-5 days
13b 174-1063 Throttle control assembly Call for price 1 (Honda) usually ships 1-5 days
14 999-1027 Screw 10-24 x 1 1/4 round head phillips stainless steel $0.99 2 usually ships 1-5 days
15 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 8 ships same day
16 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
17 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
18 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated $0.54 2 ships same day
19 999-0630 Washer 3/4 SAE flat $0.99 4 ships same day
20 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
21 999-0190 Nut 1/4-20 hex plain finish $0.99 8 ships same day
22 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
23 174-1066 Cotter pin Call for price 2 usually ships 1-5 days
24 174-2414 Bolt 1/4-20 x 1 1/2 contour head $0.86 2 usually ships 1-5 days
25 999-0190 Nut 1/4-20 hex plain finish $0.99 6 ships same day
26 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
27 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
28 174-2408 Bolt 5/16-18 x 1 #5 hex head $0.95 2 usually ships 1-5 days
29 174-1067 Special washer Call for price 2 usually ships 1-5 days
30 174-1777 Tubing end cap $12.24 2 usually ships 12-16 days
31 174-1069 Spacer Call for price 2 usually ships 1-5 days
32 N/A Not available Call for price 1 (Caster and plate assembly) usually ships 3-26 days
33 174-1071 Frame and bag platform Call for price 1 usually ships 1-5 days
34 N/A Not available Call for price 1 (Bag platform) usually ships 3-26 days
35a 174-1074 Vacuum dust bag (OBSOLETE) $214.78 1 (standard) usually ships 3-9 days
35b 174-8124 Vacuum dust bag (OBSOLETE) Call for price 1 (optional) usually ships 1-5 days
36 174-2406 Bolt 1/4 - 20 x 1 3/4 $0.86 4 usually ships 1-5 days
