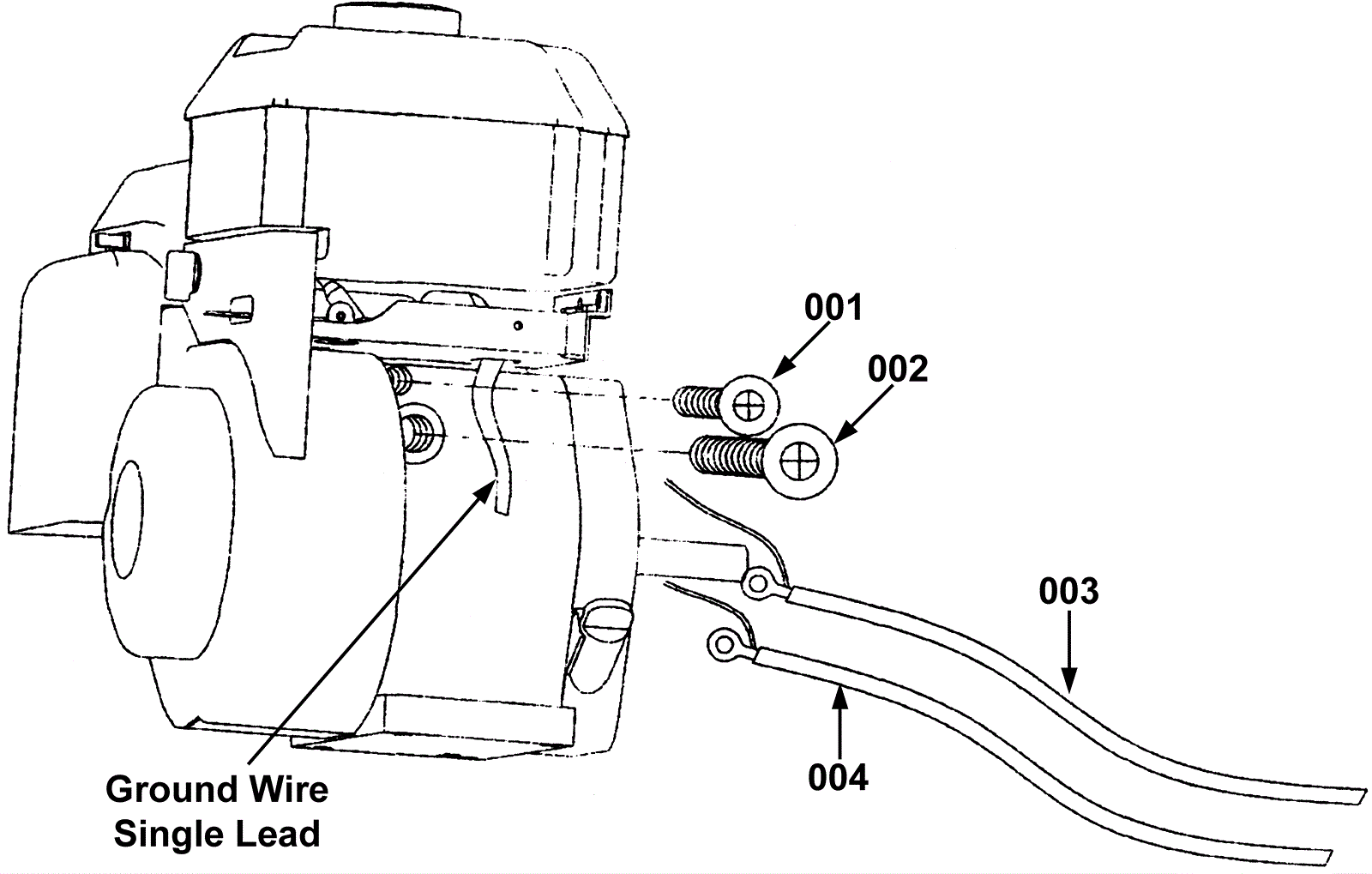

PRKRVAC-35 PV0110BT Briggs and Stratton Safety Interloc Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 Used only on 6.5HP ships same day
002 174-1391 Screw 5/16-18 x 1/2 mc $0.97 Used only on 10HP usually ships 4-14 days
003 174-2849 Safety interlock Call for price Fan usually ships 1-5 days
004 174-1044 Safety switch (Honda) Call for price Bag usually ships 1-5 days
