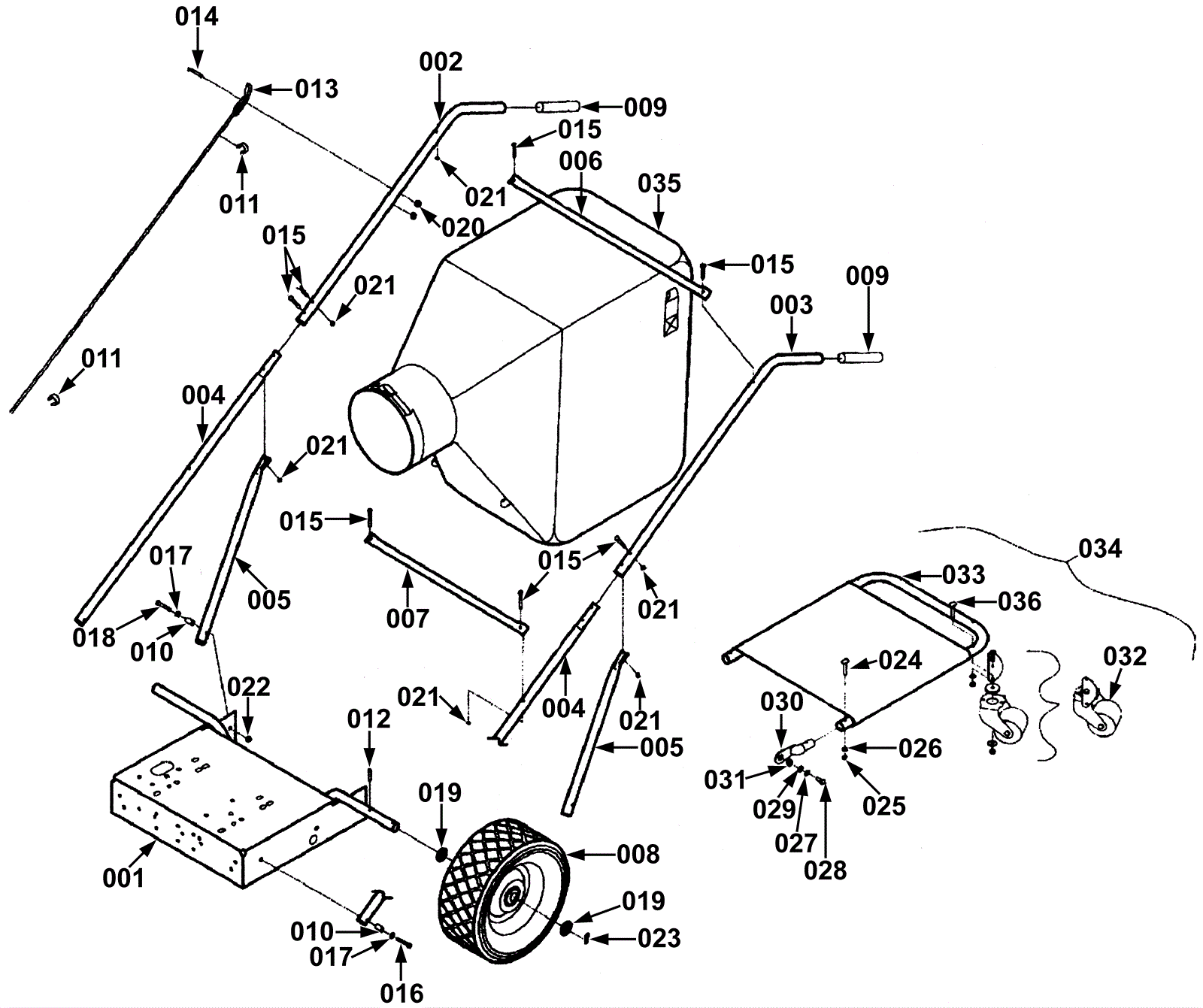

PRKRVAC-35 PV0110BT Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-1053 Chassis weldment Call for price 1 usually ships 1-5 days
002 174-1054 Right upper handle Call for price 1 usually ships 1-5 days
003 174-1055 Left upper handle Call for price 1 usually ships 1-5 days
004 174-1056 Lower handle Call for price 2 usually ships 1-5 days
005 174-1057 Handle back brace Call for price 2 usually ships 1-5 days
006 174-1058 Upper cross brace Call for price 1 usually ships 1-5 days
007 174-1059 Lower cross brace Call for price 1 usually ships 1-5 days
008 174-1060 Wheel assembly $228.68 2 usually ships 1-5 days
009 174-0864 Black handle grip Call for price 2 usually ships 1-5 days
010 174-1061 Insert Call for price 4 usually ships 1-5 days
011 174-1062 Snap-on clamp $1.32 4 usually ships 1-5 days
012 174-0971 Roll pin 3/16 x 1 1/2 $0.95 2 usually ships 1-5 days
014 999-1027 Screw 10-24 x 1 1/4 round head phillips stainless steel $0.99 2 usually ships 1-5 days
015 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 8 ships same day
016 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
017 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
018 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated $0.54 2 ships same day
019 999-0630 Washer 3/4 SAE flat $0.99 4 ships same day
020 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
021 999-0190 Nut 1/4-20 hex plain finish $0.99 8 ships same day
022 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
023 174-1066 Cotter pin Call for price 2 usually ships 1-5 days
024 174-2414 Bolt 1/4-20 x 1 1/2 contour head $0.86 2 usually ships 1-5 days
025 999-0190 Nut 1/4-20 hex plain finish $0.99 6 ships same day
026 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
027 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
028 174-2408 Bolt 5/16-18 x 1 #5 hex head $0.95 2 usually ships 1-5 days
029 174-2416 Washer special $0.81 2 usually ships 1-5 days
030 174-1777 Tubing end cap $12.24 2 usually ships 4-14 days
031 174-1069 Spacer Call for price 2 usually ships 1-5 days
032 N/A Not available Call for price 1 (Caster and plate assembly) usually ships 3-26 days
033 174-1071 Frame and bag platform Call for price 1 usually ships 1-5 days
034 N/A Not available Call for price 1 (Bag platform) usually ships 3-26 days
035a 174-1074 Vacuum dust bag (OBSOLETE) $214.78 1 Standard usually ships 3-9 days
035b 174-8124 Vacuum dust bag (OBSOLETE) Call for price 1 Optional usually ships 1-5 days
036 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
