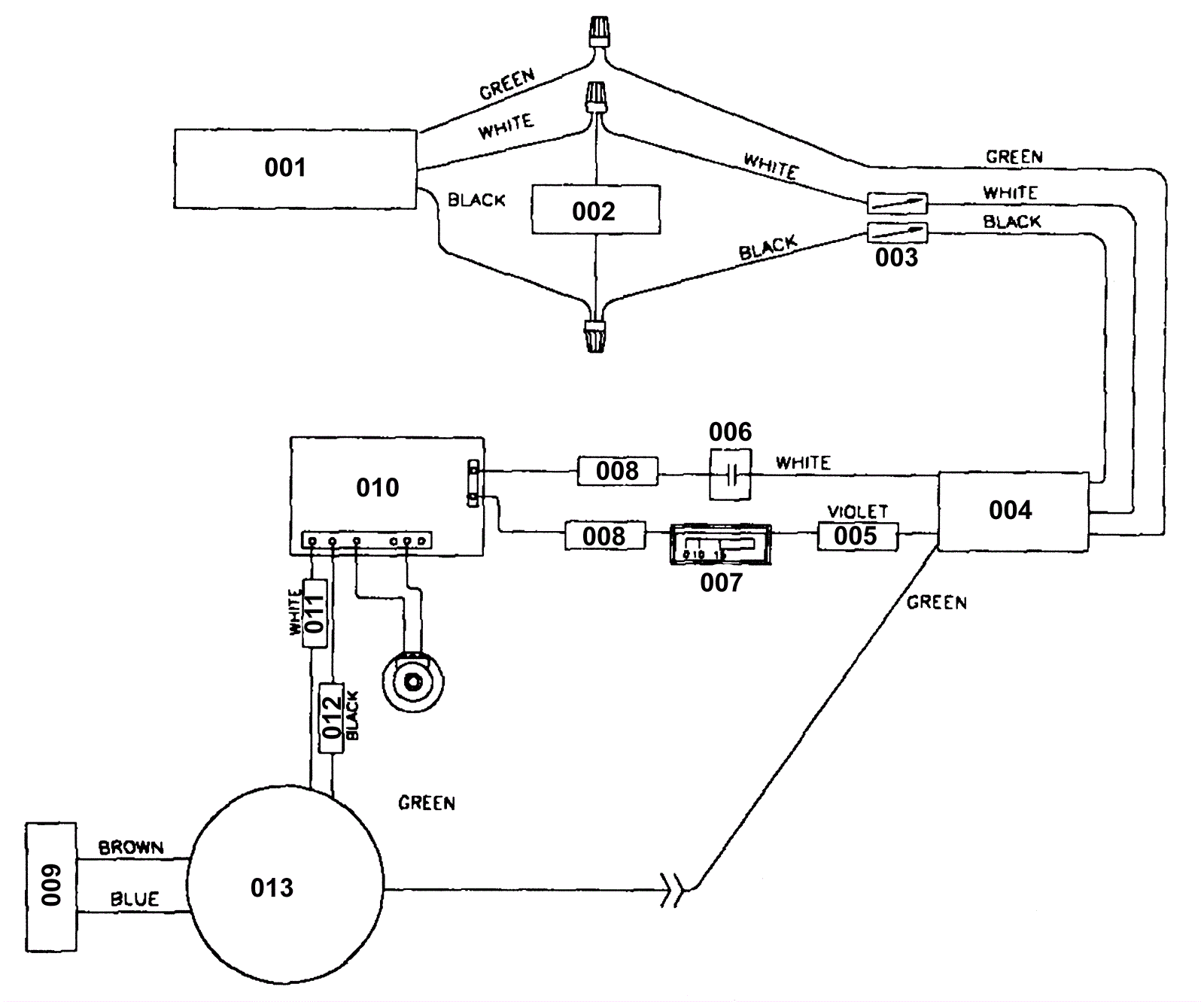

M-24000-00 Wiring Diagram 115V Variable Speed

#PartDescriptionPriceReqNotesAvailability
001a 174-4020 14/3 power cord 50 foot $192.44 1 usually ships 12-16 days
001b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
002 174-5128 115V indicator light $13.64 1 usually ships 12-16 days
003 174-4024 Switch $27.25 1 usually ships 12-16 days
004 174-5127 Handle cord $80.78 1 usually ships 1-5 days
005 174-5146 Wire assembly violet 5 inch Call for price 1 usually ships 1-5 days
006 174-5059 Circuit breaker 20 amp (push button) $5.70 1 ships same day
007 174-5147 25 amp meter with clip $89.11 1 usually ships 12-16 days
008 174-5152 Wire assembly black/yellow 12 inch $1.28 1 usually ships 1-5 days
009 174-3083 Indicator light assembly $23.11 1 usually ships 12-16 days
010 174-5090 Triac control 120V (OBSOLETE) Call for price 1 usually ships 12-16 days
011 174-5153 Wire assembly white 8 inch $1.05 1 usually ships 1-5 days
012 174-5154 Wire assembly black 5 inch $1.05 1 usually ships 1-5 days
013 174-5061 Motor 1.5HP 115V $826.33 1 usually ships 1-5 days
