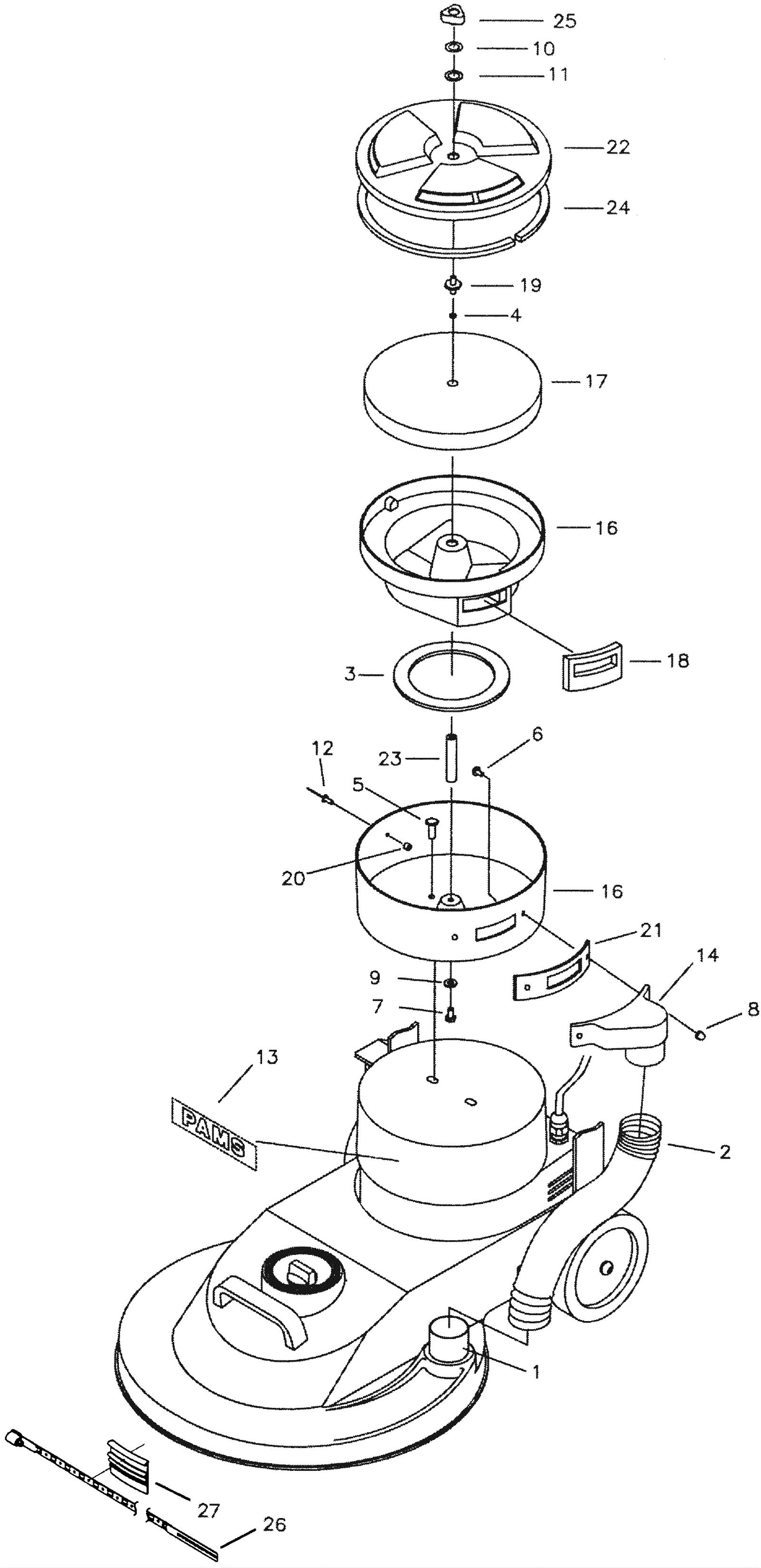

Dust Control Option

#PartDescription ReqNotesAvailability
1 174-5102 Dust tube 1
2 174-5103 Dust hose 1
3 174-5104 Gasket 1
4 174-3215 O-ring 1
5 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated 2
6a 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 2
6b 174-5106 Screw 10-32 x 3/8 machine 2
7 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 1
8a 999-0086 Nut 10-32 nylon insert lock zinc plated 2
8b 999-0961 Nut 10-32 acorn nickel plated 2
9 999-0016 Washer 1/4 flat plain finish 1
10 174-5159 Washer 33/64 x 1/64 wave 1
11 999-0855 Washer 9/16 SAE flat 1
12 174-5108 Rivet 3/16 x 1/4 pop 1
13 174-5266 PAMS Decal 1
14 174-5111 Hose Fitting 1
15 174-5112 Dust Collection Tray 1
16a 174-5769 Filter housing 1
16b 174-5769 Filter housing 1
17 174-5113 Filter Pad 1
18 174-5114 Filter Gasket 1
19 174-5115 Threaded Pin Retainer 1
20 174-5116 Bushing .196 x .312 x .265 1
21 174-5117 Dust Collection Tray Gasket 1
22 174-5118 Filter Housing Cover 1
23 174-5792 Spacer Threaded Plated 1
24 174-5192 Gasket (sold by the foot) 38 inch
25 174-3084 Knob 1/4-20 1
26a 174-5044 Clamp band assembly 17 inch 1
26b 174-5045 Clamp band assembly 20 inch 1
27a 174-5047 Dust skirt 20 inch 1
27b 174-5047 Dust skirt 20 inch 1
N/S 174-5110 Pad pressure decal 1
