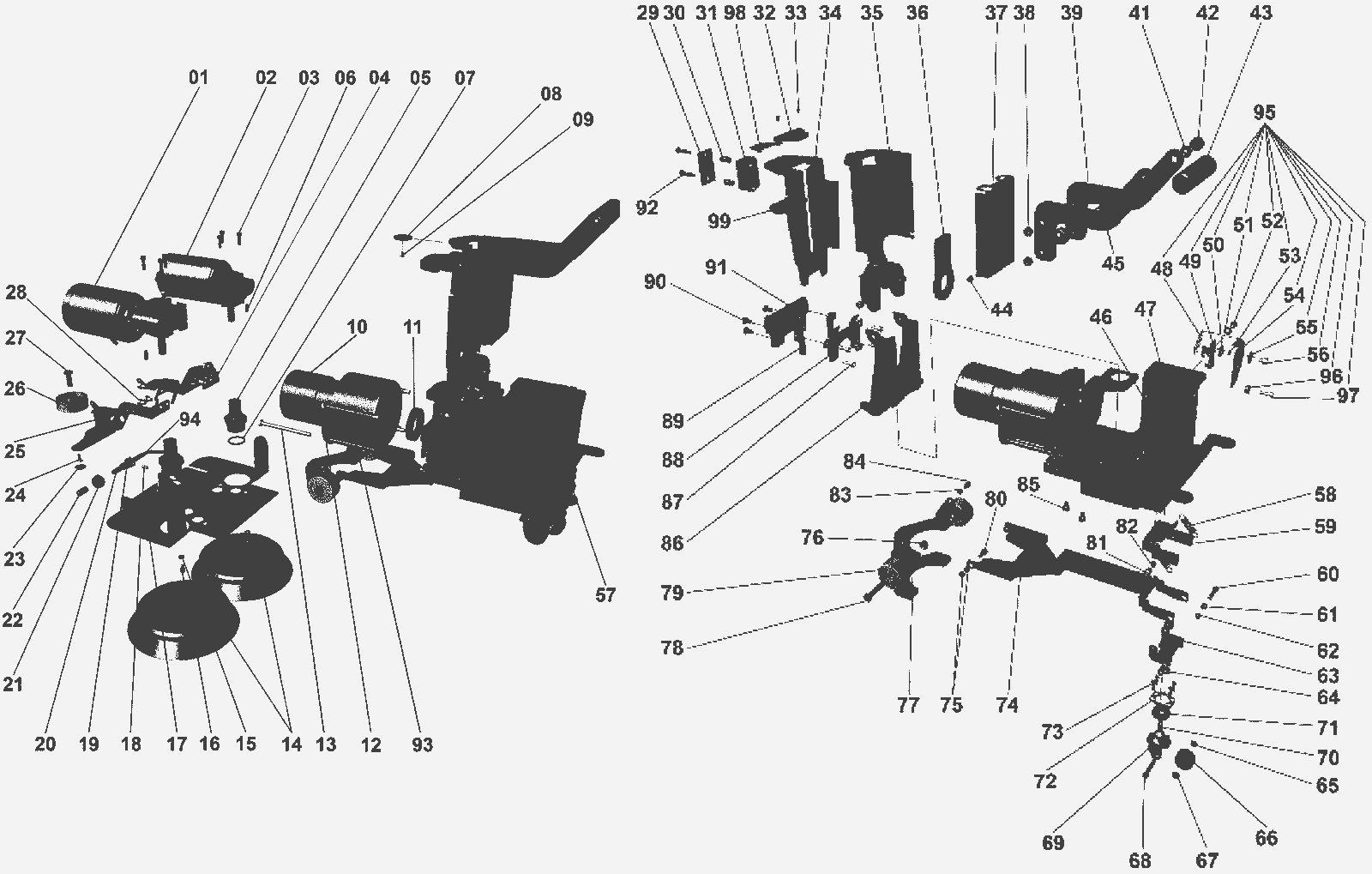

Chassis Assembly

#PartDescription ReqNotesAvailability
01 174-9355 Left brush motor 1
02 174-9356 Right brush motor 1
03 174-9357 Screw 6
04 174-9358 Right wheel support 1
05 274-9825 Brush coupling 2
06 174-9359 Shaft key 2
07 174-9307 O-ring 1
08 174-9360 Magnet 1
09 174-9361 Screw 1
10 274-9837 Vacuum motor kit 1
11a 274-9838 Gasket kit 1 (EZ MOP 360 and Mircro Scrubber) (before 02.2021)
11b 274-9946 Gasket kit 1 (EZ MOP 360) (after 02.2021)
12 174-9362 Vac motor plate 1
13 174-9363 Screw 4
14a 274-9826 Brush PPL 170/200 2
14b 174-9364 Brush 2
14c 174-9365 Brush pad holder 2
14d 174-9366 Tynex brush 2
15 174-9367 Washer 4
16 174-9337 Screw 4
17 174-9368 Protection plate 1
18 174-9369 Screw 2
19 174-9370 Water hose brush 2
20 174-9371 Hose nozzle 2
21 174-9372 Ring nut 2
22 174-9373 Hose cap 2
23 174-9314 Screw Cap 2
24 174-9374 Screw 2
25 174-9375 Left wheel support 1
26 174-9376 Adjusting wheel 2
27 174-9377 Bumper wheel shaft 2
28 174-9337 Screw 6
29 174-9378 Cover plate 1
30 174-9379 Bush 6x8x15, 5 2
31 174-9380 Sled 1
32 174-9381 Magnet plate 1
33 174-9361 Screw 2
34 174-9383 Handle lock 1
35 174-9384 Handle support 1
36 174-9385 Reinforced plate 1
37 174-9386 Support cover 1
38 174-9322 Ring nut 2
39 174-9387 Handle plate 2
40 174-9388 Washer 4
41 174-9389 Ring nut 1
42 174-9390 Nut covering 2
43 174-9391 Handle 1
44 174-9392 Ring nut 2
45 174-9393 Screw 1
46 174-9394 Screw 2
47 174-9395 Chassis 1
48 174-9404 Spring 1
49 174-9397 Hook lever support 1
50 174-9398 Washer 1
51 174-9399 Washer 1
52 174-9337 Screw 1
53 174-9400 Spring bush 1
54 174-9401 Hook lever 1
55 174-9398 Washer 1
56 174-9337 Screw 1
57 174-9403 36V Battery pack 1
58 174-9404 Spring 2
59 174-9405 Spring support 1
60 174-9406 Screw 2
61 174-9322 Ring nut 2
62 174-9338 Bush 6x8x4,6 2
63 174-9407 Rotating support 1
64 174-9408 Support pivot bush 1
65 174-9409 Ring nut 1
66 174-9410 Wheel D=30 1
67 174-9411 Spacer pivot bush 1
68 174-9412 Screw 1
69 174-9413 Caster wheel support 1
70 174-9414 Screw 1
71 174-9415 Bearing 1
72 174-9416 Bearing plate 1
73 174-9417 Screw 4
74 174-9418 Connection lever 1
75 174-9338 Bush 6x8x4,6 4
76 174-9389 Ring nut 1
77 174-9420 Front plate 1
78 174-9421 Screw 2
79 174-9422 Wheel D=50 2
80 174-9423 Screw 2
81 174-9406 Screw 2
82 174-9338 Bush 6x8x4,6 2
83 174-9338 Bush 6x8x4,6 2
84 174-9337 Screw 2
85 174-9425 Screw 4
86 174-9426 Main support 1
87 174-9357 Screw 4
88 274-9841 Handle fixing door 1
89 174-9428 Side guide 2
90 274-9839 Screw 4
91 274-9840 Handle guide support 1
92 174-9429 Screw 2
93 174-9371 Hose nozzle 4
95 274-9947 Hook assembly 1 (EZ MOP 360) (after 02.2001) (includes 48-56 and 95-97)
96 N/A Not available 1 (EZ MOP 360) (after 02.2001) (bearing) (only available in kit)
97 N/A Not available 4 (EZ MOP 360) (after 02.2001) (screw) (only available in kit)
98 274-9948 Locking adhesive 1 (EZ MOP 360) (after 02.2001)
99 N/A Not available 1 (EZ MOP 360) (after 02.2001) (gasket) (only available in kit)
