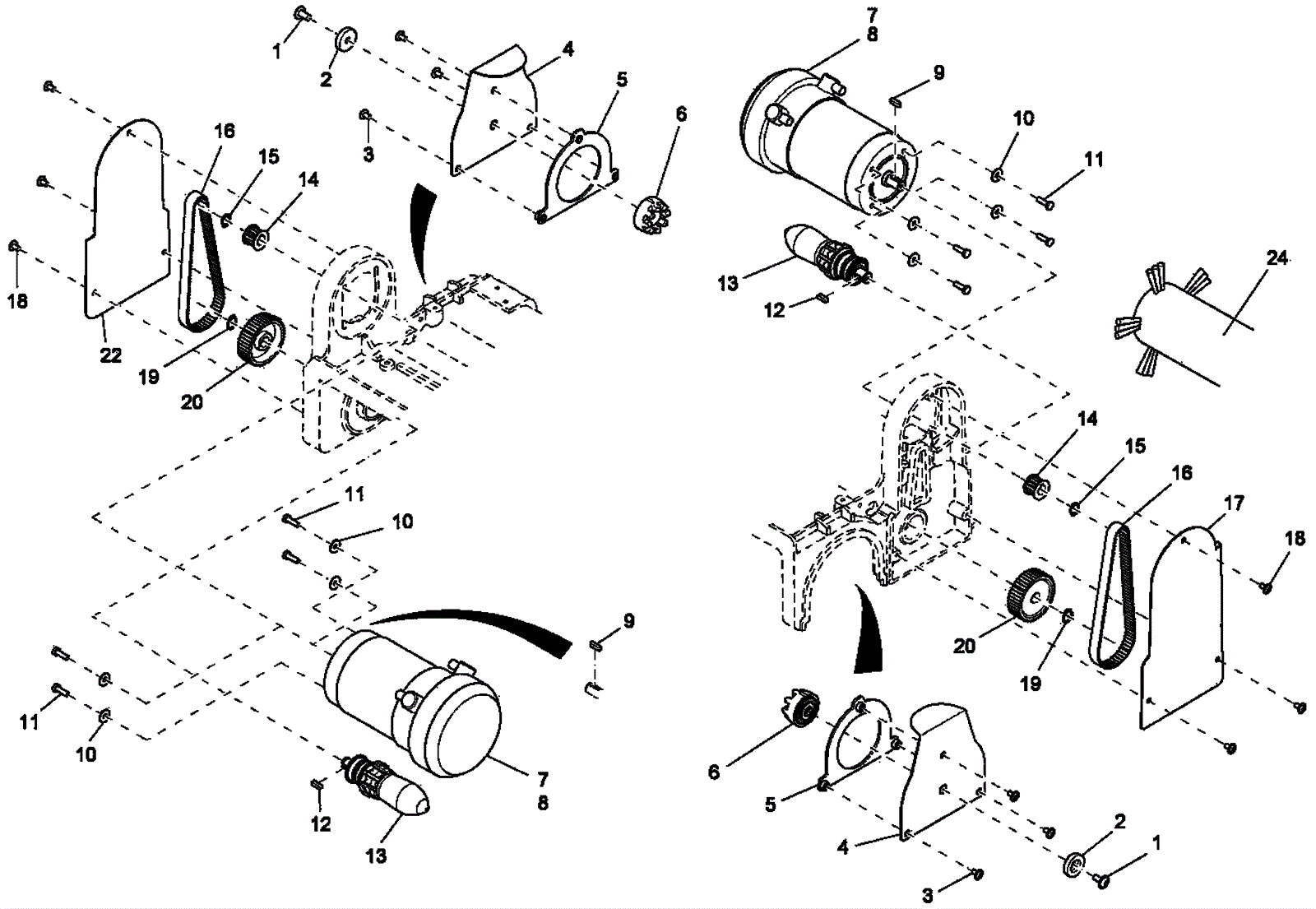

E24 Scrub Deck Assembly Cylindrical Assembly - 3

#PartDescriptionPriceReqNotesAvailability
1 174-8919 Screw M8 x 1 1/4 x 16 flanged stainless steel $2.75 2 usually ships 1-5 days
2 374-2855 WASHER $9.55 2 usually ships 1-5 days
3 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 6 ships same day
4 274-3729 SIDE COVER $70.81 2 usually ships 1-5 days
5 274-5788 CENTERING BEND $85.02 2 usually ships 1-5 days
6 274-3076 END SUPPORT BEARING ASSEMBLY $69.03 2 usually ships 12-16 days
7 174-7223 Motor $848.11 2 usually ships 12-16 days
8 274-8721 SET (4PC.) CARBON BRUSH $430.51 4 usually ships 1-5 days
9 274-5211 FEATHER KEY $1.10 2 usually ships 1-5 days
10 999-1261 Washer M6 flat stainless steel $0.99 8 ships same day
11 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 8 ships same day
12 374-1973 FITTING KEY $1.10 2 usually ships 12-16 days
13 274-8107 CARRIER, CPL. $262.13 1 usually ships 1-5 days
14 274-2427 TOOTHED BELT PULLEY $24.98 2 usually ships 1-5 days
15 274-0638 CIRCLIP $4.96 2 usually ships 1-5 days
16 274-3398 TOOTHED BELT $23.16 2 usually ships 12-16 days
17 274-4303 SHEET METAL, RIGHT $91.90 1 usually ships 1-5 days
18 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 6 ships same day
19 274-0637 CIRCLIP $1.10 2 usually ships 12-16 days
20 274-5429 TOOTHED BELT PULLEY $57.72 2 usually ships 1-5 days
22 274-4106 SHEET METAL L.H. $51.37 1 usually ships 1-5 days
24a 274-9544 BRUSH-MEDIUM DUTY (SP) 7022 $548.51 1 usually ships 1-5 days
24b 274-9230 BRUSH-LIGHT DUTY (SP) 7021 (SET OF 2) $509.71 1 usually ships 1-5 days
24c 274-9545 BRUSH-HEAVY DUTY (SP) SET OF 2 $699.24 1 usually ships 1-5 days
N/S 174-7224 Wire harness w13 $52.43 1 usually ships 12-16 days
N/S 174-7225 Wiring harness w14 $51.90 1 usually ships 12-16 days
